Fiber Optic Extender User Manual
Model: CV-F01-TX

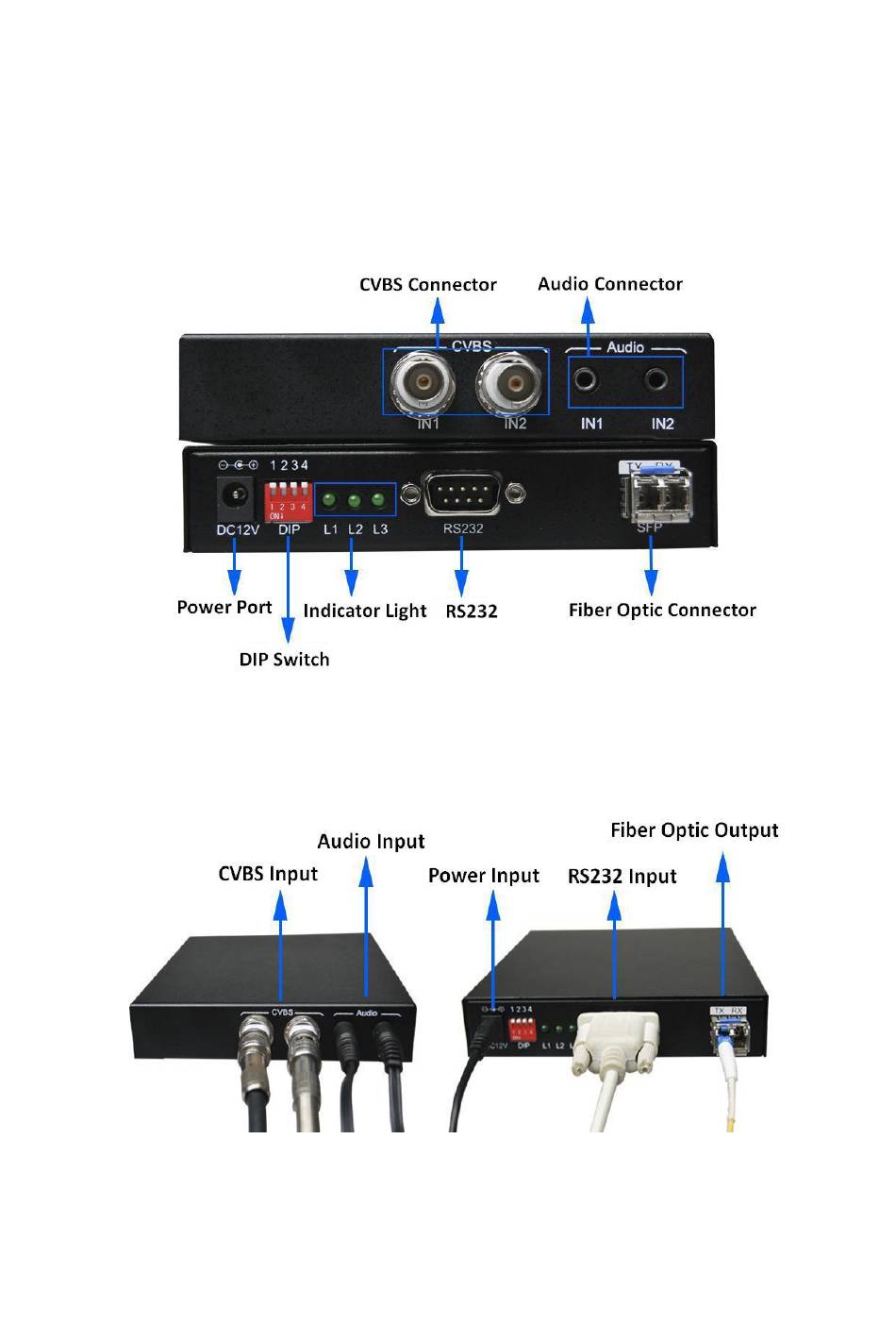

1. I/O Connectors

Figure 1 CV-F01-TX Fiber Optic Transmitter I/O Connectors

2. Connection introduction

Figure 2 CV-F01-TX Fiber Optic Transmitter Connection
Note: Please connect one single-mode optical fiber to the TX port in the fiber optic connector.

3. DIP Switch

Dial up is "OFF", the corresponding number is "1"; dial down is "ON", the corresponding
number is "0".
DIP switch operating instructions as shown in Table 1. And the DIP switch
The
CV-F01-TX User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-F01-TX and is the answer not in the manual?

Questions and answers

Summary of Contents for 4KDVB CV-F01-TX

  • Page 1 Fiber Optic Extender User Manual Model: CV-F01-TX 1. I/O Connectors Figure 1 CV-F01-TX Fiber Optic Transmitter I/O Connectors 2. Connection introduction Figure 2 CV-F01-TX Fiber Optic Transmitter Connection Note: Please connect one single-mode optical fiber to the TX port in the fiber optic connector.
  • Page 2 Table 1 DIP switch operation instruction Item Description Function To set output mode and resolution. Before applying power to the CV-F01-TX or Applying Condition Dial both switch 1 during the service of the item. and switch 2 Dialing combination of the DIP switch and...
  • Page 3 7. OSD Setting Step 1: Connect the CV-F01-TX to the control computer Connect the CV-F01-RX to the control computer by using the DB9 pin RS232 female cross serial line with the item.
  • Page 4 Step 4: Set the color of image. Step 5: Set the location and the size of image. Step 6: Select the magnification. Step 7: Click the Download button and the setting will come into effect immediately. The details as shown in figure 5. CV-F01-TX User Manual...
  • Page 5 Step 4: Set the color of text. Step 5: Set the location and size. Step 6: Select the magnification. Step 7: Click the Download button and the setting will come into effect immediately. The details as shown in figure 6. CV-F01-TX User Manual...
  • Page 6  The crossover serial cable with DB9 pin female connector is needed. 8. Parameter Setting The CV-F01-TX is available in audio input selection, image display setting and port parameter setting through the configuration tool.  Audio input is available in Input 1 or input 2.
  • Page 7 If the control mode is Dial Switch, the resolution of the item can be configured by DIP switch directly.  The important and commonly used OSD information can be saved to the local computer software to facilitate later use through the configuration tool. CV-F01-TX User Manual...
