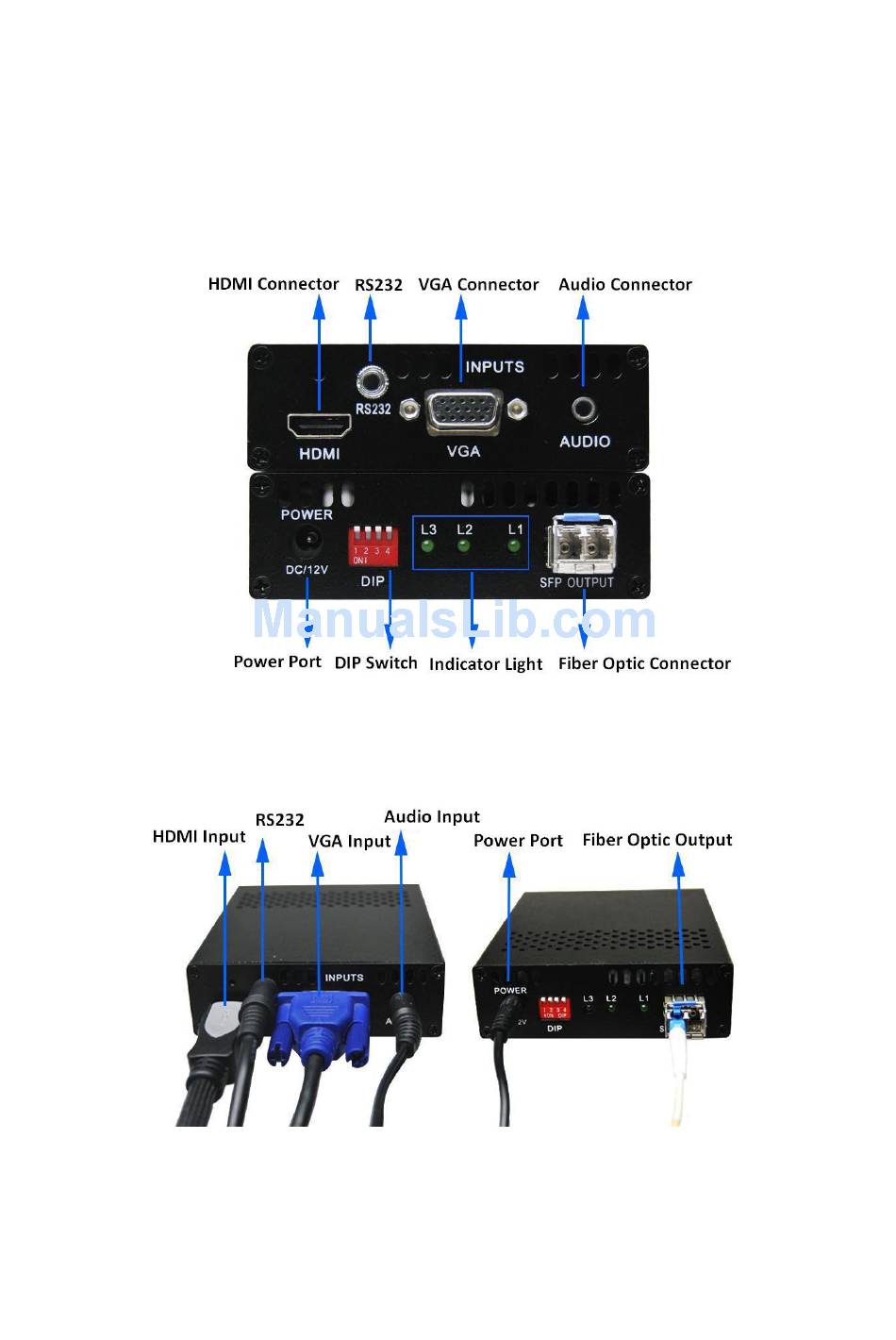

Fiber Optic Extender User Manual Model: HD-F01-TX 1. I/O Connectors Figure 1 HD-F01-TX Fiber Optic Transmitter I/O Connectors 2. Connection Introduction Figure 2 HD-F01-TX Fiber Optic Transmitter Connection Note: Please connect one single-mode optical fiber to the left port in the fiber optic connector.
Page 2
Item Description Function Auto-correct switch when VGA input. Applying The HD-F01-TX is in service and the input mode is Condition VGA. If the initial switch state is “ON”, dial it to “OFF” Dial Switch 1 first and then switch it to “ON” quickly (within 1s).
Page 3
4. Indicator Light Table 2 Indicator light and signal state Light State L1 on L2 on L3 flash The HD-F01-TX Description HDMI Input VGA Input works normally. 5. Supported Resolutions The supported resolutions of HDMI/VGA transmission mode as shown in table 3 and table 4 respectively.
Page 4
8. OSD Setting Step 1: Connect the HD-F01-TX to the control computer by using serial cable that comes with the item. (The serial cable contains one 3.5 mm ear jack male connector and one DB9 pin female connector.) Step 2: Put the CD into the control computer. Decompress the configuration tool folder that burned in the CD and install the tool.
Page 5
Step 3: Set the color of the image. Step 4: Set the location and the size of image. Step 5: Select the magnification. Step 6: Click the Download button and the setting will come into effect immediately. Details as shown in figure 5. User Manual HD-F01-TX...
Page 6
Step 3: Set the color of text. Step 4: Set the location and the size of image. Step 5: Select the magnification. Step 6: Click the Download button and the setting will come into effect immediately. Details as shown in figure 6. User Manual HD-F01-TX...
Page 7
Note: If OSD setting is not required, please uncheck the option which is in front of the Enable OSD. 9. Parameter Setting Parameter setting of the HD-F01-TX can help user select the control mode as well as the audio input mode according to their actual application requirements. Details as shown in figure 7 below.
Page 8
If you would like to check the current sate of the item, please click the Load button. If the control mode is Dial Switch, the resolution of the item can be configured by DIP switch directly. Important OSD information can be saved to the local computer through the configuration tool. User Manual HD-F01-TX...
