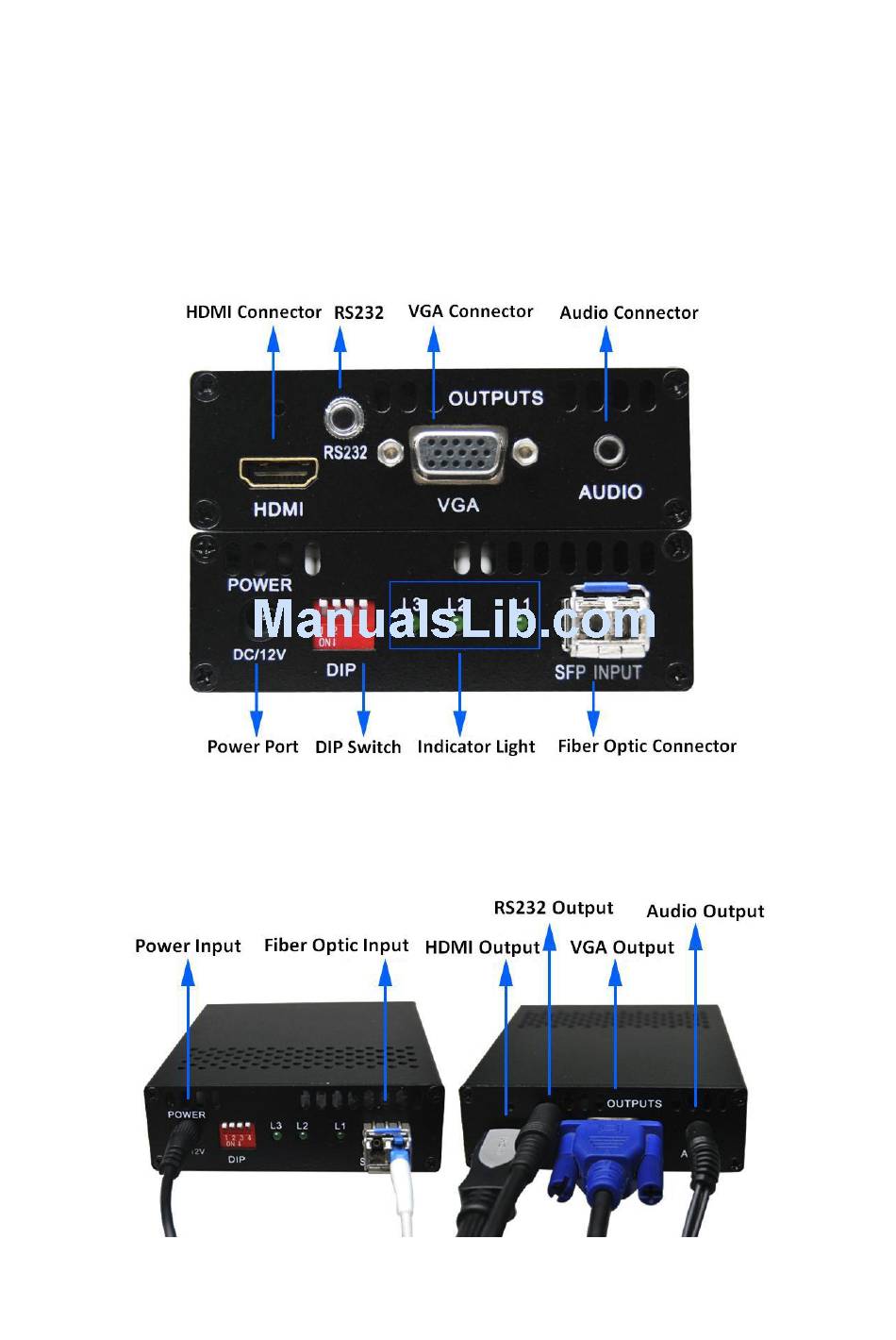

- Page 1 Fiber Optic Extender User Manual Model: HD-F01-RX 1. I/O Connectors Figure 1 HD-F01-RX Fiber Optic Receiver I/O Connectors 2. Connection introduction Figure 2 HD-F01-RX Fiber Optic Receiver Connection HD-F01-RX User Manual...
- Page 2 Please connect one single-mode optical fiber to the right port in the fiber optic connector. The HD-F01-RX support VGA , HDMI and audio signal output synchronously. 3. DIP Switch Dial up is “OFF”, the corresponding number is “1”; dial down is “ON”, the corresponding number is “0”.
- Page 3 Second, make all the configuration completed according to your specific needs. Third, applying stable 12V/2A power to both the transmitter and the receiver. 9. Parameter Setting The HD-F01-RX is available in resolution setting through the configuration tool. The setting HD-F01-RX User Manual...
- Page 4 Step 1: Connect the HD-F01-RX to the control computer by using the serial cable that comes with the item. Step 2: Put the CD into the control computer and decompress the configuration tool folder that burned in the CD and install the tool. (You can also ask the technical specialist for the configuration tool folder.)
- Page 5 If you would like to check the current status of the item, please click the Load button. If the control mode is Dial Switch, the resolution of the item can be configured by DIP switch directly. Important OSD information can be saved to the local computer through the configuration tool. HD-F01-RX User Manual...
