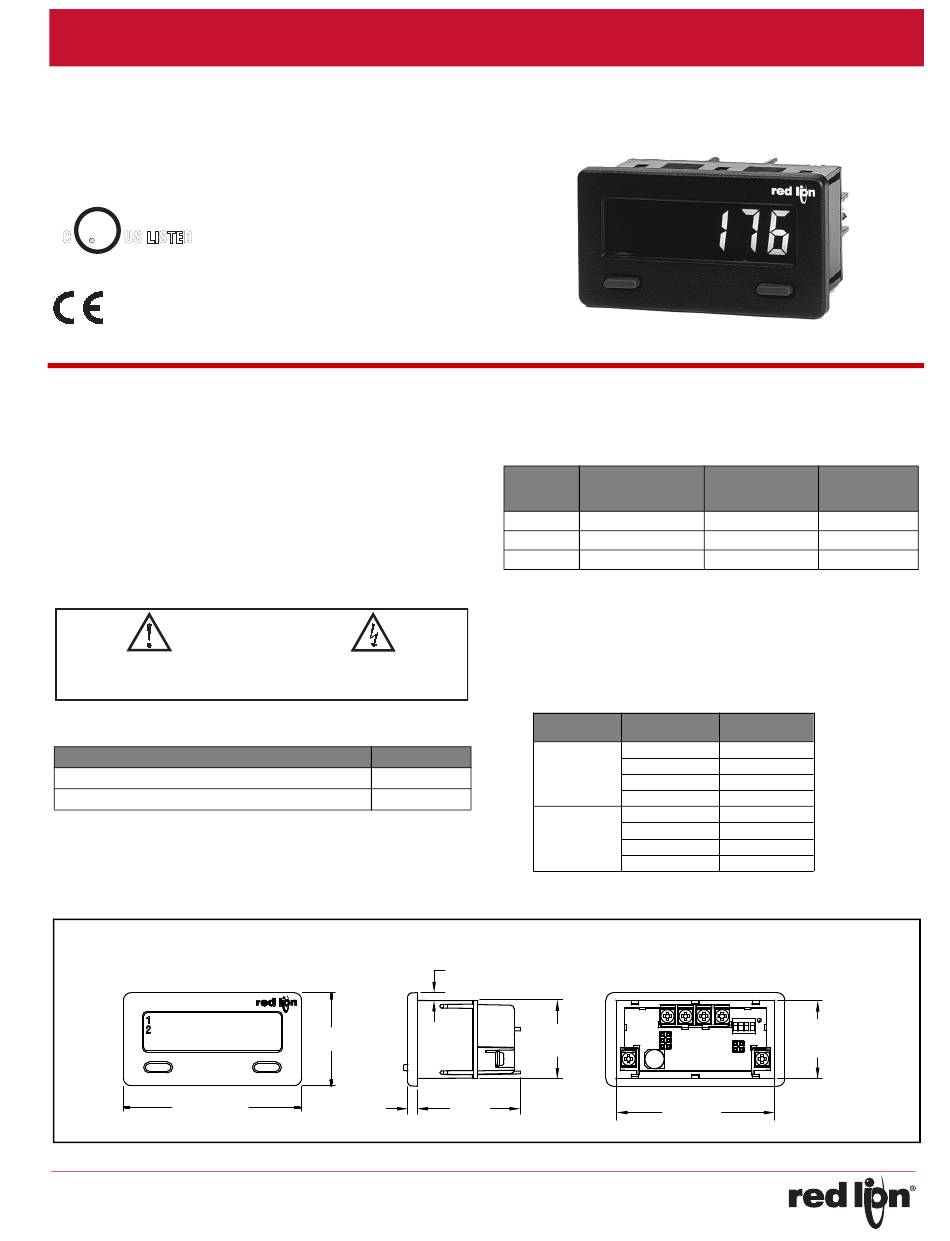

red lion CUB5 Installation Manual

Inside US: +1 (877) 432-9908
Outside US: +1 (717) 767-6511
www.redlion.net
Model CUB5 ‐ Miniature Electronic 8‐Digit Dual Counter and Rate Indicator
U L
C US LISTED
IND. CONT. EQ.
E137808
See the Red Lion website at www.redlion.net for full user
manual.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use this meter to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the meter.
CAUTION: Risk Of Danger.
Read complete instructions prior to
installation and operation of the unit.
ORDERING INFORMATION
DESCRIPTION
Dual Counter & Rate Indicator with Reflective Display
Dual Counter & Rate Indicator with Backlight Display
DIMENSIONS In inches (mm)
9876543. 2
SEL
2.95 (74.9)
Installation Guide
CAUTION: Risk of electric shock.
PART NUMBER
CUB5R000
CUB5B000
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
1.54 (39.1)
RST
0.15
(3.8)
SPECIFICATIONS
POWER: Input voltage range is +9 to +28 VDC with short circuit and
input polarity protection. Must use an RLC model MLPS or an NEC
Class 2 or Limited Power Source (LPS) rated power supply.
MODEL NO. DISPLAY COLOR
CUB5R000
CUB5B000 Red (max intensity)
CUB5B000 Green (max intensity
DISPLAY: 8 digit LCD 0.46" (11.7 mm) high digits
Counter A Display Range: -9999999 to 99999999
Counter B Display Range: 0 to 9999999 (postive count only)
Rate Display Range: 0 to 999999
ENVIRONMENTAL CONDITIONS:
Operating Temperature Range for CUB5R000: -35 to 75 °C
Operating Temperature Range for CUB5B000 depends on display
color and intensity level as per below:
Red Display
Green Display
Storage Temperature Range: -35 to 85 °C
0.13 (3.3)
1.29
(32.8)
1.71
(43.4)
-1-
Bulletin No. CUB5 INST-A
Drawing No. LP1063
Effective 2018-05-29
INPUT CURRENT
@ 9 VDC WITHOUT
CUB5RLY0
--- 10 mA
85 mA
95 mA
INTENSITY
TEMPERATURE
LEVEL
1 & 2 -35 to 75°C
3 -35 to 70°C
4 -35 to 60°C
5 -35 to 50°C
1 & 2 -35 to 75°C
3 -35 to 65°C
4 -35 to 50°C
5 -35 to 35°C
ON ECE
1.30
1 2 3 4
(33
+.025
2.68
-.000
+8
(68 )
-0
INPUT CURRENT
@ 9 VDC WITH
CUB5RLY0
30 mA
115 mA
125 mA
+.024
-.000
+6
)
-0
