- Page 1 Tobii Pro Nano Eye Tracker User’s Manual...
- Page 3 User’s manual Tobii Pro Nano Eye Tracker Version 1.0.1 11/2018 All rights reserved. Copyright © Tobii AB (publ) The information contained in this document is proprietary to Tobii AB. Any reproduction in part or whole without prior writ- ten authorization by Tobii AB is prohibited.
-
Page 5: Table Of Contents
Attaching and Detaching the Eye Tracker to Laptops and Tablets ..........4 Cleaning ..........................5 Disposing of Pro Nano ......................5 Setting up Pro Nano........................6 Setting up the Pro Nano Hardware ...................6 Installing Pro Nano Drivers ......................6 Configuring the Pro Nano Eye Tracker ..................6 4.3.1 Advice for Experienced Users ...................6... -
Page 7: Introduction

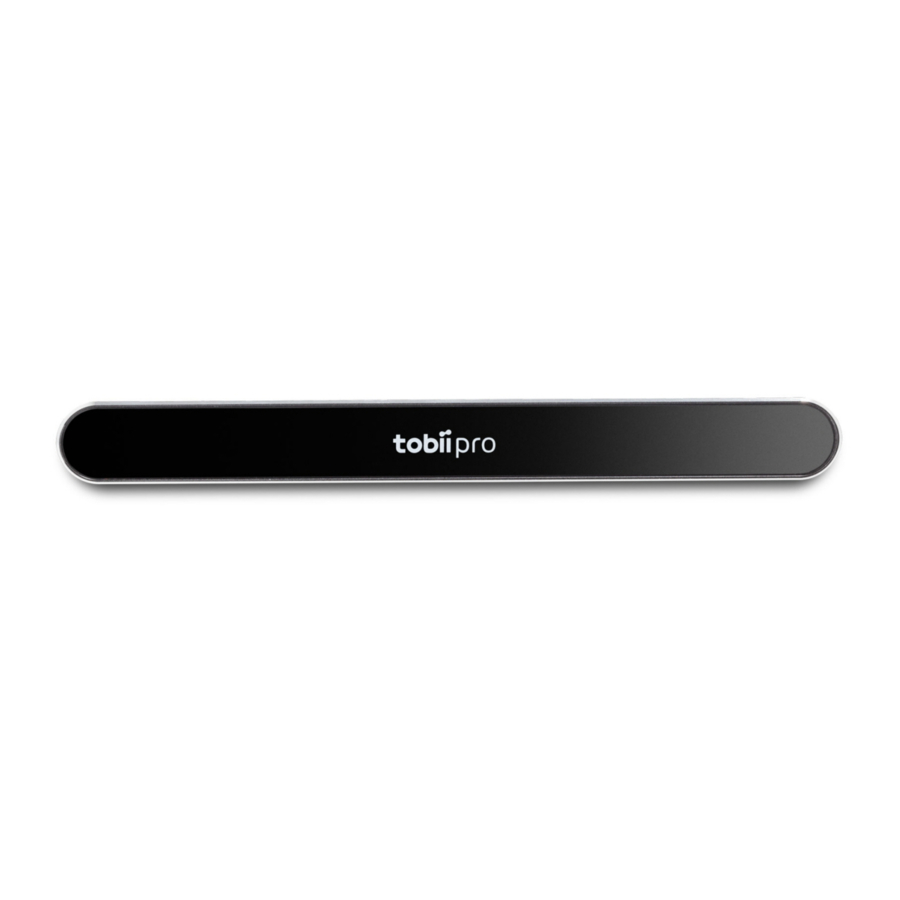

Tobii Pro Nano is our smallest, most light-weight research grade eye tracker, featuring the latest technology advancements from Tobii Pro. The Pro Nano device measures 170 mm (6.69’’) long and weights 59 grams (2.1 oz.), and uses a sampling rate of 60 Use Pro Nano on: •... -
Page 8: Recommended Screen Arrangements
Software Compatibility and Limitations Pro Nano is connected to a computer via a standard USB 2.0 interface. All eye tracking processing is done in the internal Eye Chip. -
Page 9: Hardware Package Content
Four mounting plates with non-permanent adhesive for attaching the eye tracker to a screen Available Accessories • Mobile Device Stand • Additional Mounting Brackets • Tobii Pro Tripod Stand 2 Hardware Package Content Tobii Pro Nano Eye Tracker User’s manual v.1.0.1 - en-US... -
Page 10: Product Care
Attaching and Detaching the Eye Tracker to Laptops and Tablets To ensure quality in eye tracking data, the Pro Nano hardware package include mounting plates that can be affixed to a laptop or a tablet. You can easily snap the eye tracker on and off the laptop or tablet by using the magnetic mounting plate. The mount- ing plate sticks to the frame with a special adhesive that doesn’t damage the underlying surface when the mounting plate is... -
Page 11: Cleaning
Scratches on the front surface of the eye tracker may impair its performance. Disposing of Pro Nano Don’t dispose of the Pro Nano eye tracker in general household or office waste. Follow your local regulations for disposal of electronic equipment. -
Page 12: Setting Up Pro Nano
Setting up Pro Nano You start setting up Pro Nano by unpacking the disassembled eye tracker. At the end of the setup, you have a verified installa- tion that is ready for use. Download Pro Nano’s setup documentation from the Tobii Pro website at www.tobiipro.com/pronano/getstarted... - Page 13 You can also choose to analyze the data only for the eye that successfully calibrated. For Pro Nano you get only one vector for the calibration results, thereby providing information on the average esti- mated accuracy, but not on the estimated precision.
-
Page 14: Start Experimenting
A fresh update notification is indicated by a tiny red bell on an empty Eye Tracker tile. You determine what firmware version you use in your connected Pro Nano(s) by installing the desired driver version in your com- puter. Use the Eye Tracker Manager’s “Install or Update Eye Trackers” functionality to check available releases. -
Page 15: Advanced Setups
Set up the projector and connect it to the laptop. Mount the Pro Nano eye tracker on a separate tripod and connect its USB cable to the laptop. Place the participant 45–85 cm from the eye tracker. Use the positioning guide in the Eye Tracker Manager to determine whether the eye tracker can detect the participant’s eyes. -
Page 16: Appendix A Pro Nano - Specifications
Gaze point Pupil diameter Validity code *Tobii Pro uses an extensive test method to measure and report performance and quality of data. The data quality test report provides detailed information. Download it at: https://www.tobiipro.com/pop-ups/metrics-report-nano/ ** For more information about output data and the supplementary data stream, download the Pro SDK documentation from Tobii Pro’s website: http://www.tobiipro.com/product-listing/tobii-pro-sdk/. -
Page 17: A2 Eye-Tracker Specifications
W. A USB 2.0 ports typically outputs 2.5 W. If, for some reason your computer USB 2 port doesn’t provide enough power to the eye tracker, the Pro Nano will not work. In those rare cases, we recommend connecting an external powered USB hub be- tween the computer and the eye tracker. -
Page 18: A4 Software Options
Tobii Pro Lab: https://www.tobiipro.com/product-listing/tobii-pro-lab/ Pro Nano is not compatible with Pro SDK version 1.5 or older, Eye Tracker Manager version 1.10 or older, nor Pro Lab version 1.98 or older. Pro Nano is not compatible with Tobii Studio. System requirements... -
Page 19: Appendix B Glossary
B = eye position (midpoint between the left and the right eye) and C = stimuli point. Appendix B Glossary Tobii Pro Nano Eye Tracker User’s manual v.1.0.1 - en-US... - Page 20 This includes half of the image exposure time, image read-out and transfer time, processing time and time to transfer the data sample to a client computer. Appendix B Glossary Tobii Pro Nano Eye Tracker User’s manual v.1.0.1 - en-US...
-
Page 21: Appendix C Safety Information
The Tobii Pro Nano should be mounted according to the instructions of the approved mounts used. Tobii AB or its agents are not liable for damage or injuries to a person or its property due to the Tobii Pro Nano falling from a mounted configuration. -
Page 22: C1.6 Environment
C1.6 Environment The Tobii Pro Nano system is designed for use in dry indoor environments. Avoid any exposure to direct sunlight as this will affect eye tracking quality and longer exposure can overheat the equipment. Avoid exposure to any liquids, gels, moist, rain, sweat or other damp materials or environments. - Page 24 . Illustrations and specifications do not necessarily apply to products and services offered in each local market. Technical specifications are subject to change without prior notice. All other trademarks are the property of their respective owners. Tobii Pro Support EUROPE / GLOBAL...
