PART #105312
OPERATOR' S MANUAL
PARTS CATALOG

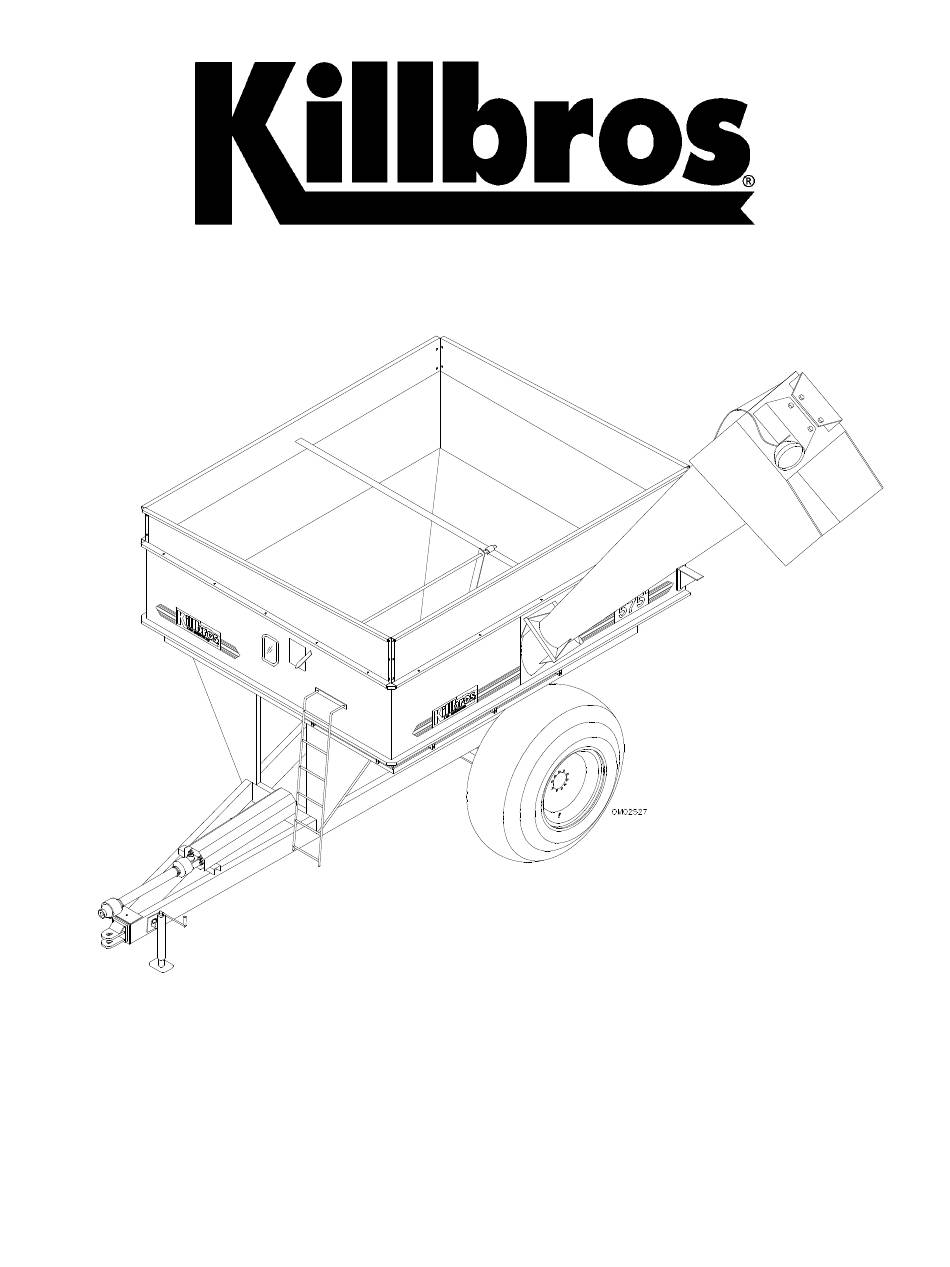

MODEL 575 GRAIN CART
(After Serial # K4-1907 thru D1898)
24325 St. Rt. 697W
DELPHOS, OHIO 45833
PHONE: 419-695-2060
FAX: 419-695-6875
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 575 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Killbros 575

  • Page 1 PART #105312 OPERATOR’ S MANUAL PARTS CATALOG MODEL 575 GRAIN CART (After Serial # K4-1907 thru D1898) 24325 St. Rt. 697W DELPHOS, OHIO 45833 PHONE: 419-695-2060 FAX: 419-695-6875...
  • Page 2: Table Of Contents

    Table of Contents ASSEMBLY INTRODUCTION......… . 3 ASSEMBLY… … … … … … … … … … .. SAFETY...........… .. 4 INSTALLATION OF HYD DRIVE..18 OPERATIONS INSTALLATION OF SCALE HITCH..… 19 ELECTRICAL HOOK-UP....… . 7 TRACTOR HOOK-UP.......… . 7 PARTS HYDRAULIC HOOK-UP....…...
  • Page 3: Introduction

    INTRODUCTION Killbros Grain Carts are engineered to meet today’ s challenging operating standards and the needs of yours. With a rugged design throughout, this unit will keep maintenance to a minimum. Keeping you busy with harvest and not repairs This unit is not just standard; it features a wide variety of options to meet your field practices. This unit offers various size bolt on axles for varying crop row widths and new tillage practices, with little time to install.
  • Page 4 It is said that, “ The best kind of a safety device is a careful operator.” We, at Killbros ask that you be that kind of operator.
  • Page 5 575 SAFETY DECALS (For part numbers see pg. 30)
  • Page 6: Safety

    SAFETY Keep hands, feet, clothing, and objects away from AVOID POSSIBLE INJURY moving parts. Always use safety precautions. Most accidents are a Do not grease equipment when in operation. result of failure to practice safety. Accidents cause lost time and suffering. Do not operate the Grain Cart DO NOT allow ANYONE to enter the box at any time, without reading this manual thoroughly.
  • Page 7: Operations

    Your Grain Cart is supplied with a seven-point SAE connector plug, which will adapt to the receptacle found on several new tractors on the market today. If not available, an SAE J S60A seven-point outlet socket can be purchased from your Killbros dealer (order #104838). SAE SEVEN POINT...
  • Page 8: Operation In Field

    If any one of these is not adjusted properly please read the SERVICE section outlined in the manual or contact your nearest Killbros dealer for further information. With everything in good operating condition, be sure to close flow control gate before use.
  • Page 9: Coupling The P.t.o

    Do not wear loose clothing when operating the PTO drive shafts, clutches, and freewheels are power take-off, or when near rotating equipment. designed for specific machine types and power requirements. Other models must not replace To avoid injury do not clean, adjust, unclog, or them.
  • Page 10: Lubrication

    1. Twist locking collar and simultaneously 2. Push locking pin and simultaneously push PTO drive shaft onto PTO shaft push PTO drive shaft onto PTO shaft until the locking device engages. until the locking device engages. QD Pin-Lock (Not Shown) Check to insure all the locks are secure before engaging...
  • Page 11: Assembling

    2. Spread collar to remove from tube. 1. Keep cone pressed downward and release collar tabs by pushing with a 3. Slide tube off the shaft. screwdriver. Push cone off tube. G. Assembling guard: 1. Grease collar groove and inner profile tube.
  • Page 12 A GOOD INSTALLATION REQUIRES THAT ALL LOAD CELLS BE PROPERLY INSTALLED WITH “ TOP” ACCURATELY POSITIONED. OPERATION TO INSURE + OR - ½% MAXIMUM ERROR, THE UNIT MUST BE USED AS A STATIONARY LOAD-OUT WEIGH HOPPER FROM BIN TO TRUCK, FOR EXAMPLE, THE GROUND MUST BE SMOOTH AND LEVEL WITH MAXIMUM 5”...
  • Page 13 Turn ON the scale: 1. Press [ON]. The ZERO / BALANCE will “ balance off” the dead load such as a trailer, bin, or platform weight. “ZERO” is displayed to show completion of A brief message will be displayed (such as the step and the scale is then placed in the The scale then selects the “HELLO”).
  • Page 14 NOTE: The scale is in GROSS mode if (Radio Control TR/TR4 Options: there is a flashing arrow pointing toward the Operation) The TR and TR4 options allow GROSS text just above the [NET / GROSS] the operator to remotely control the scale from a distance up to 100 feet away.
  • Page 15: Service

    bottom panel of the scale. Connect the load cell cables to the junction box as shown below. JUNCTION BOX LOAD CELL CABLE CONNECTIONS: Load Cell Connection: The indicator is designed to operate with strain gage load cells. The indicator will normally be supplied with a “...
  • Page 16: Auger System

    WHEEL NUTS Check all wheel nuts for tightness before first load. Failure to do so may damage wheel nut seats. Once seats are damaged, it will become impossible to keep nuts tight. Tighten nuts to 400 ft. Lbs. Retighten after first three loads and check periodically during first season of use. TIRE PRESSURE The following is to be used as a general guide for tire inflation.
  • Page 17 Some assembly is required before initial use the upper auger so that it is in the rest and operation. All Grain Carts come position, resting on the rest bracket located shipped without the upper auger, work light, to the back of the cart. Position auger, lining and hydraulic cylinder and hoses installed.
  • Page 18 For fully operational hydraulic drive unit 1. Follow steps Standard tractor must: assembly. - - be equipped with an optimum of a 30 2. Connect 15” hydraulic hose to ends of G.P.M. hydraulic system each elbow. - - has hydraulic hook-up of at least 4 ports. 3.
  • Page 19: Auger Components

    located behind indicator while drilling holes. 3. To secure weigh bar to hitch reattach hardware removed. 2. Indicator should be placed at eye level toward top of the panel for convenient, efficient use. (See Figure 5) JUNCTION BOX INSTALLATION 1. Install Junction Box on the backside of 3.
  • Page 20 102426 - Hairpin Clip Item Part # Description Item Part # Description 100804 U.V.A Screw 102427 Cylinder Pin w/ Clips 91144-162 1/4" x 1-1/2" Expansion Pin 103443 Pilot Check Valve 9389-115 1/2" x 5" Bolt 103439 51" Hydraulic Hose 100719 Comp.
  • Page 21: Flow Control Gates

    Item Part # Description Item Part # Description 102427 Cyliner Pin w/ Clips 91299-065 3/8" x 3-1/2" Gr. 8 Bolt 102426 Hairpin Clip 91144-162 1/4" x 1-1/2" Expansion Pin 101991 2" x 30" Hydraulic Cylinder 102703 Upper Indicator Linkage 102191 2" Hyd. Cyl. Repair Kit 9390-101 1/2"...
  • Page 22: Gear Box Diagram

    Item Part # Description Item Part # Description 9394-010 1/2" Hex Nut 9404-021 3/8" Lockwasher 9040-025 1/2" Lockwasher 102005 Gear Box 94119 1/8" Grease Fitting, 90 Deg. 102119 Outer Yoke, 1-3/8"-6 9405-088 1/2" Washer 102158 Cross Journal Assembly 102000 Bearing, 1-1/4" Pillow Block 102171 1-1/4"-5/16"...
  • Page 23 Item Part # Description Item Part # Description 102185 Output Shaft 102188 Gear (19 tooth) 102187 Cover 102189 Plug 102184 Taper Roller Bearing Ass'y 102183 Hub 102177 Oil Seal - Output Shaft 105490 Input Shaft (With Gear) 102190 Hex Bolt 102179 Oil Seal - Input Shaft 102180 Gasket 102181 Snap-Ring...
  • Page 24: Axle/Hub Components

    Item Part # Description Item Part # Description 101812 Bolt & Nut Clutch Spring 102161 Female Tube 102169 Pressure Plate - Clutch 102160 Roll Pin - Female Tube 102168 Inner Plate - Slip Clutch 102159 Yoke - Female Tube 102166 Lining - Slip Clutch 102173 Snap-Ring 102167 Friction Lining Support 102172 Grease Fitting...
  • Page 25: Scale Components

    Item Part # Description Item Part # Description 101033 3" Seal (CR30087) 101041 Hub Cap 92734 2-1/2" Bearing (39585) 92748 16 x 38 Wheel 101035 2-1/2" Cup (39520) 92749 18 x 36 Wheel 92457 Hub Stud (3/4"-16) 92413 20 x 26 Wheel 101042 Hub Ass'y w/Cups &...
  • Page 26 Item Part # Description Item Part # Description 103699 Complete Pkg.w/Clevis Hitch 91299-195 1"-8 x 6" HCS, Grade 8 105363 Complete Pkg.w/Spade Hitch 102694 2 1/8" Weigh Bar 9000948 Junction Box w/Cable 102657 Wire Holder 91257 5/16" Flg. Nut 9830-017 10/24" Nut 102696-4 Electronic Indicator 9403-024 10/24"...
  • Page 27: Sideboards

    Sideboards Item Part # Description 103884W Sideboard, 14" x 10' Rear Taper 103882W Right Sideboard, 6" x 12' 103988W 6" Corner Angle 103883W Sideboard, 14" x 10' Front Taper 91256 5/16" x 3/4" Flange Bolt 103880W 14" Corner Angle 91257 5/16"...
  • Page 28: Light Package

    Light Package Item Part # Description 103629 COMPLETE PACKAGE 103603 Work Light 103618 3/8" Mini Cord Clip 103600 Amber/Red Light (L.H.) 103617 Steel Body Clip 103599 Work Light Harness 104258 Main Harness 9000106 6" Plastic Tie 103601 Amber/Red Light (R.H.) 9523 1/4"...
  • Page 29: Miscellaneous

    Miscellaneous Item Part # Description Item Part # Description 9404-017 1/4" Lockwasher 103536 Hydraulic Hose, 156" 103458 Upper Hose Bracket 105013 Steel Body Clip (Small) 9394-002 1/4" Nut 102524* Swivel Hitch 9389-007 1/4" x 1-1/2" Bolt 102523 Hitch Coupler 102608 Glass Window 91299-155 3/4"...
  • Page 31: Decals

    Decals Item Part # Description 104420 Killbros 102615 Open/Close 96753 Farm Safety 95045 Danger "Electrical Lines" 95046 Disengage P.T.O. 96814 Danger "Do Not Enter" 100795 Tighten Lug Nuts 96812 Warning "Keep Clear" 93552 Danger "Auger" 104286 12" Arrow 104284 24" Stripe...
  • Page 32: Auxilary Hydraulic Drive Unit

    Auxiliary Hydraulic Drive Unit Item Part No. Description Item Part No. Description 105242 Complete Package 9390-443 5/8" x 10" HH Bolt 91383 3/4" Q/D Coupler 9405-100 5/8" Flat Washer 103347 Male Coupler 101958 5/16" x 5/16" x 2 1/2" Key 105170 Hydraulic Hose (15") 105265...
