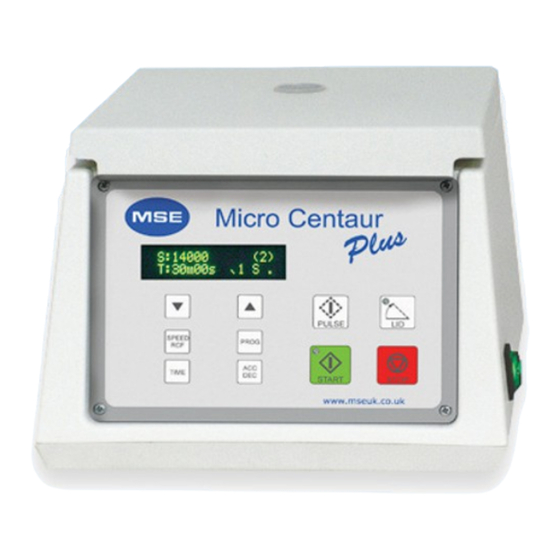

- Page 1 MicroCentaur Plus User Manual Please read this before use...
- Page 2 Thank you for buying a MSE Micro Centaur Plus. Please read this operating manual before using your centrifuge; it will provide you and your colleagues with useful information on all aspects of the equipment. As our customer, we would like to ensure that you are totally satisfied at all times. Do not hesitate to contact us.
- Page 3 ELECTRICITY SUPPLIES: Voltage and frequency MSE Centrifuges Ltd electrical apparatus is offered and labelled for one, or for a choice of two voltage ranges and, where necessary, different frequencies of mains supply. MSE Centrifuges Ltd does not accept any responsibility for...
- Page 4 Warranty This model is supplied with a 24-month warranty. The details of the warranty supplied with this unit are available at www.msecentrifuges.com. A copy is available upon request.
- Page 5 ELECTRICITY SUPPLY Before connecting this apparatus to the electricity supply, check the information given on the rating plate and ensure that; A) Your supply is single phase AC (alternating current) of the stated frequency with neutral nominally at earth potential. B) Your supply voltage is within the stated range.
- Page 6 Please dispose of centrifuge carefully! MSE adheres to the WEEE (Waste Electrical and Electronic Equipment) directive, which ensures that all electrical equipment is disposed of carefully with consideration to the environment. As a responsible manufacturer of quality laboratory equipment, MSE will recycle your equipment once its life expires and therefore reduce the amount of waste electrical equipment that is sent to landfill.
- Page 7 MSE Centrifuges Ltd Mytogen House, 11 Browning Road, Heathfield TN21 8DB Tel: +44 (0) 1435 517000 Fax: +44 (0) 1825 700471 Email: sales@msecentrifuges.com www.msecentrifuges.com EC DECLARATION OF CONFORMITY According to ISO 17050-1, ISO/IEC 17050-2 Type of device: Laboratory centrifuge Product name:...
-
Page 8: Table Of Contents
Contents 1. Description of the centrifuge General description 2. Technical data Accessories 2.1.1 Basic accessories 2.1.2 Optional accessories Manufacturer’s recommendations 3. Installation Unpacking of the centrifuge Location Connection to power supply Fuses 4. Safe working conditions General information about your centrifuge Operating personnel Safety devices 4.3.1... -
Page 9: Description Of The Centrifuge
1. DESCRIPTION OF THE CENTRIFUGE 1.1 General Description The MSE Micro Centaur plus is a laboratory micro centrifuge intended for in vitro diagnostic (IVD). Its construction ensures easy and safe operation, for a wide range of applications in laboratories engaged in routine medical analysis and biochemical research works. It is intended for separation of mixtures, suspensions and systemic fluids into constituents of different densities under influence of centrifugal force. -
Page 10: Technical Data
2. TECHNICAL DATA Manufacturer MSE Centrifuges Ltd Type MSB010.CX3.5 230v MSB010.CX3.1 110/120v Mains L1+N+PE V/Hz ±10% 230 V 50/60 Hz, 110 V 50/60 Hz Maximum power consumption 90 W Maximum capacity 52.8 ml Maximum rotational speed 14500 rpm Maximum acceleration... -
Page 11: Accessories
Disinfectants and cleaning agents generally used in medical care should be used in this centrifuge MSE recommend the use of Terminex 2 (available from Arrow Chemicals Ltd) Virkon (available from Antec International) -
Page 12: Installation
This will reduce any chance of condensation taking place in side the centrifuge. 3.3 Connection to the power supply Supply voltage has to be consistent with that given on the rating plate. MSE centrifuges come with a 2-metre long IEC lead fitted with plugs resistant to the dynamic loadings. -
Page 13: Safe Working Conditions
4. SAFE WORKING CONDITIONS 4.1 General information about your centrifuge The centrifuge has a rigid self-supporting structure. The case is made of Acrylonitrile Butadiene Styrene (ABS) plastic, the front and back is made of aluminium sheet. The rear of the lid is fixed in place by steel hinges and the front of the lid is locked with an electromagnetic lock, which stops the possibility of opening during centrifugation. -
Page 14: Hazards And Precautions
15. Do not use highly corrosive substances, which could cause material impairment and lower the mechanical properties of rotor. 16. Do not use plastic rotors and accessories that have not been recommend by MSE Centrifuges Ltd. 17. Only commercial plastic test tubes should be used. -
Page 15: Maximum Load
4.7 Maximum load In order to avoid overloading of the rotor the operator shall observe the maximum permitted load, which is specified on every rotor. Maximum permissible load is reached when all test- tubes are filled with the fluid with 1.2 g/cm density. -
Page 16: The Control Panel
3. Using the PULSE button to centrifuge for a short period of time. 4. Program up to 9 different operations. 3 different acceleration rates () to choose from. 3 different de-acceleration rates () to choose from. 5.2.1 The control panel The control panel and display is a completely sealed unit that shows key data in a digital format and allows the user to adjust speed, time, acceleration and braking rates. - Page 17 The LID key is used to open the lid of the centrifuge once it has come to a complete standstill. The LID key can only be used when the display reads “S .” This key cannot be used whilst the rotor is in motion.
-
Page 18: Description Of Sounds
When the centrifuge is first switched on, the digital display shows the model name and our web address for three seconds before reverting to the main display. Figure 1.3 MSE Centrifuges www.msecentrifuges.com The main display shows information about the centrifuge cycle. An example is shown below in Figure 1.4. -
Page 19: Switching The Centrifuge On
Users can switch between displaying the speed and RCF during the run by pressing the SPEED RCF key twice (see Figure 1.5) Figure 1.5 RC:14573 T = 99m00s 1 S The “=” sign indicates that the parameter can be changed. Note: The operator cannot change the parameters once the centrifuge is in motion. -
Page 20: Maintenance
During above mentioned works you must always wear safety gloves. MSE appointed engineers or workshop personnel should not touch the centrifuge unless it has been de-contaminated and a certificate is signed by some one in authority to that effect. -
Page 21: Servicing Your Centrifuge
The lid lock or lid spring could have failed. Contact MSE for repair. If any problems persist, please contact your local MSE service agent 7.2 Opening the lid manually It is possible to open the lid manually if there is a power failure or a fault develops with the centrifuge. -
Page 22: Repairing Your Centrifuge
MSE Centrifuges Ltd. The user will be responsible for the disinfection and decontamination of the unit prior to any service engineer visit or if unit is to be sent back to an MSE Centrifuges Ltd authorised work shop. - Page 23 Nomograph To determine the RCF (Relative Centrifugal Force) [r.p.m] Centrifuging radius [cm] R.C.F. (x "g") multiple of 20000 gravitational acceleration 15000 100000 14000 13000 Formula used for calculation of this 12000 nomogram : 11000 50000 40000 10000 R.C.F.= 11,18 * r * (n/1000) 9000 30000 where :...
- Page 24 Meet the rest of the family Brand new generation of centrifuges MICROCENTAUR R Refrigerated Micro Centrifuge 18000 rpm Maximum speed Maximum RCF 24270 xg Maximum Volume 24 x 2/1.5ml HARRIER General Purpose Centrifuge Ambient and Refrigerated Swing Out / Fixed Angle / Microplate Maximum speed 18000 rpm Maximum RCF...
