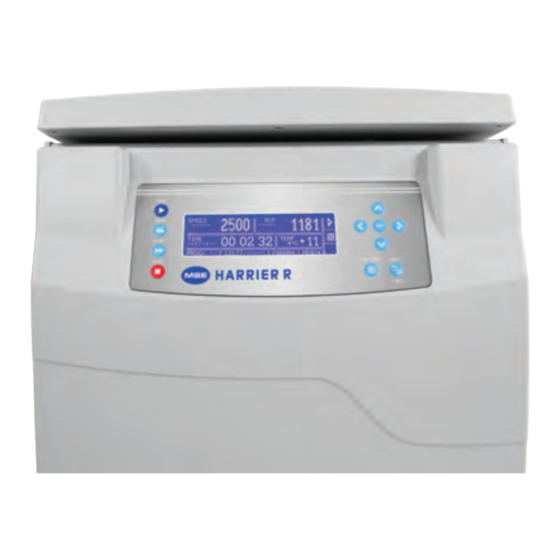

MSE HARRIER User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

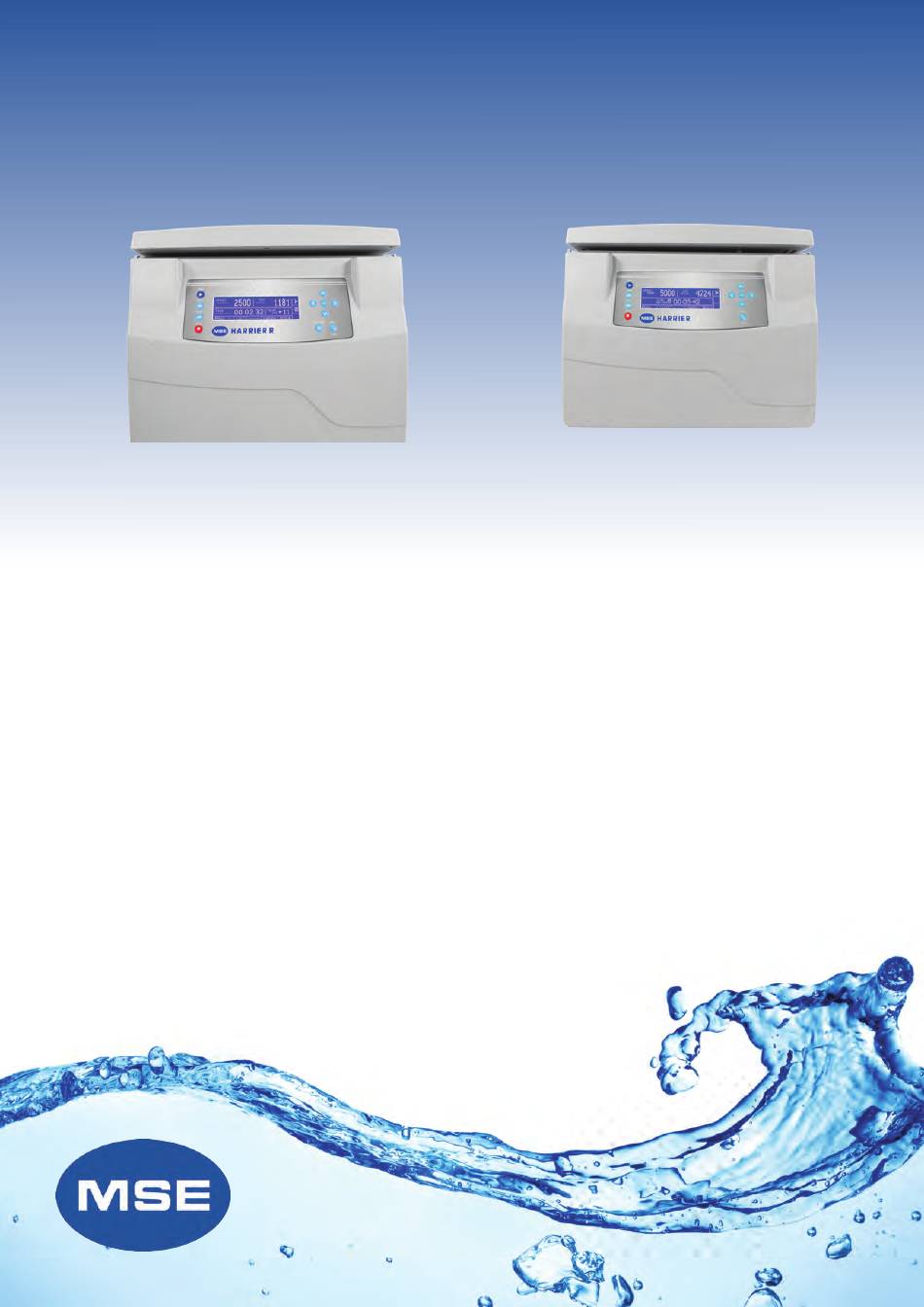

HARRIER
and
HARRIER R
User Manual
Please read this before use
MSB10352/2-56
MSB10352R/2-5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HARRIER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSE HARRIER

Summary of Contents for MSE HARRIER

  • Page 1 HARRIER HARRIER R User Manual Please read this before use MSB10352/2-56 MSB10352R/2-5...
  • Page 2 Risk of explosion with potential for severe injury or death as a consequence. This manual was prepared with special care. MSE CENTRIFUGES LTD may change the manual at any time and without notice because of improvements, typographical errors, inaccuracies of current information or improvements to facilities.

  • Page 3: Table Of Contents

    Content 1 APPLICATION ............................5 2 TECHNICAL SPECIFICATION ........................6 3 INSTALLATION ............................7 4 SAFETY NOTES ............................9 5 OPERATING ............................15 6 CENTRIFUGING ............................ 19 7 TEMPERATURE CONTROL ........................32 8 PARAMETERS OF CENTRIFUGATION ....................34...
  • Page 4 9 MENU ..............................45 10 MAINTENANCE ............................ 54 11 TROUBLESHOOTING ..........................59 12 GUARANTEE ............................61 13 DISPOSAL ............................62 14 MANUFACTURER’S INFO ........................63 15 ANNEXES ............................. 64 OPTIONAL ACCESSORIES  DECLARATION OF DECONTAMINATION - REPAIR  DECLARATION OF DECONTAMINATION - RETURN ...

  • Page 5: Application

    (Harrier – ventilated, Harrier R – with cooling, Harrier RH – with cooling and heating). Its construction ensures easy operation, safe work and wide range of applications at laboratories engaged in routine medical analyses, biochemical research works etc.

  • Page 6: Technical Specification

    2 Technical specification MSE Centrifuges Ltd, Mytogen House, 11 Browning Road, Heathfield TN21 8DB manufacturer Harrier Harrier R/RH Type 230V 100V 110V 120V 127V 230V 100V 110V 120V 127V mains voltage (L1+N+PE) ±10 ±5 ±10 ±5 50/60Hz 50Hz/60Hz 50Hz 60Hz...

  • Page 7: Installation

    Supply voltage given on the name plate has to be consistent with local supply  voltage. MSE CENTRIFUGES LTD laboratory centrifuges are 1 class safety devices and they are provided with the three-core cable with the plug resistant to dynamic loadings. Mains socket shall be provided with the safety pin (protective earth (PE)).
  • Page 8 the centrifuge, near the exit or beyond the room. Before switching on, check whether the centrifuge is connected to power  supply correctly. It is compulsory to use the power cord recommended by the manufacturer (17866 for 230V, 17867 for 120V) Before use, check whether the device is correctly intalled.

  • Page 9: Safety Notes

    4 Safety notes Operating personnel The laboratory centrifuge can be operated by authorised laboratory personnel after  familiarisation with the user manual. User manual shall be always held near the centrifuge.  The centrifuge should not be misused.  If the centrifuge is used in a manner not specified by the manufacturer, the ...
  • Page 10 Loading the rotor Fix the rotor firmly on the motor axis.  Avoid unbalance.  Load opposite buckets with the same accessories.  Centrifugation of the test tubes of different sizes:  There is a possibility to centrifuge test tubes of different sizes; however, it is ...
  • Page 11  vacuum grease, e.g. type „C” by LUBRINA. HAZARDOUS MATERIALS MSE Centrifuges accessories are not biotight. For centrifuging infectious materials, it  is necessary to use hermetically closed tubes meeting demands of biotightness, in order to prevent germs migration into the centrifuge and beyond it.
  • Page 12 GENERAL HINTS Only original rotors, tubes and spare parts must be used.  In case of faulty operation of the centrifuge, please contact MSE CENTRIFUGES LTD  Service Department or its authorised representatives. It is not allowed to switch the centrifuge on if it is not installed properly or rotor ...
  • Page 13 INSPECTION PROCEDURES CARRIED OUT BY THE OPERATOR The operator has to pay special attention to the fact that key centrifuge parts are not damaged for safety reasons. This is specifically important for: Centrifuge accessories and especially structural changes, corrosion, preliminary ...
  • Page 14 ROTORS It is not permitted to use the rotors and round carriers with signs of corrosion  or other mechanical defects. It is not permitted to centrifuge highly corrosive substances which may cause  material impairment and lower mechanical properties of rotor and round carriers.

  • Page 15: Operating

    5 Operating Centrifuge overview The new generation of MSE CENTRIFUGES LTD’s laboratory centrifuges is provided with state-of-the- art microprocessor control systems, very durable and quiet asynchronous brushless motors and accessories consistent with requirements of the present-day user. Centrifuge description Fig.1. General view 1.
  • Page 16 Construction The centrifuge has a rigid self-supporting structure. The housing is made of sheet aluminium, the back is made of steel sheet. Front and cover are made of ABS type plastic. The cover is fixed on steel axles of hinges and from the front, it is locked with an electromagnetic lock blocking any possibility of opening during centrifugation.
  • Page 17 In case of rotors designed with the cover (angled rotor), they must not be used without the rotor  lid. Rotor covers must be closed tightly. Rotor covers ensure smaller drags of the rotors, proper setting of the test-tubes and airtight sealing. Please only use buckets intended for the selected types of the rotor.
  • Page 18 Checking of excessive temperature If the temperature in rotation chamber exceeds 50°C (Harrier) / 65°C (Harrier R/RH) caused by, for example, a malfunction of the cooling system, the drive will be switched off and an error message will be displayed.

  • Page 19: Centrifuging

    STOP  lid opening FAST start fast cooling mode, precool (Harrier R and Harrier RH only) COOL exit the current menu / mode type, choose options for simplified display (press and BACK/ hold for 1 s.) OPTIONS ▲...
  • Page 20 The display is located in the centre of the control panel. The main screen variants are presented below. In the user manual, examples of screens from the Harrier R/RH are shown. For Harrier (without refrigeration), the temperature is not shown. The flashing of field on display mean it is ready to set. The flashing of fields is visualised as highlighted in the user manual.
  • Page 21 SPEED rotor speed assigned/measured centrifugal force assigned/measured TIME centrifuging time assigned/measured TEMP temperature assigned/measured programme no. 11199 rotor no. PARAM parameters of the centrifuge MENU configuration menu changing values density > 1,2 g/cm centrifuging radius changed counting time down (decreasing) counting time up (increasing) centrifuging centrifuging...
  • Page 22 Setting up RPM, RCF, time, temperature On the main screen, it is possible to set: rotating speed - RPM SPEED relative centrifugal force (multiple of g-force) centrifuging time TIME centrifuging temperature TEMP Exemplary change of SPEED setting: Press SET (to enter edit mode) – ...
  • Page 23 Switching between SPEED and RCF.  On the screen, there is an additional  window, in which you can select:  Use ▲▼ keys to select field .  Press SET. Change of screen mode will be  active to switch off the centrifuge Switching between basic and simplified screens is described in 9.3 Types of Main Screen ...
  • Page 24 HOLD mode continuous run mode  To run centrifuging in HOLD mode set 00:00:00 time.  To end centrifuging in HOLD mode press STOP. Change of TEMP setting:  Press SET (to enter edit mode) – appears.  Use ▲▼◄► keys to select TEMP field (flashing).
  • Page 25 Normal display mode   Press SET key – appears.  Use ▲▼◄► keys to select PRG– – field (highlighted)  Press SET key – list of programmes is visible. ▲▼  Use choose preferred programme.  Confirm with SET key. LOAD, SAVE, DELETE, NEW PROGRAMME Select NEW PROGRAM by pressing SAVE –...
  • Page 26 Creating a new programme:  Press SET key.  Use ▲▼◄► keys to select PROG field (flashing).  Press SET key. List of programmes is visible, choose preferred position (number of programmes).  Press SET key- menu of programme settings will appear. ...
  • Page 27 With keys, choose ACCELERATION  ▲▼ to create acceleration features or DECELERATION to create deceleration features Confirm selection by pressing SET.  Acceleration features PROG / CURVES / ACCELERATION After choosing PROG  CURVES  ACCELERATION the features wizard window will be displayed: The current acceleration feature connected with the loaded programme will be displayed on the screen.
  • Page 28 „2” SECTION Programming of new section (the whole line 2 is flashing). Programming as in section 1. It is also possible to abandon the programming: with UP/DOWN keys choose the EXIT option (it will flash) and then save (press the SET). Acceleration features will be as section 1 with TIME/SPEED parameters described in line 1.
  • Page 29 Deceleration feature: PROG / CURVES / DECELERATION After choosing PROG  CURVES  DECELERATION, the window of the features’ wizard will be displayed: Default deceleration features connected with the loaded programme will be displayed on the screen. Creating of deceleration features takes place differently than acceleration features. section no.
  • Page 30 „4” SECTION New section programming is possible (when the whole line 4 is flashing). Programming as in the case of the section 1. If speed of the last section=0, it is possible to save the created features by choosing the EXIT option with keys and pressing the SET ▲▼...
  • Page 31 Press SET (Rotor list will appear).   Use ▲▼keys to select chosen rotor number  Confirm by pressing SET.  Press BACK. It is possible to set AUTOMATIC ROTOR IDENTIFICATION. The procedure is described in subsection 9.8. SHORT mode The SHORT mode is activated by pressing and holding ►...

  • Page 32: Temperature Control

    7 Temperature control Harrier R and Harrier RH only The centrifuge is equipped with ecological refrigerating system with temperature control. During centrifugation, differences in temperature may appear on the display and temperature of the samples in the rotor. This depends on the thermal conductivity of the rotor, samples and centrifugation time, initial temperature of rotor and samples.
  • Page 33 Centrifugation/SHORT mode. Cooling and heating notes Centrifuges with cooling (HARRIER R and HARRIER RH) are equipped with an efficient cooling system. It allows for the desired temperatures in the chamber even at maximum spin speed or fast to be reached quickly (e.g. 4⁰C and 36⁰C). Note that the amount of time needed to reach a set temperature is dependent on multiple factors, including: the power of the cooling system, the shape of the rotor, the rotor speed, ambient temperature, etc.

  • Page 34: Parameters Of Centrifugation

    8 Parameters of centrifugation Simplified display Press and hold by 1 second.  Choose PARAM. with▲▼  Press SET.  Follow points descripted below (Normal  display mode description) Normal display Press SET.  With ▲▼◄► keys select PARAM.  Press SET.
  • Page 35 Acceleration/deceleration – changing features With ▲▼ keys select ACCELERATION or  DECELERATION. Press SET.  With ▲▼ keys select requested number  of feature. Press SET.  ACCELERATION –10 (0 ÷ 9), linear  accelerating features assigned to every rotor. 0-the fastest acceleration, 9-the slowest acceleration.
  • Page 36 Press SET.  Set requested value by pressing ▲▼.  Press SET.  When density is changed, symbol is visible on the screen. Changing of DENSITY value is compulsory when density of sample placed into rotor is higher than 1.2 g/cm .
  • Page 37 Thermal chamber HARRIER R and HARRIER RH only without centrifuging THERMAL CHAMBER With ▲▼◄► keys select THERMAL  CHAMBER. Press SET (to turn on/off).  With ▲▼ keys select temperature value.  Set demanded value by pressing ▲▼. When THERMAL CHAMBER function is ...
  • Page 38 START DELAY / OF TIME function cannot be run when START DELAY / OF TEMP is activated. Start delay – of temperature HARRIER R and HARRIER RH only START DELAY / OF TEMP. Start centrifuging after preselected temperature is reached.
  • Page 39 When START DELAY – OF TEMPERATURE  is turned on, symbol is visible on the screen. When the function is active, the speed can be reduced to the optimum values for the FAST COOL function, when the set speed is lower than the optimum value, the rotor rotates at the set speed.
  • Page 41 Screen messages that may occur during operation. MESSAGE EXPLANATION "SPEED OF ROTOR" SPEED OF ROTOR IDENTIFICATION <> 90 RPM "IDENTIFICATION <> 90 RPM" "IMBALANCE FAST STOP !" IMBALANCE DETECTED "PLEASE REMOVE CAUSE" "THEN RESTART" "NO ROTOR OR IDENTIFICATION" ERROR OF ROTOR IDENTIFICATION {LIMIT OF 6SEC. IS OVER} "SENSOR DAMAGED !"...
  • Page 42 Emergency messages In case of emergency messages (centrifuge is not working properly) contact the manufacturer's authorised service centre. MESSAGE EXPLANATION "OVERHEATING MOTOR !" "OVERHEATING MOTOR !" "INVERTER ERROR !" "INVERTER ERROR !" "INVERTER SERIAL BUS ERROR !" "INVERTER SERIAL BUS ERROR !" "TEMPERATURE SENSOR ERROR"...
  • Page 43 Temporarily disabled functions The functions below can be temporarily disabled. active ––––– / –––– MENU SPEED TIME TEMP PROG –– PARAM THERMAL ● ● ● ○ ● ● ● ● CHAMBER During run active ––––– / –––– MENU SPEED TIME TEMP PROG ––...
  • Page 44 Emergency stop At any time during centrifuging, it is possible to interrupt the process and fast stop the rotor. Single- time pressing of the STOP key will make centrifuging stop with the acceleration features set in the programme (after pressing either SET or STOP keys, the device returns to the main screen). Pressing and holding it up to 1s will make the centrifuging stop with the strictest feature.

  • Page 45: Menu

    9 Menu Simplified display Press and hold by 1 second.  Choose MENU with▲▼  Press SET.  Follow points described below (Normal  display mode description) Normal display Press SET.  With ▲▼◄► keys select MENU.  Press SET. ...
  • Page 46 Screen saver Setting time of screen saver MENU/ CONFIGURATION / SCREEN ▲▼◄► With keys, select  SCREENSAVER. Press SET and then ▼ .  With ▲▼ keys select demanded value  from 1 to 60 minutes. Select selection by pressing SET. ...
  • Page 47 keys select SIMPLIFIED DISPLAY.  ▲▼ Press SET.  9.3.2 Switching the simplified screen to normal display Press the BACK button for 1 sec. then: keys select DISPLAY MODE  ▲▼ (flashing). Press SET.  Then choose NORMAL DISPlAY and press ...
  • Page 48 Buzzer Switching ON/OFF short audible signals MENU/ CONFIGURATION /BUZZER accompanying every pressing of any key. With ▲▼ keys select demanded option.  Select selection by pressing SET.  Warning signals are always switched on. Date/time Setting up time and date MENU/ CONFIGURATION /DATE/TIME Via keys ◄►...
  • Page 49 Other Rotor automatic identification MENU / CONFIGURATION / OTHER Thanks to the automatic rotor identification, the centrifuge automatically identifies the rotor in the chamber. Rotor identification is indicated by the message. When the function is deactivated, it is necessary to manually select the desired rotor as described in "6.7 Choosing rotors".
  • Page 50 Note: No PASSWORD is set by default. The PASSWORD can be set as follows when the rotor is at a standstill. Press the keys until “PASSWORD:”  ▲▼ blinks. Press SET.  Press ►  With keys set the PASSWORD. With ...
  • Page 51 To delete the PASSWORD, “0000” must be set. If the PASSWORD is forgotten, the emergency code “7654” should be used to clear password and remove all locks. Setting up locks With keys choose a lock.  ▲▼ Select a lock by pressing SET. ...
  • Page 52 Last 10 cycles Information concerning parameters of last MENU / LAST 10 CYCLES 10 centrifuging cycles. Number of cycle can be changed by ◄►  keys. The list can be scrolled using ▲▼ keys.  To exit press SET/BACK key ...
  • Page 53 Contact us Information about the type of the centrifuge, MENU / CONTACT US firmware version, and contact details. The list can be scrolled using ▲▼ keys.  To exit press BACK key.  Diagnostics Information about errors during the operation of MENU / DIAGNOSTICS the centrifuge (for service).

  • Page 54: Maintenance

    10 Maintenance Cleaning of the centrifuge Pull the mains plug before cleaning.  Before any cleaning or decontamination process other than that is  recommended by the manufacturer, the user should ask the manufacturer if the event the planned process should damage the device For cleaning, water with soap or other water soluble mild detergent shall be ...
  • Page 55 or/and autoclave and then lubricate socket with the petroleum jelly. In case of surface damage, crevice or other change, as well as  corrosion, the part (rotor, bucket, etc.) should be immediately replaced. Clamping rotor, containers and reducer inserts must be cleaned regularly to ...
  • Page 56 Sterilization Plastics - legend to abbreviations polystyrene ethylene/chlorotrifluoroethylene ECTFE styrene-acrylonitrile ethylene/tetrafluoroethylene ETFE polymethyl methacrylate polytetrafluoroethylene PMMA PTFE polycarbonate tetrafluoroethylene/perfluoropropylene polyvinyl chloride tetrafluoroethylene/perfluoroalkylvinylether acetal polyoxymethylenel fluorcarbon rubber low density polyethylene ethylene propylene diene PE-LD EPDM high density polyethylene natural rubber PE-HD polypropylene silicon rubber polymethylpentene...
  • Page 57 10.3.1 Autoclaving Rotors, buckets and round carriers can be sterilised in autoclaves with temperature up to 121°C for  OPTIONAL ACCESSORY at least 20 mins (215 kPa), unless otherwise specified in the During sterilisation (autoclaved) by means of steam, temperature resistance of individual materials ...
  • Page 58 Do not use bleach on plastic parts of the rotor. DANGER! MSE accessories are not biotight. For centrifuging infectious materials, it is necessary to use hermetically closed tubes meeting demands of biotightness, in order to prevent germs migration into the centrifuge and beyond it.

  • Page 59: Troubleshooting

    11 Troubleshooting The majority of faults can be removed by switching the centrifuge OFF and ON. After switching the centrifuge ON, parameters of the last programme will be displayed and sound signals comprising four successive tones will be generated. In case of short-duration power failure, the centrifuge terminates the cycle and displays PROGRAM ERROR code.
  • Page 60 Emergency cover release EMERGENCY COVER RELEASE You can manually open the lid (eg. in case of power failure). To do this, insert the key into the emergency opening of the cover (Cat. No. 17162) into the hole on the right side of the chassis and then push it until you release the lock of the lock and open the cover.

  • Page 61: Guarantee

    User manual provisions, when damage results from the User’s fault. Repairs should be carried out in authorised MSE service workshops. The centrifuge shall be sent for repair after decontamination...

  • Page 62: Disposal

    13 Disposal When disposing of the device, statutory rules must be observed.  Pursuant to guideline 2002/96/EC (WEEE), all devices supplied after August  13, 2005, may not be disposed as part of domestic waste. The device belongs to the 8 group (medical devices) and is categorised ...

  • Page 63: Manufacturer's Info

    14 Manufacturer’s info MSE Centrifuges LIMITED 1435 517 000 sales department Mytogen House 1435 517 005 service 11 Browning Road 1825 700 471 Heathfield TN21 8DB www.mseuk.com http:// UNITED KINGDOM sales@mseuk.com e-mail: DISTRIBUTOR:...

  • Page 64: Annexes

    15 ANNEXES...
  • Page 65 Meet the rest of the family Brand new generation of centrifuges MICROCENTAUR R Refrigerated Micro Centrifuge Maximum speed 18000 rpm 24270 xg Maximum RCF Maximum Volume 24 x 2/1.5ml HAWK Compact Centrifuge Ambient and Refrigerated Swing Out / Fixed Angle / Microplate 18000 rpm Maximum speed 24270 xg...
