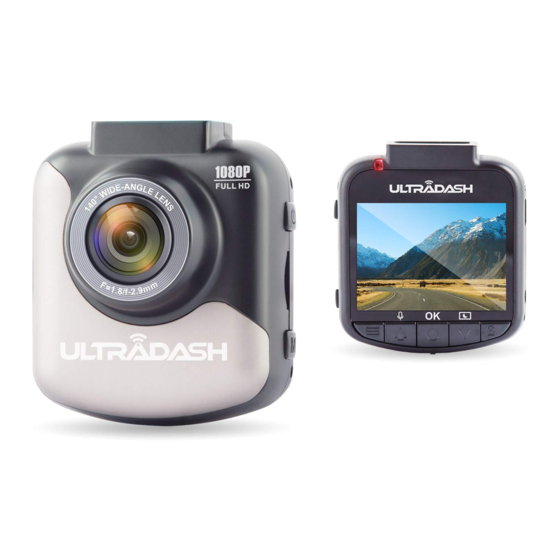

- Page 1 1080P FULL HD DASHCAM INSTRUCTION MANUAL...
-
Page 2: The Ultradash C1
With new technology readily available, the creators of Cansonic have developed an easy to use camera for everyday use. The UltraDash C1 allows its user to record files in 1, 3, or 5 minute lengths. These files are easy to download to your home desktop or personal laptop. -
Page 3: Table Of Contents
TABLE OF CONTENT The UltraDash C1....................01 Precautions ......................Product Specs ...................... Package Contents ....................Product Features ....................Camera Parts & Controls ..................In-Vehicle Installation .................... Video Mode ......................Video Menu ......................Photo Mode ......................Photo Menu ......................Playback Mode ..................... -
Page 4: Precautions
C1 is placed clear of your view of the road, as well as out of the way of airbags in the event of an accident. • Disconnect the UltraDash C1 adaptor when the vehicle is not in use. By doing so, you will avoid camera damage as well as hazards such as fires and electrocution. - Page 5 • Clean the device with a soft dry cloth. For tough dirt, please use a small quantity of water and a neutral detergent. Clean with a soft cloth. • Avoid contact with the UltraDash C1 lens as damage may be caused. • When necessary, clean the lens carefully by using lens cleaning fluid and a soft cloth.
-
Page 6: Product Specs
PRODUCT SPECS Model Number / Name UltraDash C1 Power Requirements 5V / 1.5A; 12-24V DC Input: 12-24V DC Power Supply Output: 5V DC (Car power cable) Fuse Type: 32mm/2A Power Input Built-in super capacitor Sony Exmor, 2M Pixel Sensor Resolution Lens 6G / 140°... -
Page 7: Package Contents
A built-in microphone and speaker come standard. The feature also works with the camera’s playback feature. - GPS Data (Optional) UltraDash C1 is able to record your location and speed while filming with the magnetic GPS mount. (sold separately, please see Cansonic website for more detail). - Parking Mode (Optional) The UltraDash C1 has a sleep mode, but a unique feature enables the camera to automatically record 30 seconds of video if there is any physical movement of the vehicle. -
Page 8: Camera Parts & Controls
CAMERA PARTS & CONTROL 1. Menu Button Press this button to open the menu of the current mode. Press this button twice to enter the general setting menu. 2. Up/Mute Button Navigate up within menus or go to the previous file in playback mode. Mute Turn on or off the audio recording function while in video mode. - Page 9 Attach the magnetic connector to the connector port. 8. DC-IN/Data transfer Port By connecting the UltraDash C1 with the supplied car power cable you are able to charge the camera. This will also be utilized to let you connect the USB cord to your PC. You can either connect the car power cable with the device or magnetic connector.
-
Page 10: In-Vehicle Installation
1. INSERT YOUR MICRO SD CARD INTO THE UltraDash C1 The UltraDash C1 is designed to allow a standard Micro SD card to record your footage. Before installing, make sure the gold end of the card is facing the LCD screen. - Page 11 2.1 CONNECT THE UltraDash C1 TO THE MAGNETIC MOUNT Attach the UltraDash C1 onto (e) the magnetic connector on the mount. Make sure you align the camera within the connector port for proper installation. 2.2 REPLACE THE SUCTION MOUNT WITH THE 3M ADHESIVE MOUNT (OPTIONAL):...
- Page 12 How to use the 3M Adhesive Mount: Loosen the (c) locking ring on the suction mount and pull the (e) magnetic connector out. ii. Next, loosen the (c) locking ring from the 3M adhesive mount, and plug the (e) magnetic connector into the 3M adhesive mount. iii.
- Page 13 TIPS: - When selecting a location for the suction mount, make sure it’s on a glass surface that is smooth and free of paint. - Before mounting, clean the area with a dry/clean cloth and add a small amount of moisture to the windshield.
- Page 14 6. THE FIRST-TIME SETUP When connecting the power, the UltraDash C1 will turn on and display the first-time setup guide below. - Select the Language Language English Simplified Chinese Traditional Chinese Press OK to continue. - Select the Country and Time Zone...
- Page 15 -If there is no 12V outlet or cigarette lighter for your vehicle, use the included USB power cord. -DO NOT wire the UltraDash C1 directly to the car cigarette outlet or any 12 V outlet. Doing so will result in permanent damage to the camera.
- Page 16 DO NOT place the camera in front of the driver’s side. DO NOT place the mount within the airbag deployment area or near any mirrors. DO NOT operate the UltraDash C1 while driving. Remember, the camera will automatically record when the vehicle engine has started.
-
Page 17: Video Mode
13. Power Status: Indicates if the camera is charging or not. UltraDash C1’s default settings have been set for you to use the camera without needing to change the settings. If you need to make adjustments to the settings, the following instructions will help you. -
Page 18: Video Menu
VIDEO MENU. Press the MENU button twice to return to video mode. TIP: - You are not able to access the UltraDash C1 menu while the camera is recording. • Resolution: Choose the video resolution. - Page 19 • Speed Units: Adjust the unit for speed data. OPTIONS: MPH (default)/KMH • Screen Saver: UltraDash C1 has a function to let the screen shut down after a period of inactivity. Press any button to re-activate the display. OPTIONS: 30 Seconds/2 Minutes/Off (default) •...
-
Page 20: Photo Mode
Some icons show up only when corresponding functions are activated. 11:17:01 07/04/2018 1. Mode: Indicates when the UltraDash C1 is in photo mode. 2. Exposure: Indicates the current exposure level settings. 3. Time: Displays current time. 4. Date: Displays current date. -
Page 21: Photo Menu
Time & Date Stamp: Turn ON or OFF the date stamp mark on the photos. OPTIONS: On (default)/Off NOTE: When you are in the SETUP -> System MENU, you will be able to restore all the settings to the UltraDash C1’s default settings. -
Page 22: Playback Mode
PLAYBACK MODE Use MODE button to access PLAYBACK MODE. In PLAYBACK MODE, you are able to review the videos and photos you have stored. DIRECTORIES Press the UP or DOWN buttons to navigate through the menu. PROTECTED: The directory for all protected videos. VIDEO: The directory for all unprotected videos. - Page 23 11:17:01 / II MODE 1. Mode: Indicates when the UltraDash C1 is in in PLAYBACK MODE. 2. File Type: Indicates the file type is video. 3. Playback Progress: Displays the current playback time. 4. Date & Time: Indicates the date and time of the recorded file.
- Page 24 OK: PLAY/PAUSE. MODE: STOP playing video and go back to Video/Protected directory. UP: REWIND. DOWN: FAST FORWARD. MENU: DELETE or PROTECT the video. 6. Charging Indicator: Indicates if the camera is charging or not. 7. Protected File: Indicates the selected file is protected. PHOTO FILES 80/80 2018_0704_111701_001...
- Page 25 1. Mode: Indicates when the UltraDash C1 is in in PLAYBACK MODE. 2. File Type: Indicates the file type is photo. 3. Date & Time: Indicates the date and time of the recorded file. 4. Playback Controls: Use the UltraDash C1 buttons as instructed below.
- Page 26 PROTECTING/UNPROTECTING FILES Highlight the PROTECT/UNPROTECT option and press the OK button. Protect/Unprotect Delete Enter Back MENU You will have the following options: Protect File Protect File Unprotect File Unprotect File Protect ALL Files Protect ALL Files Unprotect ALL Files Unprotect ALL Files Enter Back Enter...
-
Page 27: Setup Menu
SETUP MENU. Press the MENU button to return to the current mode. Note: UltraDash C1 default settings have been selected for great image quality and ease of operation. Under most circumstances, you don’t need to change the settings. -
Page 28: Usb Storage & Pc Camera
Satellite Signal: The count of how many satellite signals C1 is receiving. USB STORAGE & PC CAMERA (Windows & Mac) When you use the provided USB cable to connect UltraDash C1 to your computer, the LCD screen will show three available options. -
Page 29: Video & Audio Output
The LED light shows the UltraDash C1 is on. Remember to charge the UltraDash C1 prior to AV OUT mode since the AV cable will NOT charge the device. Please the supplied USB cable and a standard 5Vdc/USB power adaptor to keep it charged. -
Page 30: Troubleshooting
If your PC does not recognize the video files, try another PC to view the recorded video. Copy the video file on to the computer and allow for the PC video player rather than the UltraDash C1 Playback feature. The photos come out Be sure to hold the camera still while you take your photo. - Page 31 If you want to turn off this function, go to SETUP menu -> Screen Saver, and turn it off. The message “Please UltraDash C1 requires formatting the Micro SD card if the card Format SD Card” is used on C1 for the first time. Please format the SD card in the appears on my screen SETUP menu.
- Page 32 If you want to turn off this function, go to SETUP menu -> Parking Mode Sensor, and turn it off. I press the MENU Reminder: The UltraDash C1 will not let you access the menu button but nothing while it is recording. To access the menu, stop recording and happens the MENU feature will be accessible.
- Page 33 Instagram: @cansonic_usa Facebook: @cansonicusa Youtube: Cansonic USA Official: www.cansonic.com...
- Page 34 ULTRADASHC120180630V01...
