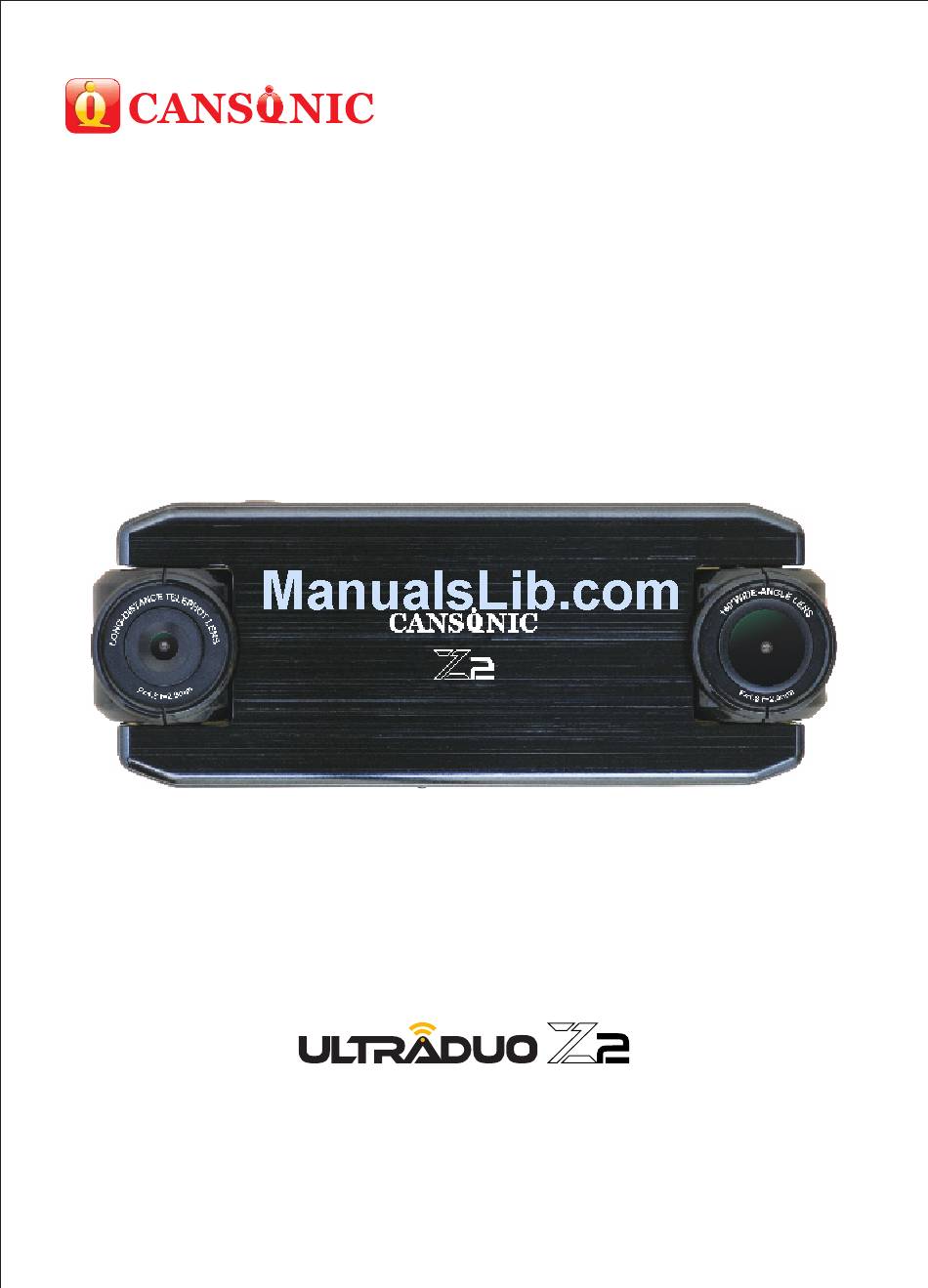

- Page 1 2 x 1080P FULL HD DUO DASHCAM INSTRUCTION MANUAL...
- Page 3 The Cansonic UltraDuo Z2 lets users adjust camera settings to get the perfect shot. For a great photo every time, here are a few tips from the designers: 1.
- Page 4 ADDITIONAL TIPS Full optimization of memory card: 1. Before removal of the memory card from the UltraDuo Z2, be sure to turn off the camera. Leaving the camera on while removing its memory card may lead to eased or corrupt files.
-
Page 5: Table Of Contents
TABLE OF CONTENTS The Cansonic UltraDuo Z2..............Ⅰ Precautions...................02 Product Specs..................04 Package Contents..................05 Product Features...................05 Suction Mount..................06 Camera Parts & Controls................07 In-Vehicle Installation................10 Video Mode...................13 Video Menu...................15 Photo Mode...................17 Photo Menu...................18 Playback Mode..................19 Setup Menu...................24 USB Storage..................26 Video & Audio Output................27... -
Page 6: Precautions
NOT WATERPROOF and will become defective and may put the user at risk of electric shock or fire exposure. DO NOT use UltraDuo Z2 for any illegal purpose or to infringe on another individual’s rights. When audio is being recorded, we recommend you allow any and all persons near the UltraDuo Z2 know that they are being recorded. - Page 7 Ensure the Cansonic UltraDuo Z2 is placed clear of your view of the road, as well as out of the way of airbags in the event of an accident.
-
Page 8: Product Specs
PRODUCT SPECS UltraDash Z2 Model Number / Name Power Requirements 5V/1.5A, 12-24V DC Power Supply Input: 12-24V DC; Output: 5V DC; (Car Power Cable) Fuse Type: 32mm/1.5A Wide-Angle Lens 6G/160°/F1.8 Type/Angle/Aperture Telephoto Lens 6G/164 ft/F2.0 Type/Distance/Aperture 4M Pixel (4,000,000 Pixel) Sensor Resolution Recording Resolution 1920 x 1080 @ 30fps (default) -
Page 9: Package Contents
A built-in microphone and speaker come standard. The feature also works with the camera’s playback feature. - GPS DATA (OPTIONAL) UltraDuo Z2 is able to record your location and speed while filming with a GPS logger (sold separately, please see Cansonic website for more detail). -
Page 10: Suction Mount
Do not place where there is paint. 3. Locking Ring Loosen the locking ring so you are able to adjust the Cansonic UltraDuo Z2 to the perfect angle. Remember to tighten the lock before you use it. 4. Locking Lever Choose a location to place the camera where it won’t distract you. -
Page 11: Camera Parts & Controls
CAMERA PARTS & CONTROL BACK 7 8 9 10 11 1. GPS LED Indicator The LED will flash while UltraDuo Z2 locates satellites. - Once a stable signal is received, the LED light will be constant. 2. Mode/EV Button Mode This button allows you to navigate between video, photo and playback modes. - Page 12 While you are recording in video mode, press down on the button and you will be able to take a screenshot of the current frame. 9. Screen UltraDuo Z2 is equipped with a standard 2.0” LCD color screen to let you view your files with its playback feature. 10. Down/Screen Off Button Down Navigate down within menus or go to the next file in playback mode.
- Page 13 AV Cable (sold separately) 14. DC-IN/Data transfer Port By connecting the UltraDuo Z2 with the supplied car power cable you are able to charge the camera. This will also be utilized to let you connect the USB cord to your PC.
-
Page 14: In-Vehicle Installation
Follow the instructions below for the first time installation. • INSERT YOUR Micro SD CARD IN THE UltraDuo Z2 The UltraDuo Z2 is fitted to allow a standard Micro SD card to record your footage. Before installing, make sure the gold end of the card is facing the LCD screen. - Page 15 - Plug the power cable into the camera to allow the camera to charge. - The Cansonic UltraDuo Z2 will automatically turn on and start recording once power has been made available from the cigarette outlet. Just start the vehicle and start driving! - If there is no cigarette outlet for your vehicle, use the included USB power cord.
- Page 16 - Remember to plug the car power cord to the camera in the power socket located on the top left corner. - DO NOT wire the UltraDuo Z2 directly to the car cigarette outlet or any 12 V outlet. Doing so will result in permanent damage to the camera.
-
Page 17: Video Mode
3. G Sensor: The current sensitivity level of G-Sensor. 4. GPS: If this icon flashes, it indicates UltraDuo Z2 is locating GPS signal. When the GPS signal is found, the icon will stop flashing and remain stable on the screen. - Page 18 8. PIP: UltraDuo Z2 will display the image from both cameras at the same time. Use screen select hot key to choose the main camera to display on PIP screen. 9. Time: Displays current time. 10. Date: Displays current date.
-
Page 19: Video Menu
OK button to confirm your selection and to return to the VIDEO MENU. Press the MENU button twice to return to video mode. TIP: - You are not able to access the UltraDuo Z2 menu while the camera is recording. • Camera Select: Choose which camera to record. - Page 20 Time & Date Stamp: Turn ON or OFF the date stamp mark on the recorded files. OPTIONS: On (default)/Off NOTE: When you are in the SETUP -> System MENU, you will be able to restore all the settings to UltraDuo Z2’s default settings.
-
Page 21: Photo Mode
2. Resolution: Indicates the image size. 3. Memory Capacity: Remaining shot count. 4. PIP: UltraDuo Z2 will display the image from both cameras at the same time. Use the screen select hot key to choose the main camera to display on PIP screen. -
Page 22: Photo Menu
• White Balance: Select the white balance setting for different weather conditions. OPTIONS: Auto (default)/Daylight/Cloudy • Exposure: Adjust exposure levels settings. OPTIONS: +2/+1/0(default)/-1/-2 NOTE: When you are in the SETUP -> System MENU, you will be able to restore all the settings to the UltraDuo Z2’s default settings. -
Page 23: Playback Mode
PLAYBACK MODE Use MODE button to access PLAYBACK MODE. In PLAYBACK MODE, you are able to review the videos and photos you have stored. DIRECTORIES Press the UP or DOWN buttons to navigate through the menu. • Protected: The directory for all protected videos. •... - Page 24 Latitude & Longitude Data Cansonic Stamp: Logo, can be turned on/off in SETUP MENU Time & Date Stamp: Date, Time, can be turned on/off in VIDEO MENU Information Stamp: Accelerator Data, Speed, Latitude & Longitude, can be turned on/off in SETUP MENU...
- Page 25 PLAYBACK MODE (CONT.) PHOTO FILES 10/100 Menu Play MENU OK: Display photo info. MODE: Go back to Playback mode. DOWN: Previous Photo. UP: Next photo. MENU: Delete or protect the photo. See following pages for details.
-
Page 26: Deleting Files
PLAYBACK MODE (CONT.) DELETING FILES Highlight the DELETE FILES option and press the OK button. Protect / Unprotect Delete Enter Back MENU You will have the following options: Single File Single File All Files All Files Enter Back Enter Back MENU MENU Once selected, follow the on... - Page 27 PLAYBACK MODE (CONT.) PROTECTING/UNPROTECTING FILES Highlight the PROTECT/UNPROTECT option and press the OK button. Protect / Unprotect Delete Enter Back MENU You will have the following options: Single File Single File Protect All Files Protect All Files Unprotect All Files Unprotect All Files Enter Back...
-
Page 28: Setup Menu
OPTIONS: 10 Seconds (default)/2 Minutes/5 Minutes • Screen Saver: UltraDuo Z2 has a function to let the screen shut down after a period of inactivity. Press any button to re-activate the display. OPTIONS: 1 Minute/3 Minutes/5 Minutes/Off (default) •... - Page 29 OPTIONS: NTSC/PAL (default) • Light Frequency: Set up the AV output frequency. OPTIONS: 50 HZ/60 HZ (default) • Cansonic Stamp: Turn the Cansonic logo stamp ON or OFF on the recorded files. OPTIONS: On (default)/Off • Information Stamp: Turn the Information stamp including the acceleration, speed data on the recorded files ON or OFF.
-
Page 30: Usb Storage
Note: The UltraDuo Z2 is a ‘Read Only’ devise. If you want to copy/delete/ edit the files, remove the Micro SD Card and use another card reader to connect your computer. -
Page 31: Video & Audio Output
Remember to charge the UltraDuo Z2 prior to AV OUT mode since the AV cable will NOT charge the battery. If you are going to use the UltraDuo Z2 longer than the internal power battery life, use the supplied USB cable and a standard 5Vdc/USB power adaptor to keep it charged. -
Page 32: Troubleshooting
If your PC does not recognize the video files, try another PC to view the recorded video. Copy the video file on to the computer and allow for the PC video player rather than the UltraDuo Z2 Playback feature. The photos come out Be sure to hold the camera still while you take your photo. - Page 33 We recommend the branded memory cards with class 10 or UHS type 1. Note: You must format the memory card with UltraDuo Z2 for first time use. Be sure the file you are trying to delete is unprotected. If the file...
- Page 34 A buzz is created Be sure that your UltraDuo Z2’s AV cable is connected correctly. when my UltraDuo The audio jack (2.5mm) can be purchased on the Cansonic Z2 is connected to website. my TV The parking mode function will automatically start recording a...
- Page 35 Instagram: @cansonic_usa Facebook: @cansonicusa Youtube: Cansonic USA Official: www.cansonic.com...
