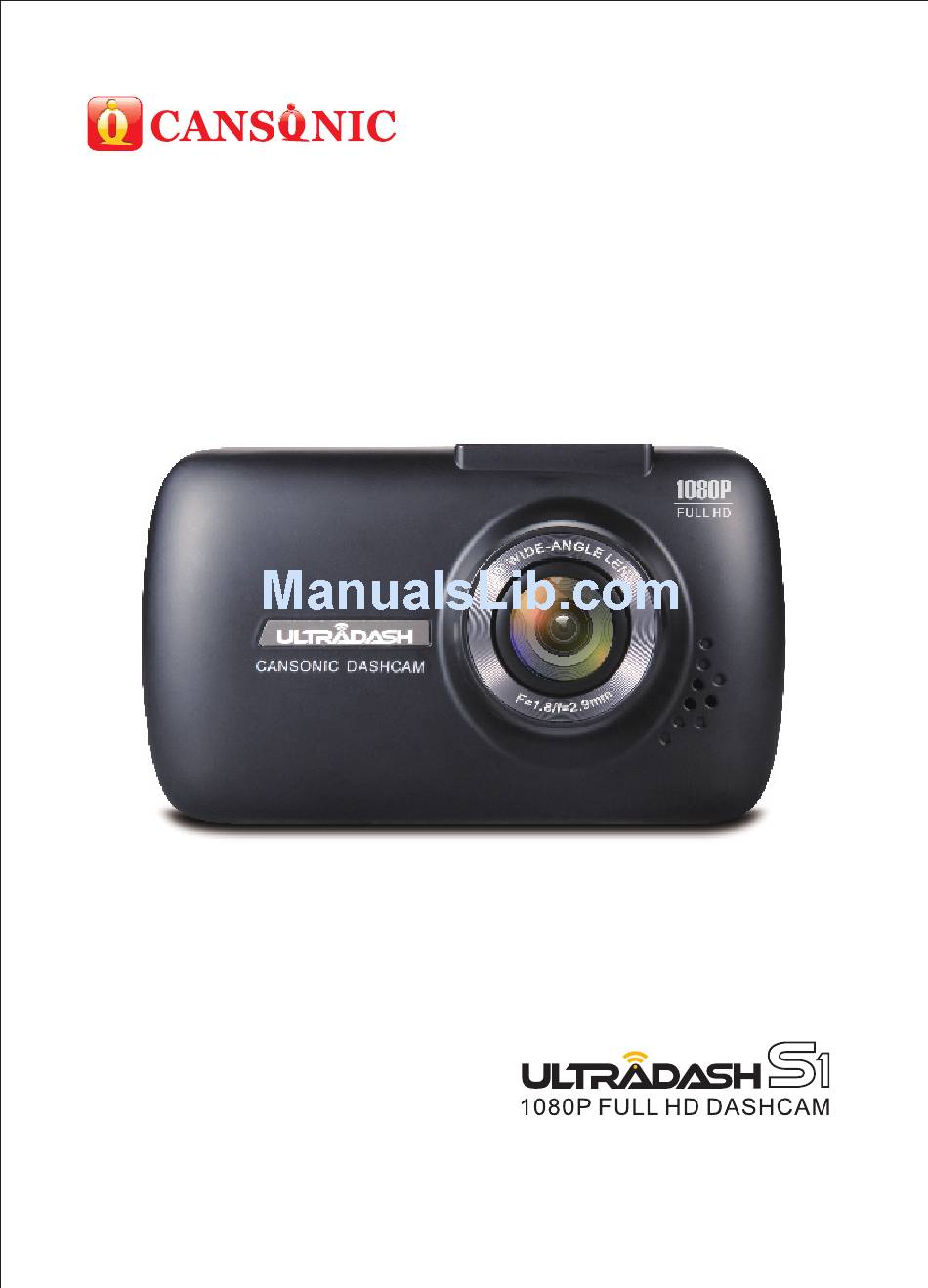

- Page 1 Instruction Manual...
-
Page 3: The Cansonic Ultradash S1
Leaving the camera on while removing its memory card may lead to eased memory or corrupt files. 2.Format memory card to UltraDash S1 settings. In doing so, you will be able to fully use all the memory power your MicroSD card is set to hold. -
Page 4: Table Of Contents
TABLE OF CONTENT The Cansonic UltraDash S1..............01 Precautions....................03 Product Specs..................04 Package Contents...................05 Product Features..................05 Suction Mount..................06 Camera Parts & Controls................07 In-Vehicle Installation................13 Video Mode.....................17 Video Menu.....................18 Photo Mode.....................20 Photo Menu.....................21 Playback Mode..................22 Set Up Menu...................26 USB Storage &PC Camera...............29 Video & Audio Output................30... -
Page 5: Precautions
CAUTION: Do not perform any activities or services with the device unless you are qualified to control the object. Misuse of the Cansonic UltraDash S1 may result in electric shock or fire exposure. AVOID any circumstances with the camera that are not listed in the manual. If your UltraDash S1 needs service repairs, please visit a qualified technician to allow the necessary repairs below: Cansonic UltraDash S1 has had exposure to water (rain, all forms of water, ETC.) -
Page 6: Product Specs
PRODUCT SPECS UltraDash S1 Model Number / Name Power Requirements 5V / 1.5A 12-24Vdc Car Power Cable (supplied) Power Supply Output: 5Vdc Lens - 6G / 140° / F1.8 Type / Angle / Aperture Recording Resolution 1920 x 1080 @ 30fps (default) Screen Size 2.7"... -
Page 7: Package Contents
* Product appearance may differ slightly to that shown above. PRODUCT FEATURES We here at Cansonic would like to thank you for choosing UltraDash S1 as your choice for camera. We strive to bring you the highest quality products to allow you to capture memories and content. - Page 8 Remember to find a suitable location where it won’t be a distraction for you. 4. Locking Ring Loosen the locking ring so you are able to adjust the Cansonic UltraDash S1 to the perfect angle. Remember to tighten the lock before you use it.
- Page 9 The Cansonic UltraDash S1 camera lens has a standard wide angle view (140 Degrees) and a 6 element glass lens for the best available picture quality. 3. Speaker The Cansonic UltraDash S1 is integrated with a speaker for audio when you are using the cameras playback feature.
- Page 10 Back 11 10 4.Screen The UltraDash S1 is equipped with a standard 2.7 LCD color screen to let you view your files with its playback feature. 5.Protect File Button In the event of an accident, we created this feature for convenient use of the protect file feature the UltraDash S1 offers.
- Page 11 10.Mode/Screen Capture Button Mode: By pressing this button you will be able to access all modes available on the UltraDash S1 (Video, Photo, Playback) Screenshot: While you are recording in video mode, press down on the button and you will be able to take a screenshot of the current frame.
- Page 12 AV Cable (sold separately) 14. DC-IN/USB Port By connecting the UltraDash S1 with the supplied power cord you are able to charge the camera. This will also be utilized to let you connect the USB cord to...
-
Page 13: Camera Parts & Controls
16. MicroSD Card Slot You can insert the recommended memory card in this location. Align the gold parts of the memory card correctly facing the back of the UltraDash S1. 17. Microphone The camera come equipped with an integrated microphone for audio recording. -
Page 14: In-Vehicle Installation
• REMEMBER TO INSERT YOUR MicroSD CARD TO THE Cansonic UltraDash S1 The UltraDash S1 memory slot is fitted to allow a standard MicroSD card to record your footage. Before installing make sure the gold end of the card is facing the LCD screen. - Page 15 • ATTACH THE MOUNT TO THE WINDSHIELD & START RECORDING When you are holding the suction that will hold the mount, you have to remove the protective plastic film. Once you remove it, select a location to put the suction cup in place. When you have found a suitable location, remember to clean the area with a dry/clean cloth to allow a strong bond between the glass and the suction cup.
- Page 16 -Remember to plug the car power cord to the camera in the power socket located on the top right corner. -DO NOT wire the UltraDash S1 directly to the car cigarette outlet. Doing so will result in permanent damage to the camera.
- Page 17 PLEASE adjust your camera settings before you begin driving. The Cansonic UltraDash S1 is, in most cases, legal to use in the US. General use of the camera for safety purposes is considered beneficial to the camera operator. There are laws that currently protect and individuals’ rights to privacy.
-
Page 18: Video Mode
10. Date: The screen will display the current date. 11. Memory Card: The icon will indicate when a memory card is present in the UltraDash S1. 12. Battery: This icon will indicate when the UltraDash S1 is running on battery of external power. -
Page 19: Video Menu
VIDEO MENU. Press the MENU button twice to return to video mode. TIP: -You are not able to access the UltraDash S1 menu while the camera is recording. • RESOLUTION: When you select the Resolution tab, you will be able to change the settings to increase and decrease the quality of the video being recorded. - Page 20 To adjust is, simply access the tab and switch from High to Low. o OPTION: High, Middle, Low and Off DEFAULT SETTINGS: Middle NOTE: When you are in the UltraDash S1’s MENU, you will be able to access “Restore Defaults” option to let you revert back to the UltraDash S1’s factory settings.
-
Page 21: Photo Mode
Thank you for choosing Cansonic! 08/08/2016 1. MODE: This will indicate when the UltraDash S1 is in PHOTO MODE. 2. EXPOSURE: This display will let you know the photos current exposure level setting. -
Page 22: Photo Menu
Option: On and Off DEFAULT SETTING: On NOTE: When you are in the UltraDash S1’s MENU, you will be able to access “Restore Defaults” option to let you revert back to the UltraDash S1’s factory settings. -
Page 23: Playback Mode
08/08/2016 / II MODE 1. MODE: This will indicate when the UltraDash S1 is in PLAYBACK MODE. 2. FILE TYPE: The icon will indicate when a video or photo is being viewed. 3. FILE NUMBER: Displays the current file number. - Page 24 01140002.JPG 23:55:54 08/08/2016 1. MODE: When the icon appears on-screen, the UltraDash S1 is in PLAYBACK MODE. 2. FILE TYPE: The camera icon will appear when a photo is being viewed. 3. FILE NUMBER: The image file number will be displayed on every image the UltraDash S1 captures.
- Page 25 PLAYBACK MODE (Cont.) DELETING FILES Highlight the DELETE FILES option and press the OK button down. Video Menu Playback Menu Resolution Delete Files Exposure Protect Files Back Enter MENU You will have the following options: Delete File Delete ALL Files ? Video Menu Video Menu Delete Files...
- Page 26 PLAYBACK MODE (Cont.) PROTECTING FILES: Highlight the PROTECT FILES option and press the OK button. Video Menu Playback Menu Resolution Delete Files Exposure Protect Files Back Enter MENU You will have the following options: Protect File Unprotect File Video Menu Video Menu Protect Files Protect Files...
-
Page 27: Setup Menu
Norsk, Suomi and Svenska. DEFAULT SETTING: English • SCREEN SAVER: UltraDash S1 has a function to let the screen to shut down after a period of inactivity. Press any button to re-activate the display. i. OPTIONS: Off, 10 Seconds, 30 Seconds, and 2 Minutes. - Page 28 DEFAULT SETTINGS: 10 Seconds. • NUMBER PLATE: You can enter your vehicle registration number to the Cansonic UltraDash S1. This feature will allow all your recordings to be registered. a. Use the OK button to select through the fields and use the UP and DOWN button to set the information.
- Page 29 SETUP MENU (Cont.) Video Menu Setup Menu Resolution System Info Exposure Restore Defaults Back Enter MENU • SYSTEM INFO: Display the version number of the Cansonic UltraDash S1 firmware. • RESTORE DEFAULTS: Reset the Cansonic UltraDash S1 to the factory settings.
-
Page 30: Usb Storage &Pc Camera
Cansonic UltraDash S1 to your home PC or MAC computer. Please keep in mind that you will need the provided DC-IN USB cable in order for the transfer to properly function. -
Page 31: Video & Audio Output
You cannot access the UltraDash’s menu while it is being used in AV OUT mode. Remember to charge the UltraDash S1 prior to AV OUT mode since it will be using its internal battery. If you are going to be utilizing the UltraDash S1 longer than the internal powers battery life, use the supplied USB cable and a standard 5Vdc/USB power adaptor. -
Page 32: Troubleshooting
Mass storage both PC and Mac computers. Please reset your computers and function is not working allow for the Cansonic UltraDash S1 to be loaded properly to the properly computer. Make sure the UltraDash S1 is connected properly. - Page 33 My UltraDash S1 shuts Your UltraDash S1 may have used all its power and needs to be down on its own charged. The camera is also programmed to shut down when it is low on energy.
- Page 34 A “Card Error” message This indicates that the Micro SD card is not properly formatted appears on my to your UltraDash S1. Please remove the file you would like to UltraDash S1 keep on to your PC and preform a “Format Memory Card”...
- Page 35 Instagram: @cansonic_usa Facebook: @cansonicusa Youtube: Cansonic USA Official: www.cansonic.com...
