UM2260
Board layout

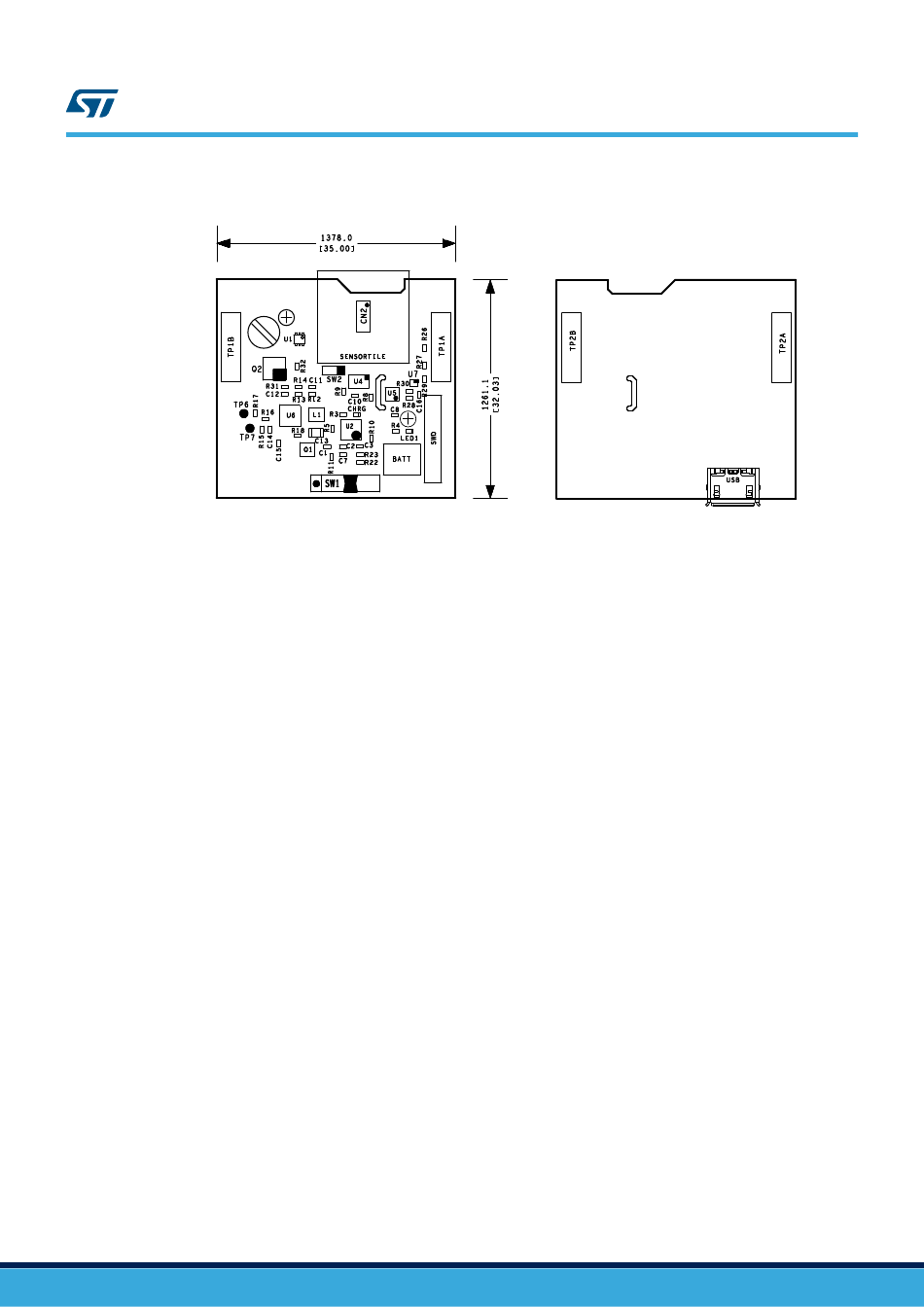

Figure 20.
STEVAL-GPT001V1 component placement (top and bottom layers)
UM2260 - Rev 2
page 20/25
