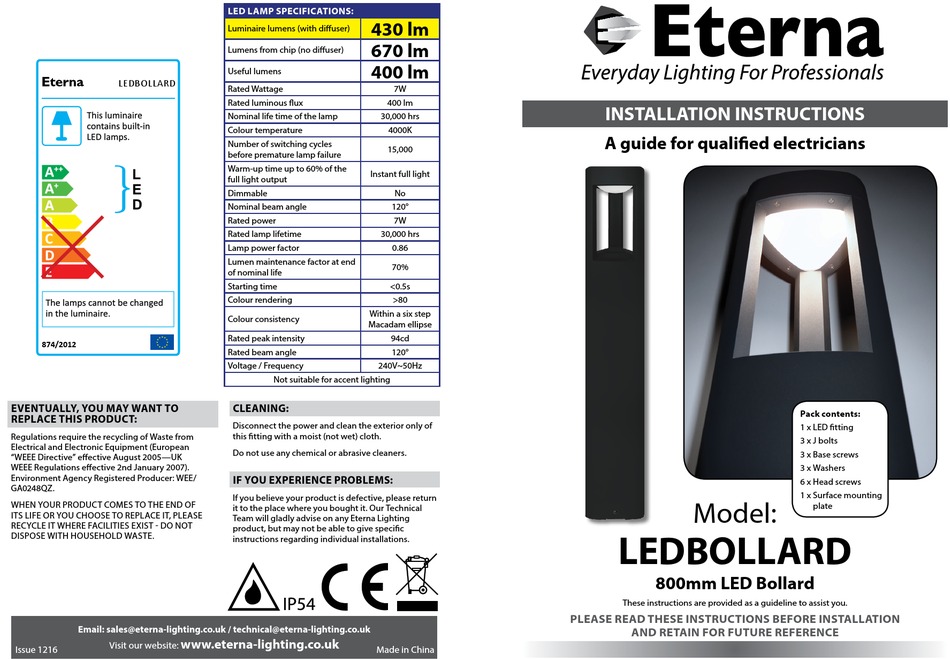

Eterna LEDBOLLARD Installation Instructions

MODELNO.
LEDBOLLARD
874/2012
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Email: sales@eterna-lighting.co.uk / technical@eterna-lighting.co.uk
www.eterna-lighting.co.uk
Visit our website:
Issue 1216

LED LAMP SPECIFICATIONS:

430 lm
Luminaire lumens (with diffuser)
670 lm
Lumens from chip (no diffuser)
400 lm
Useful lumens
Rated Wattage 7W
Rated luminous flux 400 lm
Nominal life time of the lamp 30,000 hrs
Colour temperature 4000K
Number of switching cycles
15,000
before premature lamp failure
Warm-up time up to 60% of the
Instant full light
full light output
Dimmable No
Nominal beam angle 120°
Rated power 7W
Rated lamp lifetime 30,000 hrs
Lamp power factor 0.86
Lumen maintenance factor at end
70%
of nominal life
Starting time <0.5s
Colour rendering >80
Within a six step
Colour consistency
Macadam ellipse
Rated peak intensity 94cd
Rated beam angle 120°
Voltage / Frequency 240V~50Hz
Not suitable for accent lighting

CLEANING:

Disconnect the power and clean the exterior only of
this fitting with a moist (not wet) cloth.
Do not use any chemical or abrasive cleaners.

IF YOU EXPERIENCE PROBLEMS:

If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
Made in China
Installation INSTRUCTIONS
A guide for qualified electricians
Model:
LEDBOLLARD
800mm LED Bollard
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE

Pack contents:

1 x LED fitting
3 x J bolts
3 x Base screws
3 x Washers
6 x Head screws
1 x Surface mounting
plate
