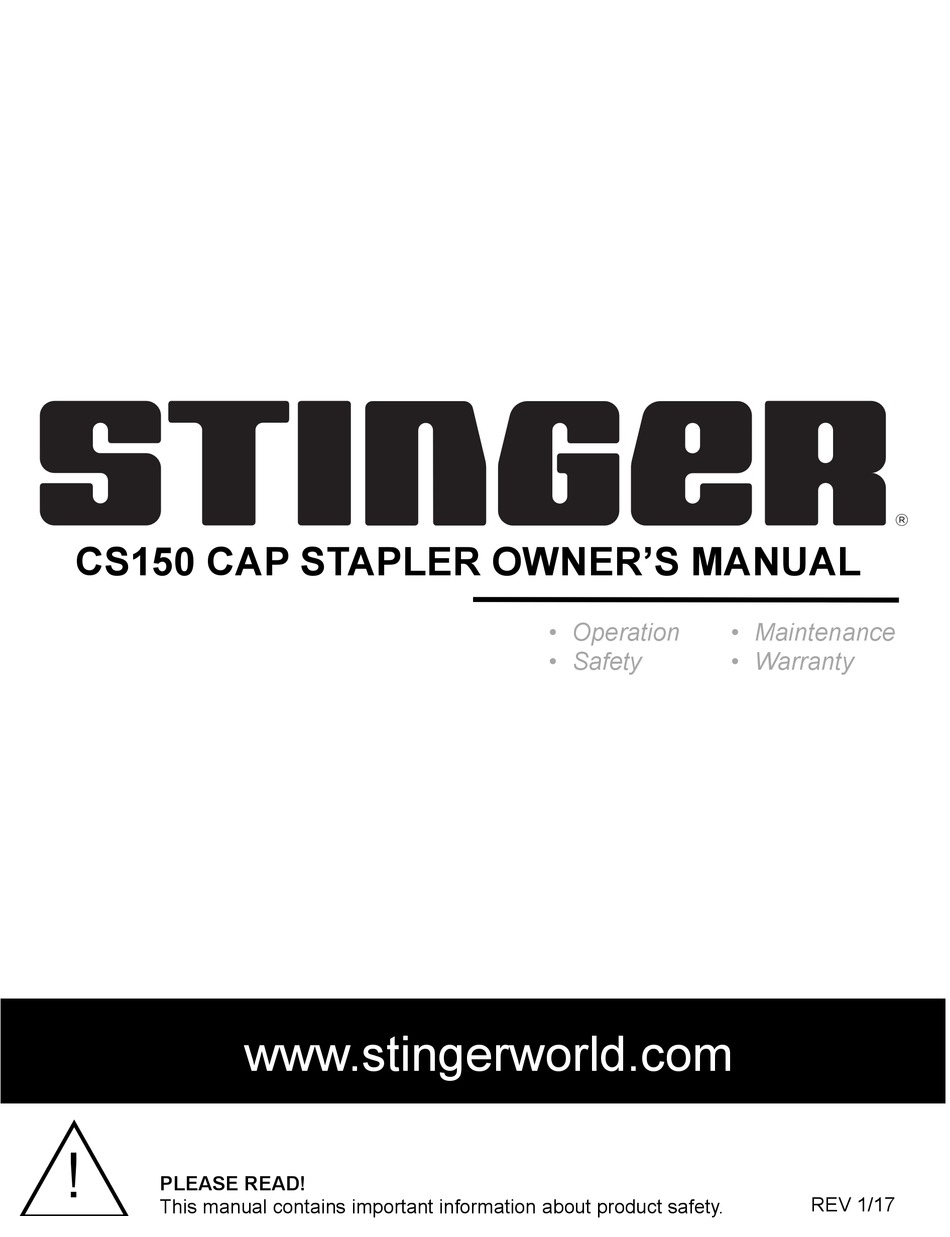

- Page 1 ® CS150 CAP STAPLER OWNER’S MANUAL • Operation • Maintenance • Safety • Warranty www.stingerworld.com PLEASE READ! REV 1/17 This manual contains important information about product safety.

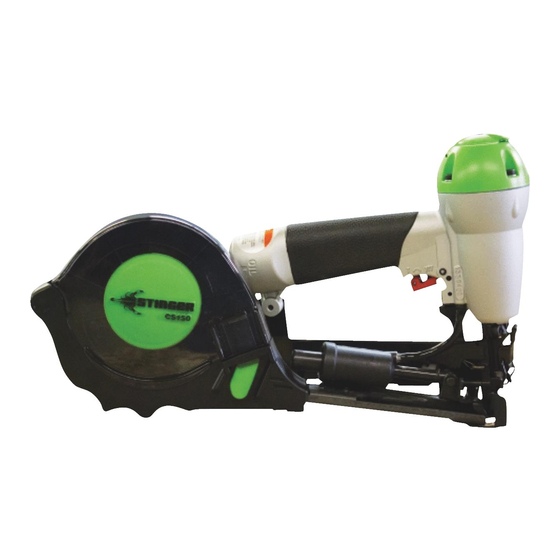

- Page 2 CS150 Cap Stapler WELCOME TO STINGER Congratula*ons on purchasing the STINGER CS150 Cap Stapler. You have selected a brand and a tool that you can count on to deliver best prac*ce installa*on, and perform job a=er job. Please take the *me to read and understand the informa*on contained in this Owner’s Manual before opera*ng or maintaining the STINGER CS150 Cap Stapler. The CS150 is intended for securing housewrap, foamboard and roofing felt only. Improper use of the CS150 could result in serious injury or even death. Most accidents occur because of the failure to observe basic safety rules and precau*ons, which are outlined in the “Important Informa*on” sec*on of this manual. This Owner’s Manual should be available to anyone who plans to operate the CS150.
-
Page 3: Table Of Contents
CS150 Cap Stapler TABLE OF CONTENTS • Important Information • Tool Specifications • Loading the Tool • Operating the Tool • STINGER CS150 Schematic • STINGER CS150 Parts List • Maintenance and Storage • Warranty • Troubleshooting... -
Page 4: Important Information
• To prevent accidental injuries: – Handle the tool with care – Always assume that the tool contains fasteners – Always disconnect the air hose from the STINGER CS150 when: • loading staples and/or caps • performing inspection, maintenance or repair • ... - Page 5 CS150 Cap Stapler IMPORTANT INFORMATION AIR SUPPLY AND CONNECTIONS • Use only clean, regulated compressed air as a power source for this tool. Do not use boLle gases, combus*ble gases or oxygen as a power source for the tool as the tool may explode. • Do not use air supply pressures that exceed 105 PSI. Exceeding the recommended maximum opera*ng air pressure will greatly increase tool wear. • The air supply must be capable of maintaining the opera*ng air pressure of the tool. Pressure drops in the air supply can reduce the tool’s driving power. • Use a pressure regulator and gauge to allow visual inspec*on of the air pressure being delivered to the tool. • Use air hoses that have rated pressures of up to 150% of the maximum pressure that can be generated by the power source. The supply hose should contain fiSngs that will provide quick disconnec*ng from the male plug on the tool. • Use quick connect fiSngs that allow the tool to be unhooked from the air supply quickly and easily. • Do not use fiSngs that will not allow the tool to exhaust when the air supply is disconnected.
- Page 6 STINGER CS150 ® Cap Stapler. Never use any fasteners that are not specified for use in this tool. The CS150 holds 1 coil of plastic caps (200 caps) and 2 strips of staples (100 staples each).
-
Page 7: Tool Specifications
CS150 Cap Stapler TOOL SPECIFICATIONS Operating pressure 95-105 psi Weight 4.2lbs Staple capacity 200 staples (2-100 count strips) Cap capacity 200 plastic collated caps (1 reel) Air inlet ¼” Fasteners STINGER StaplePac only. Each 2000 count StaplePac consists of ®... -
Page 8: Loading The Tool
CS150 Cap Stapler LOADING THE TOOL FOR USE WITH 7/8”, 1-1/4”, or 1-1/2” STINGER STAPLEPAC ® CAP STAPLES ONLY • Disconnect air. Open the Magazine Cover by pushing the green Cover Release Tab and lifting. • Place cap reel in Magazine. Make sure the front end of the cap coil is placed over the cap guide area of the Magazine. -
Page 9: Operating The Tool
CS150 Cap Stapler OPERATING THE TOOL 1. Do not use tool prior to reading the STINGER CS150 Owner’s Manual. 2. Read warning label(s) on the tool. 3. Visually inspect the tool for worn or damaged parts. 4. Wear appropriate eye and ear protection. - Page 10 CS150 Cap Stapler OPERATING THE TOOL 11. Cycle the tool on a scrap work piece to evaluate the depth of penetration by the fastener into the work piece. 12. To adjust the depth of penetration, regulate the air pressure at the regulator and/or disconnect the air hose, adjust the depth control screw, connect the air hose, and cycle the tool on a scrap work piece to evaluate the adjustment.
-
Page 11: Stinger Cs150 Schematic
CS150 Cap Stapler STINGER CS150 SCHEMATIC... -
Page 12: Stinger Cs150 Parts List
CS150 Cap Stapler STINGER CS150 PARTS LIST Ref No. Item No. Description Ref No. Item No. Description 0136665 SCREW 0135913 O-RING 0135851 WASHER 0135914 SPRING 0135951 EXHAUST DEFLECTOR 0135915 PISTON STOP 0137973 O-RING 0135916 FEED PISTON COVER 0135854 WASHER 0135917 RETAINING RING... -
Page 13: Maintenance And Storage
Whenever repairs or replacement of parts inside the body occur, check the piston “O” ring for adequate grease lubrication. 4. Never use any parts other than genuine STINGER replacement parts. To order, call 800-746-5659. 5. Periodically clean the Magazine and Nose of the tool with a mild solvent. -
Page 14: Warranty
CS150 Cap Stapler WARRANTY WARRANTY ITEMS 1. Warranty for cap assemblies, cas*ngs and housing cas*ngs is one year. 2. Warranty for bumpers, “O” rings, driver blades and piston rings is not applicable as they are normal wearing parts whose life is dependent on applica*on. 3. Warranty for all other parts is 90 days. WARRANTY CONDITIONS 1. The beginning date in which the warranty is in force is the date of purchase. 2. The warranty is not transferable. 3. The warranty is voided by any of the following: a. Abuse, misuse, or damage to the tool b. Use of parts other than genuine STINGER parts c. Use of fasteners not designated for use in the tool d. Modifica*ons to the tool that alter the original func*on or intent of use of the tool by anyone other than Na*onal Nail 4. Na*onal Nail Corp. retains the right to replace or repair any warranty items it deems necessary. -
Page 15: Troubleshooting
CS150 Cap Stapler TROUBLESHOOTING Disconnect the air hose from the tool when performing inspections, maintenance or repairs. PROBLEM: CORRECTION: 1. Tool operates, but no fasteners are • Check Magazine for proper fasteners. driven. Fasteners should slide freely in and out of the magazine. 2. Cap leaks air. • Tighten cap screws. 3. Fasteners jam in nose of tool. • Remove fasteners from Magazine. • Open Quick-Clear™ Lever (if applicable), remove jammed fastener and close Latch. • Load tool. 4. Weak drive. • Check to make sure there is adequate air supply. 5. ... - Page 16 Contact Inside Sales at 800-746-5659 to place an order for replacement parts. Visit our website at www.stingerworld.com to learn more about our products and services. 2964 Clydon SW, Grand Rapids MI 49519, USA Phone: 800-968-6245 Fax: 616-531-5970 www.nationalnail.com...
