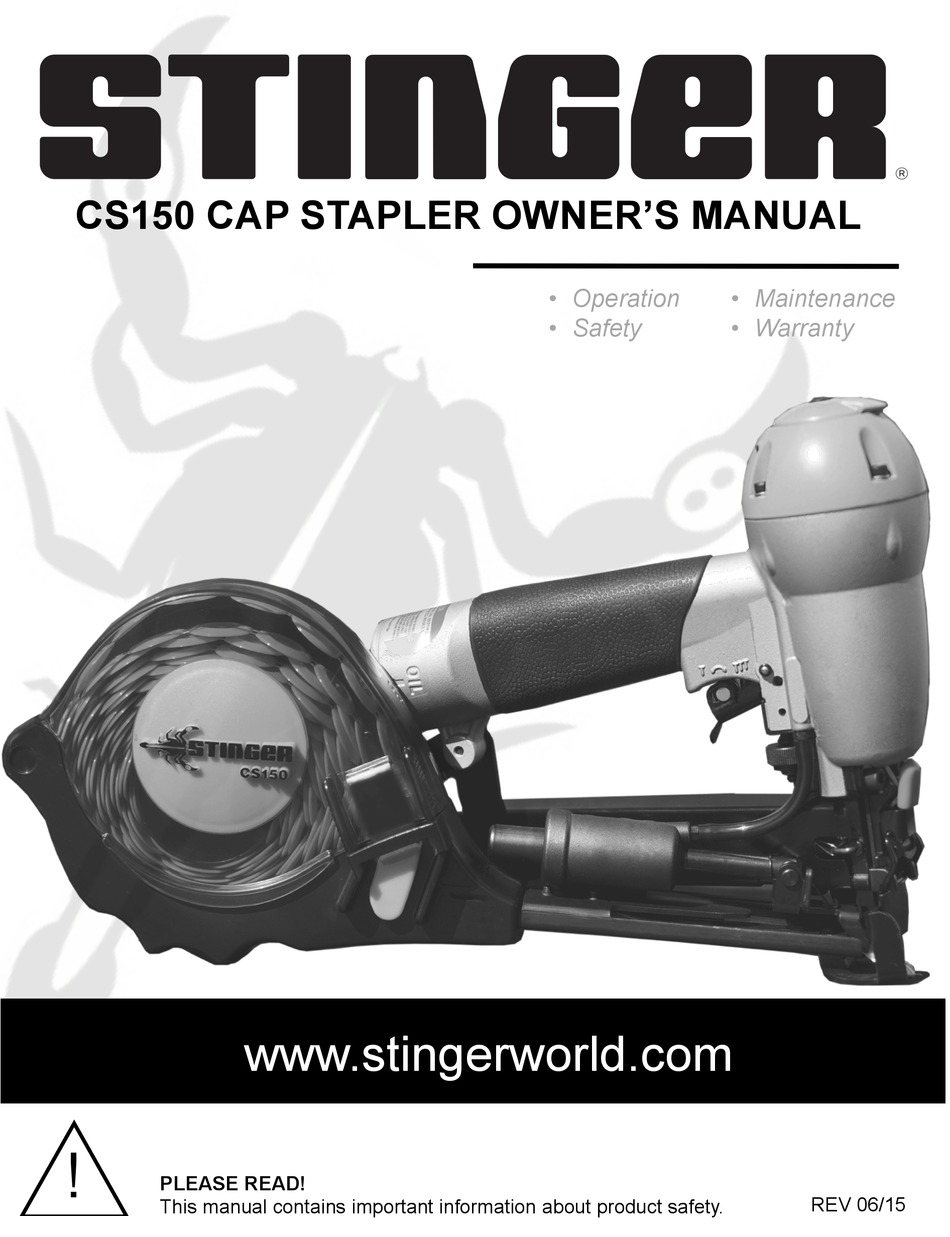

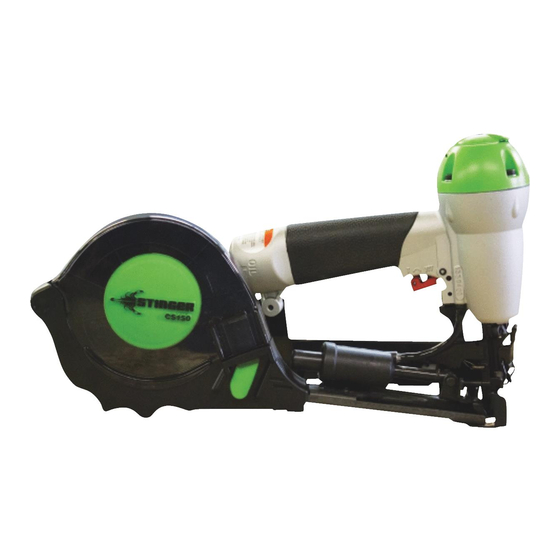

- Page 1 ® CS150 CAP STAPLER OWNER’S MANUAL • Operation • Maintenance • Safety • Warranty www.stingerworld.com PLEASE READ! REV 06/15 This manual contains important information about product safety.
- Page 2 CS150 Cap Stapler WELCOME T O S TINGER Congratula*ons o n p urchasing t he S TINGER C S150 C ap S tapler. Y ou h ave s elected a b rand ...
-
Page 3: Table Of Contents
CS150 Cap Stapler TABLE O F C ONTENTS • Important Information • Tool Specifications • Loading the Tool • Operating the Tool • STINGER CS150 Schematic • STINGER CS150 Parts List • Maintenance and Storage • Warranty • Troubleshooting... -
Page 4: Important Information
• To prevent accidental injuries: – Handle the tool with care – Always assume that the tool contains fasteners – Always disconnect the air hose from the STINGER CS150 when: • loading staples and/or caps • performing inspection, maintenance or repair • ... - Page 5 CS150 Cap Stapler IMPORTANT I NFORMATION AIR S UPPLY A ND C ONNECTIONS • Use o nly c lean, r egulated c ompressed a ir a s a p ower s ource f or t his t ool. D o n ot u se b oLle g ases, ...
- Page 6 STINGER CS150 ® Cap Stapler. Never use any fasteners that are not specified for use in this tool. The CS150 holds 1 coil of plastic caps (200 caps) and 2 strips of staples (100 staples each).
-
Page 7: Tool Specifications
CS150 Cap Stapler TOOL S PECIFICATIONS Operating pressure 95-105 psi Weight 4.2lbs Staple capacity 200 staples (2-100 count strips) Cap capacity 200 plastic collated caps (1 reel) Air inlet ¼” Fasteners STINGER StaplePac only. Each 2000 count StaplePac consists of ®... -
Page 8: Loading The Tool
CS150 Cap Stapler LOADING T HE T OOL FOR USE WITH 7/8”, 1-1/4”, or 1-1/2” STINGER STAPLEPAC ® CAP STAPLES ONLY • Disconnect air. Open the Magazine Cover by pushing the green Cover Release Tab and lifting. -
Page 9: Operating The Tool
CS150 Cap Stapler OPERATING T HE T OOL 1. Do not use tool prior to reading the STINGER CS150 Owner’s Manual. 2. Read warning label(s) on the tool. 3. Visually inspect the tool for worn or damaged parts. - Page 10 CS150 Cap Stapler OPERATING T HE T OOL 11. Cycle the tool on a scrap work piece to evaluate the depth of penetration by the fastener into the work piece. 12. To adjust the depth of penetration, regulate the air pressure at the regulator and/or disconnect the air hose, adjust the depth control screw, connect the air hose, and cycle the tool on a scrap work piece to evaluate the adjustment.
-
Page 11: Stinger Cs150 Schematic
CS150 Cap Stapler STINGER C S150 S CHEMATIC ... -
Page 12: Stinger Cs150 Parts List
CS150 Cap Stapler STINGER C S150 P ARTS L IST Ref No. Item No. Description Ref No. Item No. Description 0136665 SCREW 0135913 O-RING 0135851 WASHER 0135914 SPRING 0135951 EXHAUST DEFLECTOR 0135915 PISTON STOP 0137973... -
Page 13: Maintenance And Storage
Whenever repairs or replacement of parts inside the body occur, check the piston “O” ring for adequate grease lubrication. 4. Never use any parts other than genuine STINGER replacement parts. To order, call 800-746-5659. 5. Periodically clean the Magazine and Nose of the tool with a mild solvent. -
Page 14: Warranty
CS150 Cap Stapler WARRANTY WARRANTY I TEMS 1. Warranty f or c ap a ssemblies, c as*ngs a nd h ousing c as*ngs i s o ne y ear. ... -
Page 15: Troubleshooting
CS150 Cap Stapler TROUBLESHOOTING Disconnect the air hose from the tool when performing inspections, maintenance or repairs. PROBLEM: CORRECTION: 1. Tool o perates, b ut n o f asteners a re ... -
Page 16: Replacement Parts
Contact Inside Sales at 800-746-5659 to place an order for replacement parts. Visit our website at www.stingerworld.com to learn more about our products and services. 2964 Clydon SW, Grand Rapids MI 49519, USA Phone: 800-968-6245 Fax: 616-531-5970 www.nationalnail.com...
