5
Installation of ZigBee Module

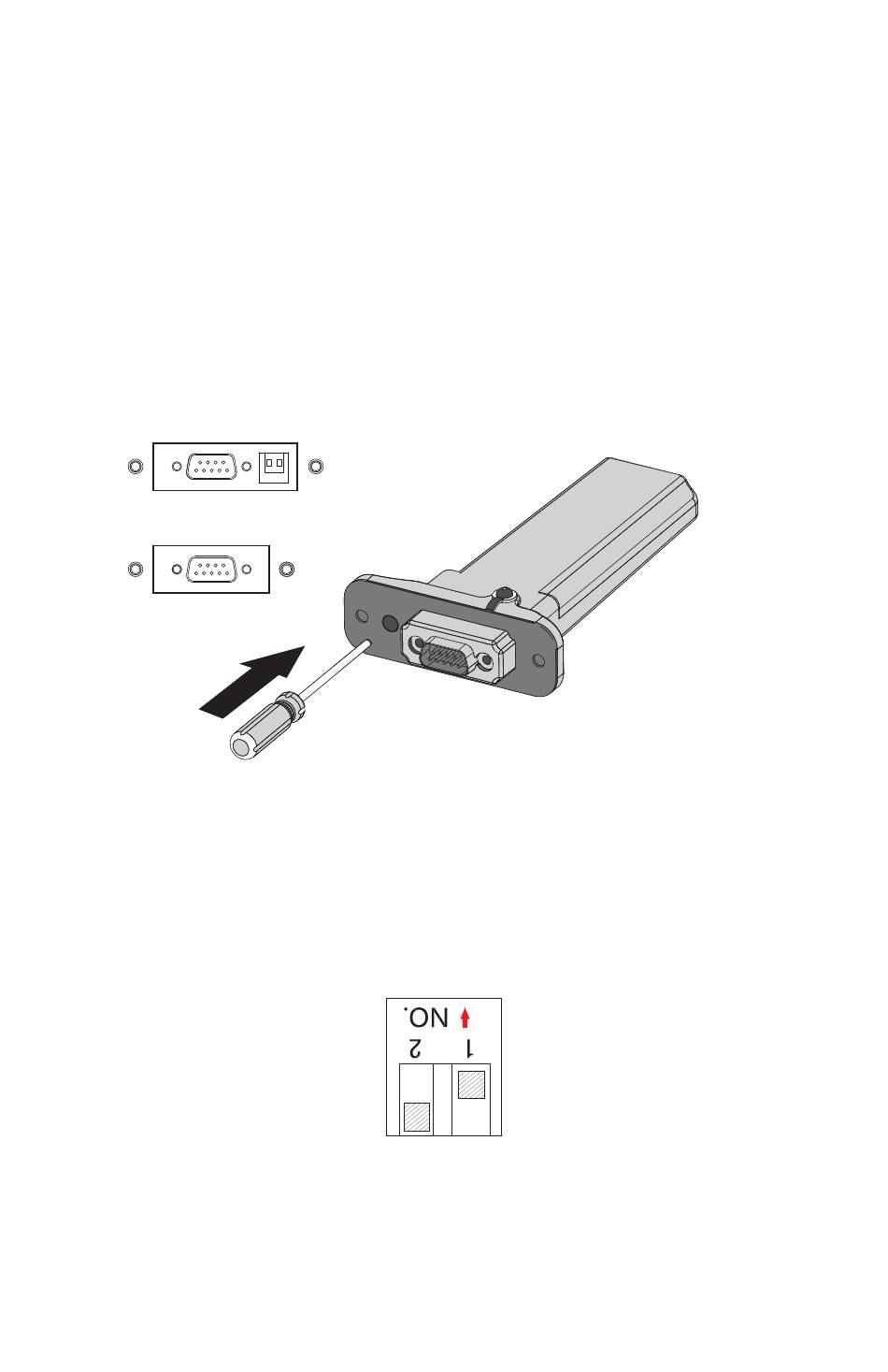

1. Plug the ZigBee Module to inverter via Rs232.
The RS232 port of Growatt inverter has two specifications.
If the RS232 port is compliant with the specification (1), please turn on the DIP
switch, then plug the ZigBee Module to the inverter directly via the RS232 and lock
screw.
If the RS232 port is compliant with the specification (2), please pry open the rubber
plug in the waterproof cushion, then plug the ZigBee Module to the inverter and lock
screw.
(1)
RS-232
(2)
RS-232
11
