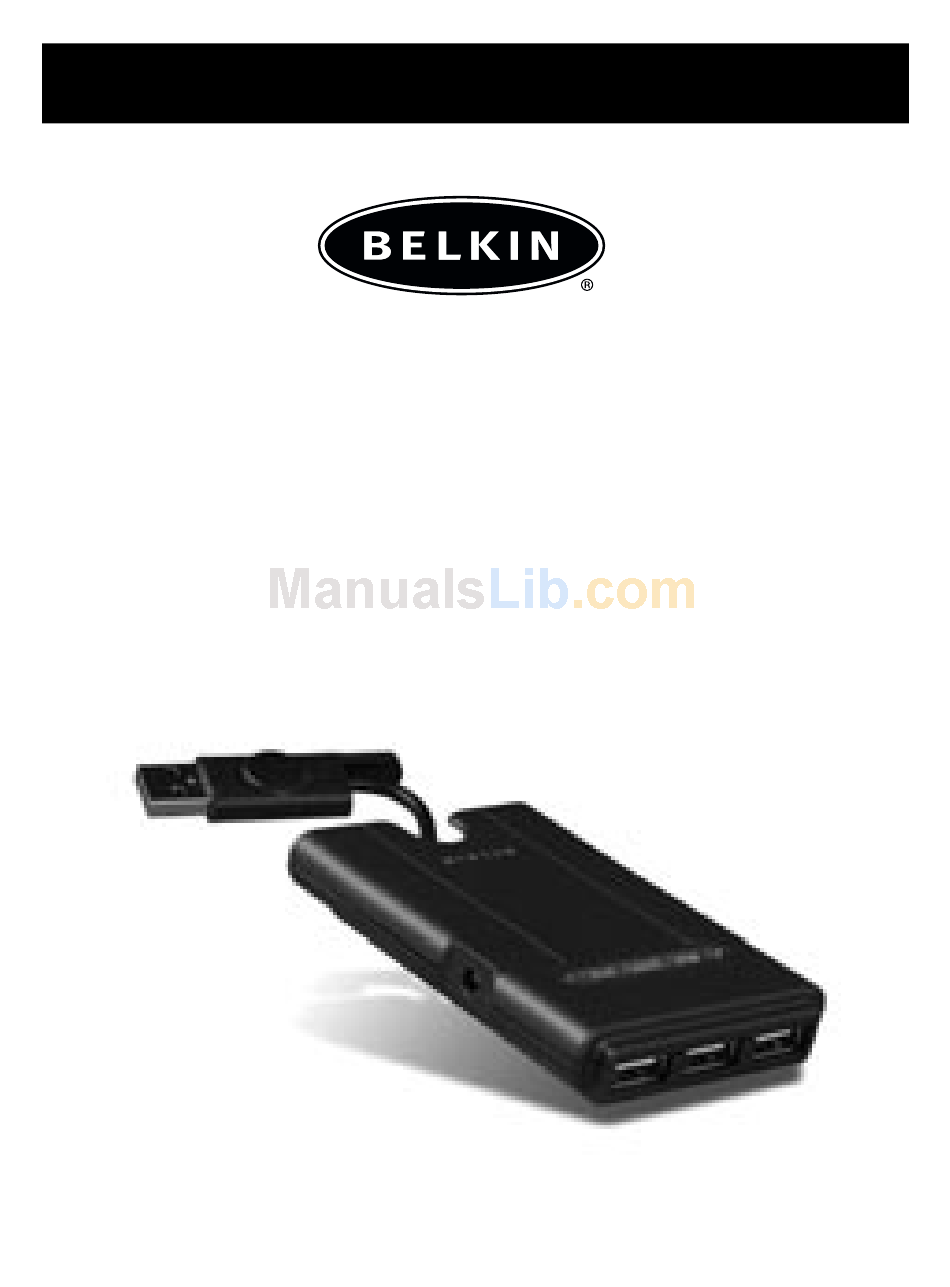

- Page 1 Hi-Speed USB Pocket Hub User Manual F5U217 P74081-A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction .........1 Features . -
Page 3: Introduction
INTRODUCTION Congratulations and thank you for purchasing the Belkin Hi-Speed USB Pocket Hub (the Hub). The Hub provides three downstream USB ports that are compatible with both USB 1.1 (low-speed and full-speed) devices, as well as with USB 2.0 (high-speed) devices. -
Page 4: Features
• Compliant with Universal Serial Bus specification 2.0 (data rate 1.5/12/480Mbps) • Backward-compatible with Universal Serial Bus specification 1.1 (data rate 1.5/12Mbps) • Compatible with Windows • Approved by USB Implementers Forum (USB-IF) • Supports Plug-and-Play specifications • Supports hot swapping of USB devices •... -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Upstream Ports Downstream Ports Per-Port Voltage Per-Port Current Power Mode Operating Temperature Storage Temperature Enclosure Power Supply Main Power LED Color Definitions: Port-Status LED Color Definitions: Amber Green Blinking Off/Green Blinking Off/Amber DC +5V 500mA (max) Self-powered 5º C ~ 40º C -20º... -
Page 6: Installation
1. Plug the AC adapter into a wall outlet or surge suppressor. Plug the DC connector into the DC power jack found on the side of the Hub. Note: The Hub may be used without the power supply when connecting low-power devices such as keyboards and mice. Remove the USB A cable connector from its built-in storage bay, then plug it into the downstream port of your computer, or downstream port of another hub (see Fig. - Page 7 Hi-Speed USB hub support, please check with your PCI card vendor for an updated USB 2.0 driver. The Belkin Hi-Speed USB driver supports all competitive cards based on the NEC host controller with the exception of Adaptec. The most recent Belkin driver is available at www.belkin.com.
-
Page 8: Information
Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. - Page 9 Fax: +61 (0) 2 4372 8603 Belkin Tech Support Europe: Australia: 1800 666 040 © 2002 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. 310.898.1100 ext. 2263 800.223.5546 ext. 2263 00 800 223 55 460...
