PacketStar
PSAX 1-Port Channelized OC-3/STM-1 CES
Module
User Guide
Model 23N13 (Single-Mode) and 23N12 (Multimode)
®
for the PacketStar
PSAX Multiservice Media Gateways
Issue 1, July 2005
System Software Release 11.0.0
Doc. No.: 255-700-714R11.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PacketStar PSAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lucent PacketStar PSAX

Summary of Contents for Lucent PacketStar PSAX

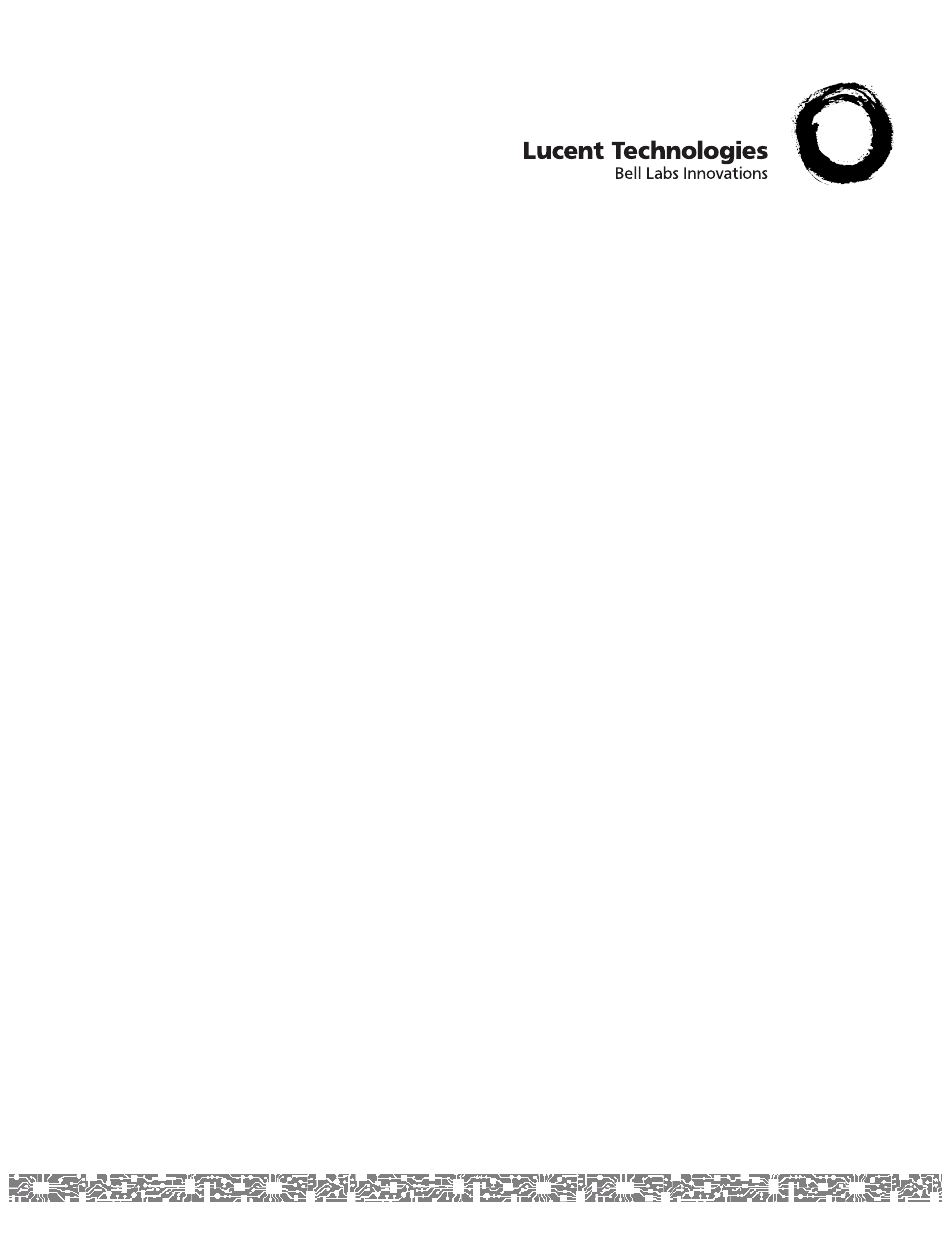

  • Page 1 Top of Guide ® PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide Model 23N13 (Single-Mode) and 23N12 (Multimode) ® for the PacketStar PSAX Multiservice Media Gateways Issue 1, July 2005 System Software Release 11.0.0 Doc. No.: 255-700-714R11.0...

  • Page 2 Copyright © 2005 by Lucent Technologies. All rights reserved. For trademark, regulatory compliance, and related legal information, see the "Legal Notices, Safety, and Regulatory Information" section.

  • Page 3: Legal Notices, Safety, And Regulatory Information

    This material is protected by the copyright laws of the United States and other countries. It may not be reproduced, distributed, or altered in any fash- ion by any entity (either internal or external to Lucent Technologies), except in accordance with applicable agreements, contracts or licensing, without the express written consent of the originating organization and the business management owner of the material.

  • Page 4: Safety Information

    • PSAX 1000 system • PSAX 1250 system • PSAX 2300 system • PSAX 4500 system Refer to the PacketStar PSAX 1000, PSAX 1250, PSAX 2300, or PSAX 4500 installation guide for details on safety and EMC standards compliance. ® PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0...

  • Page 5: Table Of Contents

    About the PacketStar PSAX Product Family ........
  • Page 6 Table of Contents Technical Support ............1-9 Before You Begin.
  • Page 7 Table of Contents Configuring the STM-1 Mode Ports and Channels Using the Console . . . 4-1 Overview of This Chapter ..........4-1 Preparatory Steps Before Configuring the Module.
  • Page 8 Table of Contents Lightwave Safety Precautions for Optical Fiber Telecommunication Systems ... B-2 Laser Safety Precautions for Enclosed Systems ....... . . B-3 Laser Safety Precautions for Unenclosed Systems .

  • Page 9: List Of Figures

    List of Figures Field Description Table Example ..........1-6 Main Menu Help Window .
  • Page 10 List of Figures Loopback Configuration Options ..........4-5 Console Interface Main Menu (Equipment Configuration Selected) .
  • Page 11 List of Tables Text Conventions ............1-5 Command Description Table Example .
  • Page 12 List of Tables 3-26 Channelized OC-3 Virtual DS1 Port Statistics Window Field Descriptions ....3-55 3-55 3-27 Channelized OC-3/STM-1 STS1/AU-3 Port Statistics Window Commands ....3-57 3-57 3-28 Channelized OC-3/STM-1 STS1/AU-3 Port Statistics Window Field Descriptions .
  • Page 13 List of Tables Interface Type by I/O Module Type ..........A-4 Module Alarm Status Descriptions on the Equipment Configuration Window .
  • Page 14 List of Tables ® PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0 PacketStar 255-700-714R11.0...

  • Page 15: Getting Started

    Getting Started Purpose of This Guide ® The PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide provides a description of the 1-Port Channelized OC-3/STM-1 CES. It also provides information on how to configure the module ports and channels. ® The PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide provides a description of the 1-Port Channelized OC-3/STM-1 CES modules...

  • Page 16: Related Reading

    Bell Laboratories. Our legacy and our spirit of innovation allow Lucent to provide our custom- ers with the tools needed to communicate effectively, any time and any- where, and to integrate the latest technologies into real-life solutions that help make business work.

  • Page 17: Psax 1000 Multiservice Media Gateway

    About the PacketStar PSAX Product Family PSAX 1000 Multiservice Media Gateway The PacketStar PSAX 1000 Multiservice Media Gateway is designed to provide a full range of central office-based multiservice media gateway functions in a small, competitively-priced package suitable for customer premise deploy- ment.

  • Page 18: Psax 4500 Multiservice Media Gateway

    PSAX 4500 Multiservice Media Gateway The PacketStar PSAX 4500 Multiservice Media Gateway provides carrier-class reliability, with an unmatched range of service capabilities, end-to-end traffic prioritization, “any-service, any-channel” flexibility, and breakthrough voice technology.

  • Page 19: Icons And Symbols

    Chapter 1 Getting Started Document Conventions Table 1-1. Text Conventions Appearance How it is used SANS SERIF BOLD, ALL CAPS Labels on module panels, chassis faceplates, or other hardware Message text displayed on the user interface window Fixed-width normal • Button name (GUI interface) or command name Serif bold (console interface) on the user interface window •...

  • Page 20: Use Of Field Description Tables

    Chapter 1 Getting Started General Document Navigational Guidelines Table 1-2. Command Description Table Example Command Function Bring All Interfaces Brings the out-of-service configured interfaces to in-service status. Into Service Note: In GR-303 configuration, it is critical to bring into service only those channels actively configured with DS1 ports.

  • Page 21: System Responses To Selecting Options, Fields, Or Commands

    Chapter 1 Getting Started General Document Navigational Guidelines ~ Press the Up, Down, Left, or Right Arrow to highlight (reverse video image) the option name, field name, or command you want to select and press Enter as many times as necessary until the field choice you want is displayed.

  • Page 22: Help Information

    Chapter 1 Getting Started Help Information On all the PSAX system windows, each command or menu option has an underlined letter. The control key plus an underlined letter is a shortcut to that command or menu option. You can use the navigation keys and hotkeys with the Caps Lock key on or off.

  • Page 23: Technical Support

    4 To exit Help and return to the current console window, press the Enter key. Technical Support If you experience a problem with the 1-Port Channelized OC-3/STM-1 CES modules, refer to the Lucent Technologies Product Warranty Registration Informa- tion, which accompanied your shipment, for instructions on obtaining sup- port in your area. ®...

  • Page 24: Before You Begin

    PSAX 1-Port Channelized OC-3/STM-1 CES Mod- ule User Guide, please complete the comment card at the following web address: http://www.lucent-info.com/comments/ You can also email your comments to comments@lucent.com. Include the following information: ® Title: PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide Release number: Release 11.0.0...

  • Page 25: Module Description

    Module Description Overview of This Chapter This chapter describes the 1-Port Channelized OC-3/STM-1 CES modules in the following sections: • “Functional Description” • “Software Features” on page 2-2 • “Module Specifications” on page 2-3 • “Module Status Indicators” on page 2-5 Functional Description The 1-Port Channelized OC-3/STM-1 CES modules (23N13 (SM) and 23N12 (MM)) offer two operating modes:...

  • Page 26: Software Features

    Chapter 2 Module Description Software Features Figure 2-1 shows the 1-Port Channelized OC-3/STM-1 CES modules. FAIL FAIL ACTIVE ACTIVE Multimode Single-mode (23N13) (23N12) Figure 2-1. 1-Port Channelized OC-3/STM-1 CES Modules Software Features The 1-Port Channelized OC-3/STM-1 CES module supports the following services: •...

  • Page 27: Automatic Protection Switching (Aps) Feature

    Chapter 2 Module Description Module Specifications Automatic Protection Switching (APS) Feature Module pairs may be loaded in all I/O slots of all PSAX chassis. In the PSAX 1250 chassis (1.2 Gbps backplane capacity), you may load a maximum of 8 modules in a non-APS configuration, or a maximum of 4 pairs in an APS configuration.

  • Page 28: Optical Specifications

    Chapter 2 Module Description Module Specifications Table 2-1. Physical Hardware Specifications for the PSAX I/O Module (Continued) Specification Description Weight 0.26 kg (0.6 lb.) Weight 0.32 kg (0.7 lb.) 0° to 50° C (32° to 122° F) Operating temperature range for all the PSAX 1250, PSAX 2300, and PSAX 4500 systems For AC-powered PSAX 1000 systems:...

  • Page 29: Power Consumption And Memory Allocation Specificaions

    Chapter 2 Module Description Module Status Indicators Table 2-2. 1-Port Channelized OC-3/STM-1 CES Module Optical Specifications (Continued) Module Feature Ch OC-3/STM-1 CES SM Ch OC-3/STM-1 CES MM Transmitter maximum optical output -8 dBm -14 dBm power (average) Receiver minimum optical input power -31 dBm -30 dBm (average)

  • Page 30: Led Indicators For The 1-Port Channelized Oc-3/Stm-1 Ces Modules

    Chapter 2 Module Description Module Status Indicators Table 2-4. LED Indicators for the 1-Port Channelized OC-3/STM-1 CES Modules Module Status Initial One or More No Cable on Configured Cable on Port Power-On Configured Ports Port Ports • Lights when FAIL (red) Lights Lights...

  • Page 31: Configuring The Oc-3 Mode Ports And Channels Using The Console

    Configuring the OC-3 Mode Ports and Channels Using the Console Overview of This Chapter This chapter describes how to set the values for the port and channel config- uration for the 1-Port Channelized OC-3/STM-1 CES modules (23N12 (MM)/23N13 (SM)). Preparatory Steps Before Configuring the Module Before beginning to configure the 1-Port Channelized OC-3/STM-1 CES module, be sure you have performed the following steps: ®...

  • Page 32: Packetstar ® Psax 1-Port Channelized Oc-3/Stm-1 Ces Module User Guide, Issue

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Setting Up the Working and Protection Modules FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE...
  • Page 33 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Setting Up the Working and Protection Modules FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE...

  • Page 34: Loopback Option

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Loopback Option PSAX 2300 FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE OC-3c...
  • Page 35 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Loopback Option Figure 3-4. Loopback Configuration Options The following modules offer loopback capability: 20N73 1-Port OC-3c 1+1 APS Single-Mode 20N72 1-Port OC-3c 1+1 APS Multimode 23N02 3-Port Unstructured DS3/E3 CES 23N12 1-Port Channelized OC-3/STM-1 CES Multimode 23N13...

  • Page 36: Obtaining General Module Data And Accessing Ports And Channels

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Obtaining General Module Data and Accessing Ports and Channels This section describes how to obtain product, model, version, and serial num- ber data about a module from the Equipment Configuration window.

  • Page 37: Sample Equipment Configuration Window On A Psax 4500 System

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Figure 3-6. Sample Equipment Configuration Window on a PSAX 4500 System (Page 1) Figure 3-7. Sample Equipment Configuration Window on a PSAX 1000, PSAX 2300, or PSAX 4500 System (Page 2) Commands The commands on this window have the following functions.

  • Page 38: Equipment Configuration Window Commands

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Table 3-1. Equipment Configuration Window Commands Command Function Update Display Refreshes the current status of the modules in the PSAX chassis. Page Down Displays the second page of the Equipment Configuration win- dow.

  • Page 39: Alarm Status Descriptions For Modules On The Equipment Configuration Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Table 3-2. Equipment Configuration Window Field Descriptions (Continued) Field Name Field Value Description SW # Default: N/A Displays the version of PSAX system software with which the modules’...

  • Page 40: Configuring All Channels On An Oc-3 Port

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on an OC-3 Port Table 3-3. Alarm Status Descriptions for Modules on the Equipment Configuration Window (Continued) Module Type Alarm Status Description Affected Hexadecimal format, I/O and Server Indicates that one or more ports on the module in this Example:...

  • Page 41: Channelized Oc-3 Port Configuration Window (Before Configuration)

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on an OC-3 Port 3 After you have set all the values, select the Apply Port Configuration command. A line status message displays: The port and channel configuration has been applied. See Figure 3-9.

  • Page 42: Channelized Oc-3 Port Configuration Window (After Configuration)

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on an OC-3 Port Figure 3-9. Channelized OC-3 Port Configuration Window (After Configuration) Table 3-4. Channelized OC-3 Port Configuration Window Commands Command Function STS-1/AU-3 Port Configuration (Right Panel) Configure STS-1 or AU-3 Virtual Displays the OC-3 STS1 or the STM-1 AU-3 Port Configura- Port 1...

  • Page 43: Channelized Oc-3 Or Stm-1 Ces Port Configuration Window Field Descriptions

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on an OC-3 Port Table 3-5. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions Field Name Field Value Description Loopback Config Default: NoLoop Specifies whether and what kind of loopback configuration is used on the signal on this connection.

  • Page 44: Channelized Oc-3 Or Stm-1 Ces Port Configuration Window Field Descriptions

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on an OC-3 Port Table 3-5. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description Displays the contents of the SSM bits transmitted by all the [SSM TX] Default: QL_DNU OCn/STMn module ports.
  • Page 45 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on an OC-3 Port Table 3-5. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description Displays the slot number and status of the working module [WorkingSlot] Default: Active in a 1+1 APS configured module pair.

  • Page 46: Accessing The Channelized Oc3 Sts1 Port Configuration Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Accessing the Channelized OC3 STS1 Port Configuration Window Table 3-5. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description J2 Trace Default: Disabled Specifies whether the J2 Trace feature is enabled or disabled for this port.

  • Page 47: Configuring All Channels On A Virtual Ds1 Port On The Channelized

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on a Virtual DS1 Port on the Channelized OC-3 CES Module (No Strapping) Table 3-6. Channelized OC-3 STS-1/STM-1 AU-3 Port Configuration Window Commands Command Function Reset Display Resets the fields to the last set of saved values.

  • Page 48: Channelized Oc-3 Virtual Ds1 Port Configuration Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on a Virtual DS1 Port on the Channelized OC-3 CES Module (No Strapping) 2 Select the values for the fields on this window. Since you are configuring all the channels on the virtual DS1 port, you leave the default must...

  • Page 49: Channelized Oc-3 Sm Virtual Ds1 Port Configuration Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on a Virtual DS1 Port on the Channelized OC-3 CES Module (No Strapping) Table 3-8. Channelized OC-3 Virtual DS1 Port Configuration Window Commands (Continued) Command Function Delete All Interfaces On This Deletes the configured interfaces for all channels on the specified...
  • Page 50 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on a Virtual DS1 Port on the Channelized OC-3 CES Module (No Strapping) Table 3-9. Channelized OC-3 SM Virtual DS1 Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description...
  • Page 51 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring All Channels on a Virtual DS1 Port on the Channelized OC-3 CES Module (No Strapping) Table 3-9. Channelized OC-3 SM Virtual DS1 Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description...

  • Page 52: Configuring The Channelized Oc-3 Virtual Ds1 Channels

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the Channelized OC-3 Virtual DS1 Channels Table 3-9. Channelized OC-3 SM Virtual DS1 Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description CT Mode Default: Four-wire This field is currently not supported.
  • Page 53 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the Channelized OC-3 Virtual DS1 Channels dow is displayed (see Figure 3-12). Table 3-10 describes the commands on the window. Table 3-11 describes the configurable fields on the win- dow.

  • Page 54: Channelized Oc-3 Virtual Ds1 Channel Configuration Window For Channelization

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the Channelized OC-3 Virtual DS1 Channels Figure 3-12. Channelized OC-3 Virtual DS1 Channel Configuration Window for Channelization Disabled Default Table 3-10. Channelized OC-3/STM-1 Virtual DS1/E1 Channel Configuration Window Commands Command Function Apply Configuration...

  • Page 55: Channelized Oc-3/Stm-1 Virtual Ds1/E1 Channel Configuration Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the Channelized OC-3 Virtual DS1 Channels Table 3-11. Channelized OC-3/STM-1 Virtual DS1/E1 Channel Configuration Window Field Descriptions Field Name Field Value Description [Slot: nn] Default: selected Indicates the PSAX chassis slot that the selected module occu- slot pies.

  • Page 56: Configuring One Or More Channels On A Port (Strapping)

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring One or More Channels On A Port (Strapping) Table 3-11. Channelized OC-3/STM-1 Virtual DS1/E1 Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Admin Status] Unconfigured The interface is not administratively in service because it is not Range: N/A configured.

  • Page 57: Configuring A Port With One Or More Channels

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring a Port with One or More Channels, (Accessing the Channelized OC-3 Virtual DS1 Channel Configuration The port configuration has been applied. 4 Remain on this window and continue with the next procedure, “Config- uring a Port with One or More Channels, (Accessing the Channelized OC-3 Virtual DS1 Channel Configuration Window) (Strapping)”.

  • Page 58: Strapped Channels 1 Through 5 Displaying After Apply Configuration Command Has

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring a Port with One or More Channels, (Accessing the Channelized OC-3 Virtual DS1 Channel Configuration 8 To view the strapped DS0s and their associated channels at any time, select the Show Straps command on the Ch OC-3 Virtual DS1 Port Configuration window (see Figure 3-14).

  • Page 59: Configuring The Oc-3 Working And Standby Module Pair

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the OC-3 Working and Standby Module Pair Table 3-12. Channelized OC-3/STM-1 Virtual DS1/E1 DS0s Strap Display Window Commands Command Function Update Display Updates the display of strapped DS0 channels. Go Back to DS1 or E1 Port Con- Redisplays the Channelized OC-3 SM Virtual DS1 Port Config- figuration...
  • Page 60 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the OC-3 Working and Standby Module Pair 3 After selecting the field options you want, select the Apply Port Con- figuration command (see Figure 3-16). The port and channel configuration has been applied. If you have completed the configuration of the primary working module, the module pair is now configured for MSP protection and the working module is ready to pass traffic.

  • Page 61: Channelized Oc-3 Aps Configuration Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the OC-3 Working and Standby Module Pair Figure 3-15. Module Configured for 1+1 Protection (Working Module) Figure 3-16. Channelized OC-3 APS Configuration Window Table 3-14. Channelized OC-3STM-1 APS/MSP Configuration Window Commands Command Function APS/MSP Statistics (Left Panel)

  • Page 62: Channelized Oc-3 Mm Aps Configuration Window Field Descriptions

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the OC-3 Working and Standby Module Pair Table 3-14. Channelized OC-3STM-1 APS/MSP Configuration Window Commands (Continued) Command Function APS/MSP Commands (Left Panel) Apply APS/MSP Command Runs the command you selected in the APS Command or MSP Command field.
  • Page 63 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the OC-3 Working and Standby Module Pair Table 3-15. Channelized OC-3 MM APS Configuration Window Field Descriptions (Continued) Field Name Field Value Description RX K1/K2 Default: 00/00 For the receive port, the protocol for the APS channel, carried in the K1 and K2 bytes, in the signal in the pro- Range: 99/99...
  • Page 64 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring the OC-3 Working and Standby Module Pair Table 3-15. Channelized OC-3 MM APS Configuration Window Field Descriptions (Continued) Field Name Field Value Description [APS Option] Default: Nonrever- Indicates that once the active status has switched from tive the working module to the protection module, the...

  • Page 65: Configuring J1 Trace

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J1 Trace Table 3-15. Channelized OC-3 MM APS Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Working Line] Default: NoAlarm Indicates the status of the port on the working module. Range: N/A Format: Predefined NoAlarm...
  • Page 66 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J1 Trace 2 After applying the Port Configuration command in the OC-3 SM Port Configuration window (see Figure 3-8), select the Configure STS1 Vir- tual Port 1. The Channelized OC-3 SM STS1 Port Configuration window is displayed (see Figure 3-17).
  • Page 67 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J1 Trace Table 3-16. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description Displays the contents of the incoming SSM bits on the port [SSM RX] Default: QL_DNU the Stratum 3–4 module is using for line timing.

  • Page 68: Channelized Oc-3 Or Stm-1 Ces Port Configuration Window Field Descriptions

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J1 Trace Table 3-16. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description APS or MSP Default: Unpro- Specifies whether two module(s) are to be set up in adjacent Configured tected odd- and even-numbered slots for APS/MSP protection...
  • Page 69 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J1 Trace Table 3-16. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Line Status] Default: NoAlarm Indicates the line status of the interface: loopback, failure, received and transmitted alarm information.

  • Page 70: Higher Order Path Trace - J1 Byte Configuration Window Commands

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J1 Trace Figure 3-17. Channelized OC-3 SM STS-1 Port Configuration Window Figure 3-18. Higher Order Path Trace - J1 Byte Configuration Window Table 3-17. Higher Order Path Trace - J1 Byte Configuration Window Commands Command Function Apply Configuration...

  • Page 71: Configuring J2 Trace

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J2 Trace Table 3-18. Higher Order Path Trace - J1 Byte Configuration Window Field Descriptions Field Name Field Value Description J1 Transmit Msg Default: User- Indicates the message transmitted from the near- assigned end to near-end switch of the same port.
  • Page 72 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J2 Trace 3 Select one of the DS1 port from DS1Port Configuration section (see Figure 3-19). The Channelized STM1SM Virtual DS1 Port and Channel Configuration window is displayed in Figure 3-20. Table 3-8 describes the commands on the window.
  • Page 73 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J2 Trace Table 3-19. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description Displays the contents of the incoming SSM bits on the port [SSM RX] Default: QL_DNU the Stratum 3–4 module is using for line timing.

  • Page 74: Channelized Oc-3 Or Stm-1 Ces Port Configuration Window Field Descriptions

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J2 Trace Table 3-19. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description APS or MSP Default: Unpro- Specifies whether two module(s) are to be set up in adjacent Configured tected odd- and even-numbered slots for APS/MSP protection...
  • Page 75 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J2 Trace Table 3-19. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Line Status] Default: NoAlarm Indicates the line status of the interface: loopback, failure, received and transmitted alarm information.

  • Page 76: Channelized Oc-3 Sm Virtual Ds1 Port Configuration Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J2 Trace Figure 3-19. Channelized OC-3 SM STS-1 Port Configuration Window Figure 3-20. Channelized OC-3 SM Virtual Ds1 Port Configuration Window ® PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0 3-46 255-700-714R11.0...

  • Page 77: Lower Order Path Trace - J2 Byte Configuration

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Configuring J2 Trace Figure 3-21. Lower Order Path Trace - J2 Byte Configuration Table 3-20. Lower Order Path Trace -J2 Byte Configuration Window Commands Command Function Apply Configuration Applies the J2 configuration you selected for a specified port and channel number value.

  • Page 78: Saving The Equipment Configuration And Logging Off

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Saving the Equipment Configuration and Logging Off Table 3-21. Lower Order Path Trace - J2 Byte Configuration Window Field Descriptions Field Name Field Value Description [J2 Trace] Default: Mismatch Indicates whether the near-end message received (display only) matches with the near-end expected message which...

  • Page 79: Save Configuration [Modified] (Before Saving)

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Saving the Equipment Configuration and Logging Off Figure 3-22. Save Configuration [Modified] (Before Saving) 2 Select the Save Configuration command or press Ctrl+A. Wait a few seconds while the system writes the values to the PSAX sys- tem database.

  • Page 80: Viewing The Channelized Oc-3 Statistics

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics After saving the configuration values, the indicator [Modified] is no longer displayed next to the Save Configuration command. The mod- ule(s) are now ready to pass traffic in APS or MSP configuration. After passing some traffic, traffic statistics are available to view.

  • Page 81: Channelized Oc-3 Port Statistics Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics Figure 3-23. Channelized OC-3 Port Statistics Window Table 3-23. Channelized OC-3/STM-1 Port Statistics Window Commands Command Function Continuous Update Updates the values in the fields every second. Reset Statistics Sets all field values to 0.
  • Page 82 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics Table 3-24. 1-Port Channelized OC-3/STM-1 CES Port Statistics Window Field Descriptions (Continued) Field Name Field Value Description Severely Err. Fram. Default: 0 Displays severely errored framing seconds contain one Sec.

  • Page 83: Viewing The Channelized Oc-3 Virtual Ds1 Port Statistics

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics Table 3-24. 1-Port Channelized OC-3/STM-1 CES Port Statistics Window Field Descriptions (Continued) Field Name Field Value Description Status Default: NoAlarm Displays whether there is an alarm condition or not on the path layer.

  • Page 84: Channelized Oc-3/Stm-1 Virtual Ds1/E1 Port Statistics Window Commands

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics Figure 3-24. Channelized OC-3 STS1 Port Configuration Window Table 3-25. Channelized OC-3/STM-1 Virtual DS1/E1 Port Statistics Window Commands Command Function Continuous Update Updates the values in the fields every second. Reset Statistics Sets all field values to 0.

  • Page 85: Default: 0

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics Table 3-26. Channelized OC-3 Virtual DS1 Port Statistics Window Field Descriptions Field Name Field Value Description Errored Seconds Default: 0 Displays the number of errored seconds with at least one of the following characteristics per second: Range: 0–9999999999 •...

  • Page 86: Viewing The Channelized Oc-3 Sts1 Port Statistics

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics Table 3-26. Channelized OC-3 Virtual DS1 Port Statistics Window Field Descriptions Field Name Field Value Description VT Errored Seconds Default: 0 Displays the current count of errored seconds in the virtual tributary.

  • Page 87: Channelized Oc-3 Sts1 Port Statistics Window

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Viewing the Channelized OC-3 Statistics Figure 3-25. Channelized OC-3 STS1 Port Statistics Window Table 3-27. Channelized OC-3/STM-1 STS1/AU-3 Port Statistics Window Commands Command Function Continuous Update Updates the values in the fields every second. Reset Statistics Sets all field values to 0.

  • Page 88: Provisioning Interfaces And Connections

    Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Provisioning Interfaces and Connections Table 3-28. Channelized OC-3/STM-1 STS1/AU-3 Port Statistics Window Field Descriptions (Continued) Field Name Field Value Description Severely Err. Default: 0 Displays a second with 32 or more coding violations at that layer;...
  • Page 89 Note: SVC connections are not directly configurable on a PSAX chassis. Configure them through an interface with a call controller, such as the Lucent Softswitch–T (Toll/Tandem/Transit), a 7R/E™, or a ConnectStar™ Interworking Call Router. Call controllers send call setup information to the PSAX.
  • Page 90 Chapter 3 Configuring the OC-3 Mode Ports and Channels Using the Console Provisioning Interfaces and Connections ® PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0 3-60 255-700-714R11.0...

  • Page 91: Configuring The Stm-1 Mode Ports And Channels Using The Console

    Configuring the STM-1 Mode Ports and Channels Using the Console Overview of This Chapter This chapter describes how to set the values for the port and channel config- uration for the 1-Port Channelized OC-3/STM-1 CES modules (23N12 (MM)/23N13 (SM)). Preparatory Steps Before Configuring the Module Before beginning to configure the 1-Port Channelized OC-3/STM-1 CES module, be sure you have performed the following steps: ®...
  • Page 92 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Preparatory Steps Before Configuring the Module FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE...
  • Page 93 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Preparatory Steps Before Configuring the Module FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE...

  • Page 94: Loopback Option

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Loopback Option PSAX 2300 FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE OC-3c...
  • Page 95 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Loopback Option Figure 4-4. Loopback Configuration Options The following modules offer loopback capability: 20N73 1-Port OC-3c 1+1 APS Single-Mode 20N72 1-Port OC-3c 1+1 APS Multimode 23N02 3-Port Unstructured DS3/E3 CES 23N12 1-Port Channelized OC-3/STM-1 CES Multimode 23N13...

  • Page 96: Obtaining General Module Data And Accessing Ports And Channels

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Obtaining General Module Data and Accessing Ports and Channels This section describes how to obtain product, model, version, and serial num- ber data about a module from the Equipment Configuration window.

  • Page 97: Sample Equipment Configuration Window On A Psax 1000, Psax 2300, Or Psax 4500

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Figure 4-6. Sample Equipment Configuration Window on a PSAX 4500 System (Page 1) Figure 4-7. Sample Equipment Configuration Window on a PSAX 1000, PSAX 2300, or PSAX 4500 System (Page 2) Commands The commands on this window have the following functions.

  • Page 98: Equipment Configuration Window Commands

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Table 4-1. Equipment Configuration Window Commands Command Function Update Display Refreshes the current status of the modules in the PSAX chassis. Page Down Displays the second page of the Equipment Configuration win- dow.

  • Page 99: Module Alarm Status Descriptions On The Equipment Configuration Window

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Obtaining General Module Data and Accessing Ports and Channels Table 4-2. Equipment Configuration Window Field Descriptions (Continued) Field Name Field Value Description SW # Default: N/A Displays the version of PSAX system software with which the modules’...

  • Page 100: Configuring All Channels On A Port (Channelization Disabled)

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port (Channelization Disabled) Table 4-3. Module Alarm Status Descriptions on the Equipment Configuration Window (Continued) Module Type Alarm Status Description Affected Hexadecimal format, I/O and Server Indicates that one or more ports on the module in this slot Example: currently have a loss of signal.
  • Page 101 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port (Channelization Disabled) Begin 1 After you have selected the module you want to configure on the Equip- ment Configuration window (see Figure 4-6) select a Ch-OC3STM1-MM or Ch-OC3STM1-SM module.

  • Page 102: Channelized Oc-3 Sm Port Configuration Window (Before Configuration)

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port (Channelization Disabled) Figure 4-8. Channelized OC-3 SM Port Configuration Window (Before Configuration) Figure 4-9. Channelized STM-1 Port Configuration Window (After the Apply Port Configuration Command Is Applied) ®...

  • Page 103: Channelized Oc-3 Or Stm-1 Ces Port Configuration Window Field Descriptions

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port (Channelization Disabled) Table 4-4. Channelized OC-3 Port Configuration Window Commands Command Function STS-1/AU-3 Port Configuration (Right Panel) Configure STS-1 or AU-3 Virtual Displays the OC-3 STS1 or the STM-1 AU-3 Port Configura- Port 1 tion window for virtual port 1.
  • Page 104 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port (Channelization Disabled) Table 4-5. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description Displays the contents of the incoming SSM bits on the port [SSM RX] Default: QL_DNU the Stratum 3–4 module is using for line timing.
  • Page 105 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port (Channelization Disabled) Table 4-5. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description APS or MSP Default: Unpro- Specifies whether two module(s) are to be set up in adjacent Configured...
  • Page 106 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port Table 4-5. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Line Status] Default: NoAlarm Indicates the line status of the interface: loopback, failure, received and transmitted alarm information.

  • Page 107: Channelized Oc-3 Sts-1/Stm-1 Au-3 Port Configuration Window Commands

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Channels on a Port 2 Whether you are configuring all channels as one channel, or strapping one or more individual channels together on a port, determines what you do next: a If you are configuring all channels on the port to function as one continuous channel on the virtual E1 port, (the non-strapping condi-...

  • Page 108: Configuring All Virtual E1 Port And Channels On A Port

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Port and Channels on a Port Table 4-6. Channelized OC-3 STS-1/STM-1 AU-3 Port Configuration Window Commands (Continued) Command Function View Port Statistics Displays the Channelized OC-3 or STM-1 Port Statistics window. Go Back to Port Configura- Redisplays the 1-Port Channelized OC-3 or STM-1 Port Configura- tion...

  • Page 109: Channelized Stm-1 Sm Virtual E1 Port And Channel Configuration Window

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Port and Channels on a Port Figure 4-11. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Table 4-8. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Commands Command Function...

  • Page 110: Channelized Stm-1 Sm Virtual E1 Port And Channel Configuration Window Field Descriptions

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Port and Channels on a Port Table 4-8. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Commands (Continued) Command Function Take All Interfaces Out Of Service Takes the in-service configured interfaces for all the chan- nels for the specified virtual port to out-of-service status.
  • Page 111 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Port and Channels on a Port Table 4-9. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description [DataTransferType] Default: Structured Specifies whether structured unchannelized or chan-...
  • Page 112 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Port and Channels on a Port Table 4-9. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description UpStrm Interwork- Default: TrunkCond...

  • Page 113: Configuring All Virtual E1 Channels On A Port (Without Strapping)

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Channels on a Port (Without Strapping) Table 4-9. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description CT Mode Default: Four-wire...

  • Page 114: Channelized Stm1 Virtual E1 Channel Configuration Window - The Channelization Disabled By

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Channels on a Port (Without Strapping) Note: If you select CircuitEmulation as the interface type, the Signaling field displays as Disabled in the display-only mode. 3 Select the Apply Configuration command.
  • Page 115 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Channels on a Port (Without Strapping) Table 4-10. Channelized OC-3/STM-1 Virtual DS1/E1 Channel Configuration Window Commands Command Function Bring Interface Into Service Brings the out-of-service configured interface to in-service sta- tus.
  • Page 116 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring All Virtual E1 Channels on a Port (Without Strapping) Table 4-11. Channelized OC-3/STM-1 Virtual DS1/E1 Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description Interface Type Default: Uncon- Specifies which end-to-end interface protocol the connection figured...

  • Page 117: Configuring A Virtual Port With One Or More E1 Channels

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring a Virtual Port with One or More E1 Channels Table 4-11. Channelized OC-3/STM-1 Virtual DS1/E1 Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Oper Status] Default: Uncon- Specifies whether the interface is operational or not.

  • Page 118: Channelized Stm-1 Sm Virtual E1 Port And Channel Configuration Window (Channelization Enabled)

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring a Virtual Port with One or More E1 Channels Figure 4-13. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window (Channelization Enabled) Table 4-12. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Commands Command Function...
  • Page 119 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring a Virtual Port with One or More E1 Channels Table 4-12. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Commands (Continued) Command Function Take All Interfaces Out Of Service Takes the in-service configured interfaces for all the chan- nels for the specified virtual port to out-of-service status.
  • Page 120 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring a Virtual Port with One or More E1 Channels Table 4-13. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description [DataTransferType] Default: Structured Specifies whether structured unchannelized or chan-...
  • Page 121 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring a Virtual Port with One or More E1 Channels Table 4-13. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description UpStrm Interwork- Default: TrunkCond...

  • Page 122: Strapping One Or More Channels On A Virtual Port

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Strapping One or More Channels on A Virtual Port Table 4-13. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window Field Descriptions (Continued) Field Name Field Value Description CT Mode Default: Four-wire...

  • Page 123: Strapped Channels 1 Through 5 Displaying After Apply Configuration Command Has Been Applied

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Strapping One or More Channels on A Virtual Port If you select CircuitEmulation as the interface type, the Signaling field displays. If you want to strap any channels together, do not change the Signaling field default, which is Disabled.

  • Page 124: Displays Strapped E1 Ds0 Channels

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Strapping One or More Channels on A Virtual Port Figure 4-15. Displays Strapped E1 DS0 Channels Table 4-14. Channelized OC-3/STM-1 Virtual DS1/E1 DS0s Strap Display Window Commands Command Function Update Display Updates the display of strapped DS0 channels.

  • Page 125: Configuring The 1+1 Protection Parameters

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring the 1+1 Protection Parameters Configuring the 1+1 Protection Parameters Note: Make sure that you have selected and applied the MSP Configured setting of working to the correct module as shown in Figure 4-16 before starting MSP configuration.
  • Page 126 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring the 1+1 Protection Parameters Figure 4-16. Module Configured for 1+1 Protection (Working Module) Figure 4-17. Channelized STM-1 SM MSP Configuration Window (Before Configuration) Table 4-16. Channelized OC-3STM-1 APS/MSP Configuration Window Commands Command Function APS/MSP Statistics (Left Panel)
  • Page 127 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring the 1+1 Protection Parameters Table 4-16. Channelized OC-3STM-1 APS/MSP Configuration Window Commands (Continued) Command Function Reset APS/MSP Statistics Sets all field values to 0. APS/MSP Commands (Left Panel) Apply APS/MSP Command Runs the command you selected in the APS Command or MSP Command field.
  • Page 128 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring the 1+1 Protection Parameters Table 4-17. Channelized STM-1 SM MSP Configuration Window Field Descriptions (Continued) Field Name Field Value Description RX K1/K2 Default: 00/00 Specifies the protocol for the MSP channel, carried in the K1 and K2 bytes for the receive port, in the signal in the Range: protection line.
  • Page 129 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring the 1+1 Protection Parameters Table 4-17. Channelized STM-1 SM MSP Configuration Window Field Descriptions (Continued) Field Name Field Value Description Configuration Parameters/Status Panel MSP Mode Default: Unidirec- Specifies the transmit direction in MSP mode.

  • Page 130: Configuring J1 Trace

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J1 Trace Table 4-17. Channelized STM-1 SM MSP Configuration Window Field Descriptions (Continued) Field Name Field Value Description Protection SD BER Default: Specifies the signal-degraded bit error rate (SD BER) value TenToMinus5 on the MSP protection module port.
  • Page 131 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J1 Trace The Channelized STM-1 SM AU-3 Port Configuration window is dis- played (see Figure 4-18). Table 4-6 describes the commands on the win- dow. Table 4-7 describes the fields on the window. 3 Remain on the same window, select the J1 Trace Configuration com- mand.
  • Page 132 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J1 Trace Table 4-18. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description Displays the contents of the incoming SSM bits on the port [SSM RX] Default: QL_DNU the Stratum 3–4 module is using for line timing.
  • Page 133 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J1 Trace Table 4-18. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description APS or MSP Default: Unpro- Specifies whether two module(s) are to be set up in adjacent Configured tected odd- and even-numbered slots for APS/MSP protection...
  • Page 134 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J1 Trace Table 4-18. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Line Status] Default: NoAlarm Indicates the line status of the interface: loopback, failure, received and transmitted alarm information.

  • Page 135: Higher Order Path Trace - J1 Byte Configuration Window Commands

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J1 Trace Figure 4-18. Channelized STM-1 SM AU-3 Port Configuration Window Figure 4-19. Higher Order Path Trace - J1 Byte Configuration Window Table 4-19. Higher Order Path Trace - J1 Byte Configuration Window Commands Command Function Apply Configuration...

  • Page 136: Configuring J2 Trace

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J2 Trace Table 4-20. Higher Order Path Trace - J1 Byte Configuration Window Field Descriptions Field Name Field Value Description J1 Transmit Msg Default: User- Indicates the message transmitted from the near- assigned end to near-end switch of the same port.
  • Page 137 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J2 Trace 3 Select one of the E1 port from E1 Port Configuration section (see Figure 4-20). The Channelized STM-1SM Virtual E1 Port and Channel Configuration window is displayed in Figure 4-21. Table 4-8 describes the commands on the window.
  • Page 138 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J2 Trace Table 4-21. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description Displays the contents of the incoming SSM bits on the port [SSM RX] Default: QL_DNU the Stratum 3–4 module is using for line timing.
  • Page 139 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J2 Trace Table 4-21. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description APS or MSP Default: Unpro- Specifies whether two module(s) are to be set up in adjacent Configured tected odd- and even-numbered slots for APS/MSP protection...
  • Page 140 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J2 Trace Table 4-21. Channelized OC-3 or STM-1 CES Port Configuration Window Field Descriptions (Continued) Field Name Field Value Description [Line Status] Default: NoAlarm Indicates the line status of the interface: loopback, failure, received and transmitted alarm information.

  • Page 141: Channelized Stm-1 Sm Virtual E1 Port And Channel Configuration

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J2 Trace Figure 4-20. Channelized STM-1 SM AU-3 Port Configuration Window Figure 4-21. Channelized STM-1 SM Virtual E1 Port and Channel Configuration Window ® PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0 PacketStar 255-700-714R11.0...

  • Page 142: Lower Order Path Trace -J2 Byte Configuration Window Commands

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Configuring J2 Trace Lower Order Path Trace - J2 Byte Configuration Table 4-22. Lower Order Path Trace -J2 Byte Configuration Window Commands Command Function Apply Configuration Applies the J2 configuration you selected for a specified port and channel number value.

  • Page 143: Saving The Equipment Configuration And Logging Off

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Saving the Equipment Configuration and Logging Off Table 4-23. Lower Order Path Trace - J2 Byte Configuration Window Field Descriptions Field Name Field Value Description [J2 Trace] Default: Mismatch Indicates whether the near-end message received (display only) matches with the near-end expected message which...

  • Page 144: Save Configuration [Modified] (Before Saving)

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Saving the Equipment Configuration and Logging Off Figure 4-22. Save Configuration [Modified] (Before Saving) 2 Select the Save Configuration command or press Ctrl+A. Wait a few seconds while the system writes the values to the PSAX sys- tem database.

  • Page 145: Viewing The Channelized Stm-1 Statistics

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics After saving the configuration values, the indicator [Modified] is no longer displayed next to the Save Configuration command. The mod- ule(s) are now ready to pass traffic in APS or MSP configuration. After passing some traffic, traffic statistics are available to view.

  • Page 146: Channelized Stm-1 Port Statistics Window

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics Figure 4-23. Channelized STM-1 Port Statistics Window Table 4-25. Channelized OC-3/STM-1 Port Statistics Window Commands Command Function Continuous Update Updates the values in the fields every second. Reset Statistics Sets all field values to 0.
  • Page 147 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics Table 4-26. 1-Port Channelized OC-3/STM-1 CES Port Statistics Window Field Descriptions (Continued) Field Name Field Value Description Severely Err. Fram. Default: 0 Displays severely errored framing seconds contain one Sec.

  • Page 148: Viewing The Channelized Stm-1 Au-3 Port Statistics

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics Table 4-26. 1-Port Channelized OC-3/STM-1 CES Port Statistics Window Field Descriptions (Continued) Field Name Field Value Description Status Default: NoAlarm Displays whether there is an alarm condition or not on the path layer.

  • Page 149: Channelized Stm-1 Sm Au-3 Port Statistics Window

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics Figure 4-24. Channelized STM-1 SM AU-3 Port Statistics Window Table 4-27. Channelized OC-3/STM-1 STS1/AU-3 Port Statistics Window Commands Command Function Continuous Update Updates the values in the fields every second. Reset Statistics Sets all field values to 0.

  • Page 150: Viewing The Channelized Stm-1 Virtual E1 Port Statistics

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics Table 4-28. Channelized OC-3/STM-1 STS1/AU-3 Port Statistics Window Field Descriptions (Continued) Field Name Field Value Description Severely Err. Default: 0 Displays a second with 32 or more coding violations at that layer;...

  • Page 151: Channelized Oc-3/Stm-1 Virtual Ds1/E1 Port Statistics Window Commands

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics Figure 4-25. Channelized OC-3 STS1 Port Configuration Window Table 4-29. Channelized OC-3/STM-1 Virtual DS1/E1 Port Statistics Window Commands Command Function Continuous Update Updates the values in the fields every second. Reset Statistics Sets all field values to 0.

  • Page 152: Channelized Stm-1 Sm/Mm Virtual E1 Port Statistics Window Field Descriptions

    Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Viewing the Channelized STM-1 Statistics Table 4-30. Channelized STM-1 SM/MM Virtual E1 Port Statistics Window Field Descriptions Field Name Field Value Description Errored Seconds Default: 0 Displays the number of errored seconds with at least one of the following characteristics per second: Range: 0–9999999999 •...

  • Page 153: Provisioning Interfaces And Connections

    Note: SVC connections are not directly configurable on a PSAX chassis. Configure them through an interface with a call controller, such as the Lucent Softswitch–T (Toll/Tandem/Transit), a 7R/E™, or a ConnectStar™ Interworking Call Router. Call controllers send call setup information to the PSAX.
  • Page 154 Chapter 4 Configuring the STM-1 Mode Ports and Channels Using the Console Provisioning Interfaces and Connections For instructions on configuring the interfaces and connections, see the ® PacketStar PSAX Connections Provisioning Guide. ® PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0 4-64 255-700-714R11.0...

  • Page 155: Reference Information

    Reference Information Overview of This Appendix This appendix contains reference information that is helpful while configur- ing your PSAX system. The following types of information are provided: • “Avoiding Common Errors When Configuring Interfaces” • “Optimizing SVC Call Performance” • “Connection Type by Interface Type” •...

  • Page 156: Connection Type By Interface Type

    Appendix A Reference Information Connection Type by Interface Type When unacknowledged protocol data units (PDUs), the MaxPD field on the ® remote end peer (such as the NavisCore™ CBX 500 ) shows the maximum number of SSCOP packets transmitted since the last PSAX polling of the peer. To optimize call performance, the SSCOP Rx Window Size field of the local ATM interface should be less than the maximum value displayed in the MaxPD credit window at the remote end of the ATM interface.

  • Page 157: Interface Type By I/O Module Type

    ‡ A GR-303 Interface Group (IG) must be configured before GR-303 connections can be configured. Interface Type by I/O Module Type Table A-2 shows the available interface types for each PacketStar PSAX I/O ® module used in the PacketStar PSAX Multiservice Media Gateways. This table does not include other PSAX modules that are not I/O modules, which ®...
  • Page 158 Appendix A Reference Information Interface Type by I/O Module Type include: the Alarm module, the DSP2x modules, the Enhanced Router mod- ule, the Route Server module, and the Tones and Announcements Server module. Table A-2. Interface Type by I/O Module Type Interface Module DS1/T1 Interface Modules...
  • Page 159 Appendix A Reference Information Interface Type by I/O Module Type Table A-2. Interface Type by I/O Module Type (Continued) Interface Module 3-Port DS3/E3 ATM 3-Port DS3/E3 ATM Protection 3-Port Unstructured DS3/E3 CES 3-Port Unstructured DS3/E3 CES Protection E1 Interface Modules 6-Port E1 IMA X X X 6-Port Enhanced E1...
  • Page 160 Appendix A Reference Information Interface Type by I/O Module Type Table A-2. Interface Type by I/O Module Type (Continued) Interface Module 2-Port OC-3c/STM-1 ATM Multimode 2-Port OC-3c/STM-1 ATM Single-Mode 4-Port OC-3c/STM-1 Multimode 4-Port OC-3c/STM-1 Single-Mode 1-Port OC-3c 1+1 APS Multimode 1-Port OC-3c 1+1 APS Single-Mode 1-Port STM-1 1+1 MSP...

  • Page 161: Module Alarm Status Descriptions On The Equipment Configuration Window

    Appendix A Reference Information Module Alarm Status Descriptions ‡ The module supports GR-303 in DS1 mode only. § The module supports PRI ISDN in DS1 and E1 modes only. ¶ The module supports ATM services in the STM-ATM mode only. The module supports CE in the OC3-UCE mode only.

  • Page 162: Standard Aal2 Calculation Example

    20 ms; thus, the minimum trunk size is 50 cps. At 8 Kbps, Lucent recommends two multiplexed channels. On the DSP2C mod- ule, you can configure up to 64 AAL2 trunk groups, so that if you want to use all 128 channels (or 224 for echo cancel mode), you must use multiplex- ing.

  • Page 163: Fax Relay Using Aal2 Requirements

    Appendix A Reference Information ATM Service Categories in the PSAX System Table A-5. Non-Multiplexed AAL2 Transmission Rates Compression Rate (in Kbps) Cell/sec Fax Relay Using AAL2 Requirements Table A-6 shows the cell rate for fax relay modulation/demodulation using Algosets 4 or 6 on the DSP2C or DSP2D Voice Server modules. •...

  • Page 164: Priority Of Atm Service Categories In The Psax System

    Appendix A Reference Information ATM Service Categories in the PSAX System The PSAX system support of defined ATM quality of service (QoS) categories is described in Table A-7. Table A-7. PSAX System-Supported Quality of Service Categories ATM Service Category Description Constant Bit Rate (CBR) This service offers consistent delay predictability.

  • Page 165: Atm Ts, Upc, And Vi Configuration Compatibilities

    Appendix A Reference Information ATM TS, UPC, and VI Configuration Compatibilities Table A-8. Mapping ATM Service Categories to PSAX System Priority Levels (Continued) ATM Forum Traffic Connection AQueMan Priority Management 4.1 ATM Service Category Configuration (Legacy Service Examples Priority (Current Field Value Implementation) Implementation)

  • Page 166: Combining The Upc Feature And Either The Ts Or Vi Feature On A Connection

    Appendix A Reference Information ATM TS, UPC, and VI Configuration Compatibilities I/O Module 1 Ingress Path VI or TS Egress Path Chassis Backplane I/O Module 2 Ingress Path VI or TS Egress Path Figure A-1. Combining the UPC Feature and Either the TS or VI Feature on a Connection Use the information in Table A-10 as a guide for calculations to determine ATM traffic shaping for cps on the 1-Port Channelized OC-3/STM-1 CES...
  • Page 167 Appendix A Reference Information ATM TS, UPC, and VI Configuration Compatibilities Table A-10. ATM Traffic Shaping CPS Calculation Table (Continued) Minimum/Actual Maximum Target Actual Rate (in bps) Actual CPS Target CPS 831,999 1,962 1,974 1,962 896,765 2,115 2,129 2,115 959,999 2,264 2,280 2,264...
  • Page 168 Appendix A Reference Information ATM TS, UPC, and VI Configuration Compatibilities Table A-10. ATM Traffic Shaping CPS Calculation Table (Continued) Minimum/Actual Maximum Target Actual Rate (in bps) Actual CPS Target CPS 2,415,480 5,697 5,791 5,697 2,455,078 5,790 5,888 5,790 2,495,996 5,887 5,988 5,887...
  • Page 169 Appendix A Reference Information ATM TS, UPC, and VI Configuration Compatibilities Table A-10. ATM Traffic Shaping CPS Calculation Table (Continued) Minimum/Actual Maximum Target Actual Rate (in bps) Actual CPS Target CPS 5,990,391 14,128 14,718 14,128 6,239,990 14,717 15,358 14,717 6,511,294 15,357 16,056 15,357...
  • Page 170 Appendix A Reference Information ATM TS, UPC, and VI Configuration Compatibilities ® PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0 A-16 255-700-714R11.0...

  • Page 171: Laser Safety Information

    Laser Safety Information Overview of this Appendix This appendix provides precautions on the safe use of optical modules, and specifications on the snap-on connector (SC) duplex single mode transceiver used in the 1-Port Channelized OC-3/STM-1 CES single-mode module, and general information on lasers. General Laser Information Optical fiber telecommunication systems, their associated test sets, and simi- lar operating systems use semiconductor laser transmitters that emit infrared...

  • Page 172: Classification Of Lasers

    Appendix B Laser Safety Information Classification of Lasers sue. Damage to the retina occurs only when one looks at the light sufficiently long that the product of the retinal irradiance and the viewing time exceeds the damage threshold. Optical energies above 1400 nm cause corneal and skin burns but do not affect the retina.

  • Page 173: Laser Safety Precautions For Enclosed Systems

    Appendix B Laser Safety Information Laser Safety Precautions for Enclosed Systems CAUTION: Use of controls, adjustments, and procedures other than those specified in this guide may result in hazardous laser radiation exposure. In the U.S., consult ANSI Z136.2, American National Standard for Safe Use of Lasers.

  • Page 174: Module Transceiver Specifications

    1-Port Channelized 1300 nominal 0.158 SM (9/125) OC-3/STM-1 CES Single-mode Lucent Technologies PacketStar PSAX Multiservice Media Gateway Systems comply with FDA/CDRH 21 CFR 1040.10 and 1040.11 as Class I and with the IEC 60825-1 as Class 1 Laser Products ® PacketStar PSAX 1-Port Channelized OC-3/STM-1 CES Module User Guide, Issue 1 Release 11.0.0...
