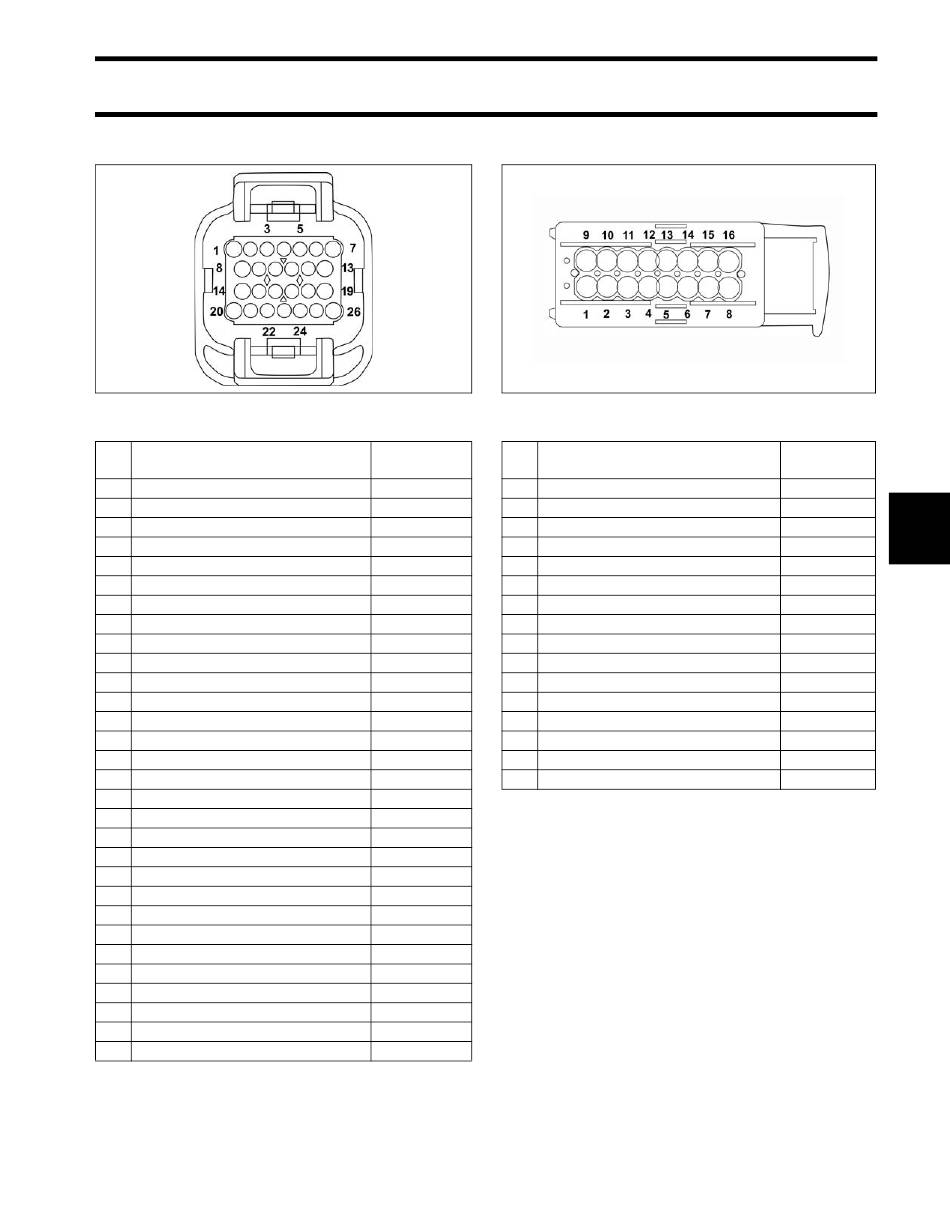

Evinrude E-Tec 40 HP Service Manual page 95

EMM J1-B Connector
Pin
Description of Circuit
No.
1 Injector, cylinder 2, 75–90 HP
1 Injector, cylinder 2, 40–65 HP
2 Injector, cylinder 3, 75–90 HP
2 Exhaust water valve, 60–65 HP
3 vacant
4 vacant
5 vacant
6 NO OIL signal, SystemCheck
7 Ignition, cylinder 3, 75–90 HP
7 vacant, 40–65 HP
8 Injector, cylinder 1
9 vacant
10 vacant
11 vacant
12 vacant
13 vacant
14 Injector ground
15 vacant
16 vacant
17 vacant
18 vacant
19 Ignition, cylinder 2, 75–90 HP
19 Ignition, cylinder 2, 40–65 HP
20 Injector ground
21 Injector ground
22 vacant
23 Oil solenoid
24 vacant
25 vacant
26 Ignition, cylinder 1
ELECTRICAL HARNESS CONNECTIONS
EMM J2 Connector
001876
Pin
Wire Color Description of Circuit
No.
Purple 1 Stator winding, 1S
Green 2 Stator winding, 2S
Green 3 Stator winding, 3S
Blue/Red 4 Fuel pump control
5 System Ground
6 +12 V out
7 System Ground
Tan/Yellow 8 System Ground
Orange/Green 9 Stator winding, 1F
10 Stator winding, 2F
Blue 11 Stator winding, 3F
12 Fuel pump (flyback)
13 +55 V, out
14 +12 V out
15 vacant
16 vacant
Black
Orange/Purple
Orange/Green
Black
Black
Blue
Orange/Blue
ELECTRICAL AND IGNITION
Wire Color
Yellow
Brown
Orange
Brown
Black
Red
Black
Black
Yellow/White
Brown/White
Orange/White
White/Red
White/Red
Red
