SYSTEM ANALYSIS
IGNITION OUTPUT TESTS
Crankshaft Position Sensor (CPS)
Test
When the CPS is working proper ly, EMM LED 2
turns on while the outboard is being started.
Use the Evinrude Diagnostics software CPS Sync
and engine RPM displays to confirm a valid CPS
signal while the outboa rd is cranking or running.
An RPM display higher than zero indicates a CPS
signal to the EMM.

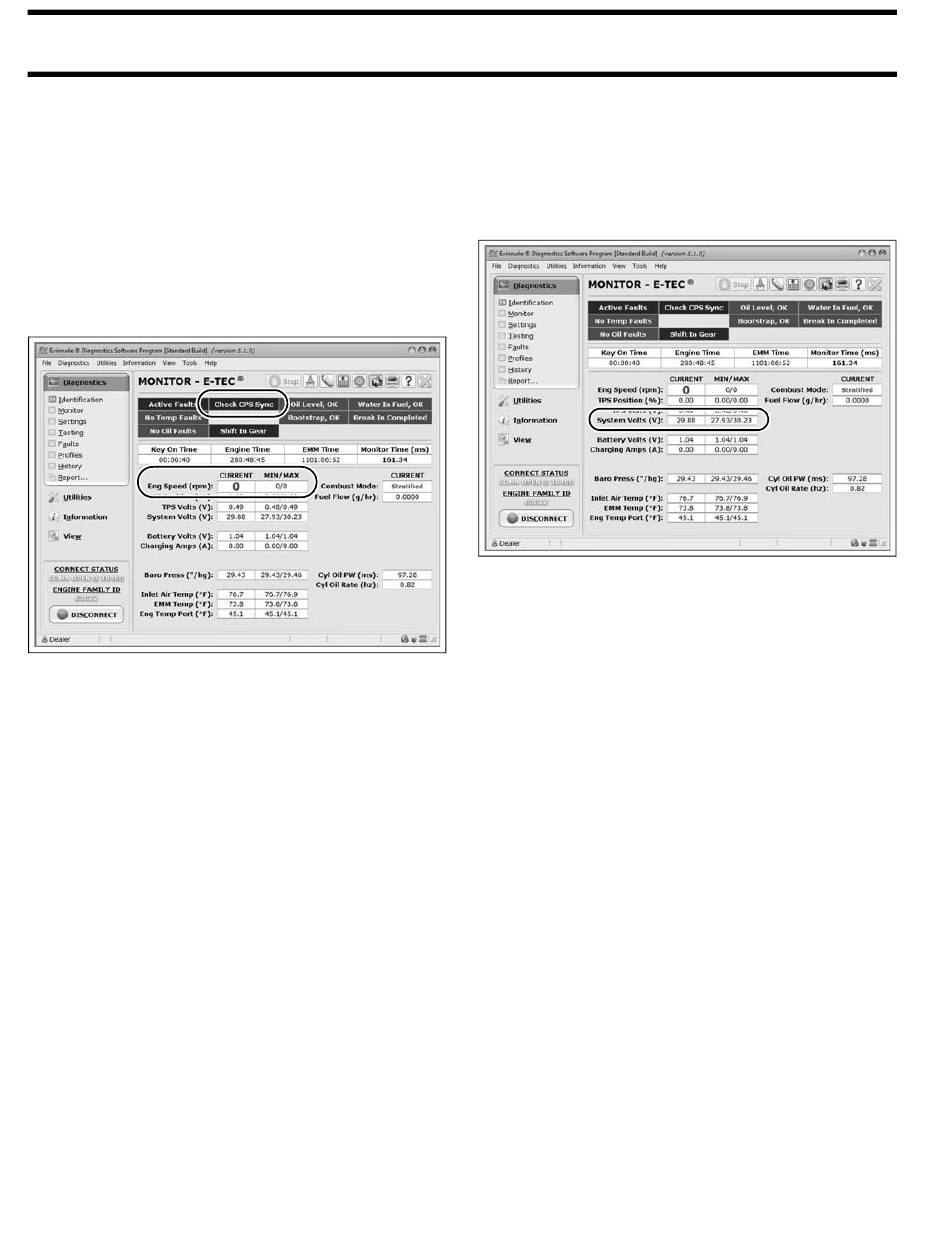

Engine RPM and CPS Sync displays
If the Monitor screen says "Check CPS Sync,"
refer to Crankshaft Position Sensor (CPS) Test
on p. 95.
80

System Voltage Test

The ig nition system is p owered by the 55 V sys-
tem.
Use th e Evinrude Diagnostics so ftware Monitor
screen to check system voltage.
Monitor Screen, System voltage
Results:
EMM ON (not running) - approximately 1 V less
•
than battery voltage, system voltage is GOOD.
008566A
EMM ON (not running) - no voltage, check 12 V
•
power to EMM. Repair connection or wiring.
RUNNING - 55 V ± 2, system voltage is GOOD.
•
RUNNING - less tha n 55 V ± 2, check st ator
•
output to EMM. Rep air connection o r wirin g.
Possible faulty stator or EMM. Refer to STATOR
TESTS on p. 97.
IMPORTANT:
to be present on the system voltage (55 V) circuit.
Power is normally supplied to the EMM when the
key switch is turned ON. The EMM is also turn ed
ON when it begins to receive AC voltage from the
stator while the outboard is being cranke d. On a
non-running rope st art eng ine, po wer is sup plied
to the EMM by Diag nostic Power Supply T ool,
P/N 587005.
The EMM must be ON for voltage
008566A
