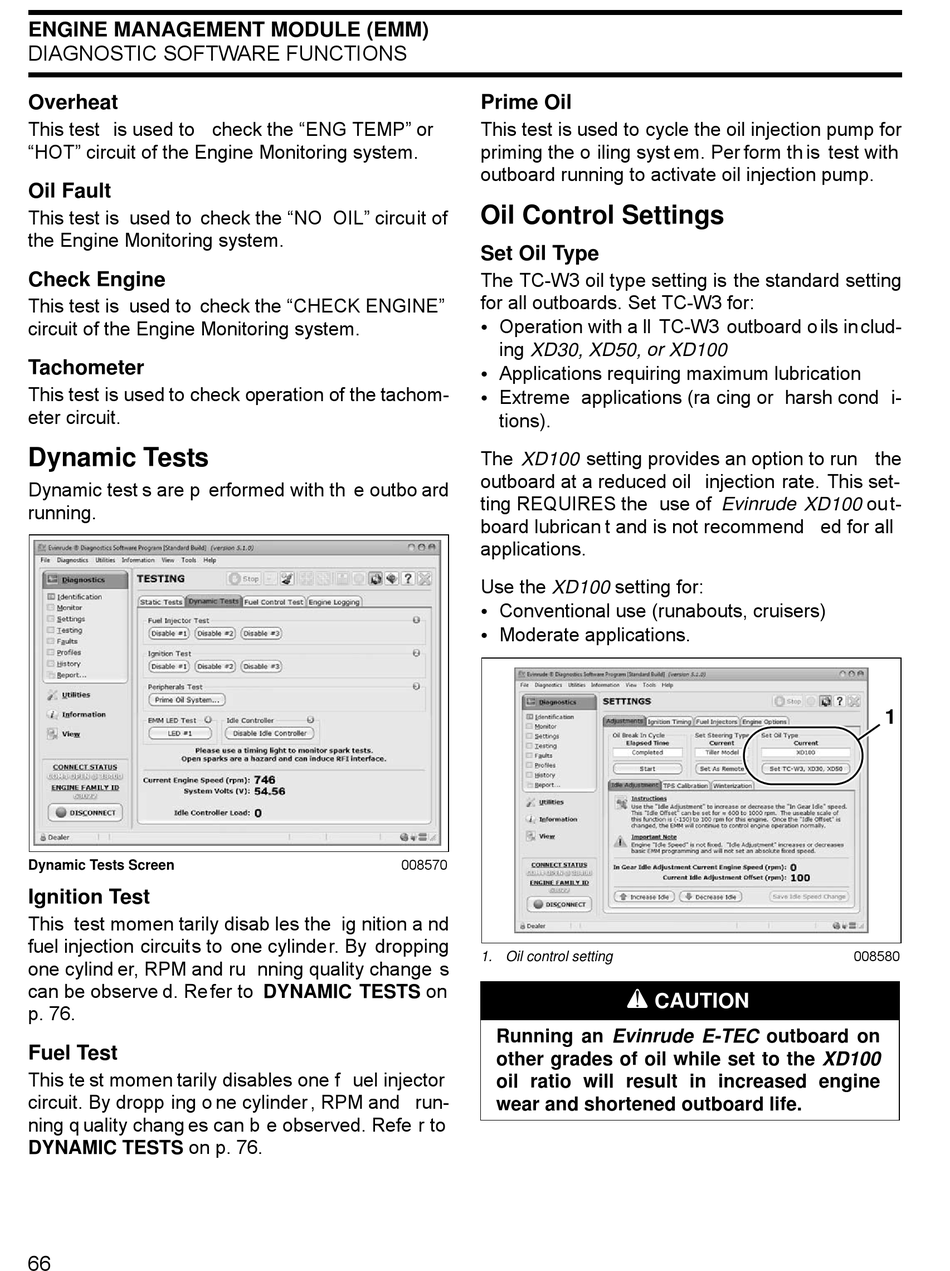

ENGINE MANAGEMENT MODULE (EMM)
DIAGNOSTIC SOFTWARE FUNCTIONS
Overheat
This test is used to check the "ENG TEMP" or
"HOT" circuit of the Engine Monitoring system.
Oil Fault
This test is used to check the "NO OIL" circuit of
the Engine Monitoring system.
Check Engine
This test is used to check the "CHECK ENGINE"
circuit of the Engine Monitoring system.
Tachometer
This test is used to check operation of the tachom-
eter circuit.

Dynamic Tests

Dynamic test s are p erformed with th e outbo ard
running.
Dynamic Tests Screen
Ignition Test
This test momen tarily disab les the ig nition a nd
fuel injection circuits to one cylinder. By dropping
one cylind er, RPM and ru nning quality change s
can be observe d. Re fer to DYNAMIC TESTS on
p. 76.
Fuel Test
This te st momen tarily disables one f uel injector
circuit. By dropp ing o ne cylinder , RPM and run-
ning q uality chang es can b e observed. Refe r to
DYNAMIC TESTS on p. 76.
66
Prime Oil
This test is used to cycle the oil injection pump for
priming the o iling syst em. Per form th is test with
outboard running to activate oil injection pump.

Oil Control Settings

Set Oil Type
The TC-W3 oil type setting is the standard setting
for all outboards. Set TC-W3 for:
Operation with a ll TC-W3 outboard o ils in clud-
•
ing XD30, XD50, or XD100
Applications requiring maximum lubrication
•
Extreme applications (ra cing or harsh cond i-
•
tions).
The XD100 setting provides an option to run the
outboard at a reduced oil injection rate. This set-
ting REQUIRES the use of Evinrude XD100 ou t-
board lubrican t and is not recommend ed for all
applications.
Use the XD100 setting for:
Conventional use (runabouts, cruisers)
•
Moderate applications.
•
008570
1. Oil control setting
Running an Evinrude E-TEC outboard on
other grades of oil while set to the XD100
oil ratio will result in increased engine
wear and shortened outboard life.
A
CAUTION
1
008580
