ENGINE MANAGEMENT MODULE (EMM)
DIAGNOSTIC SOFTWARE FUNCTIONS

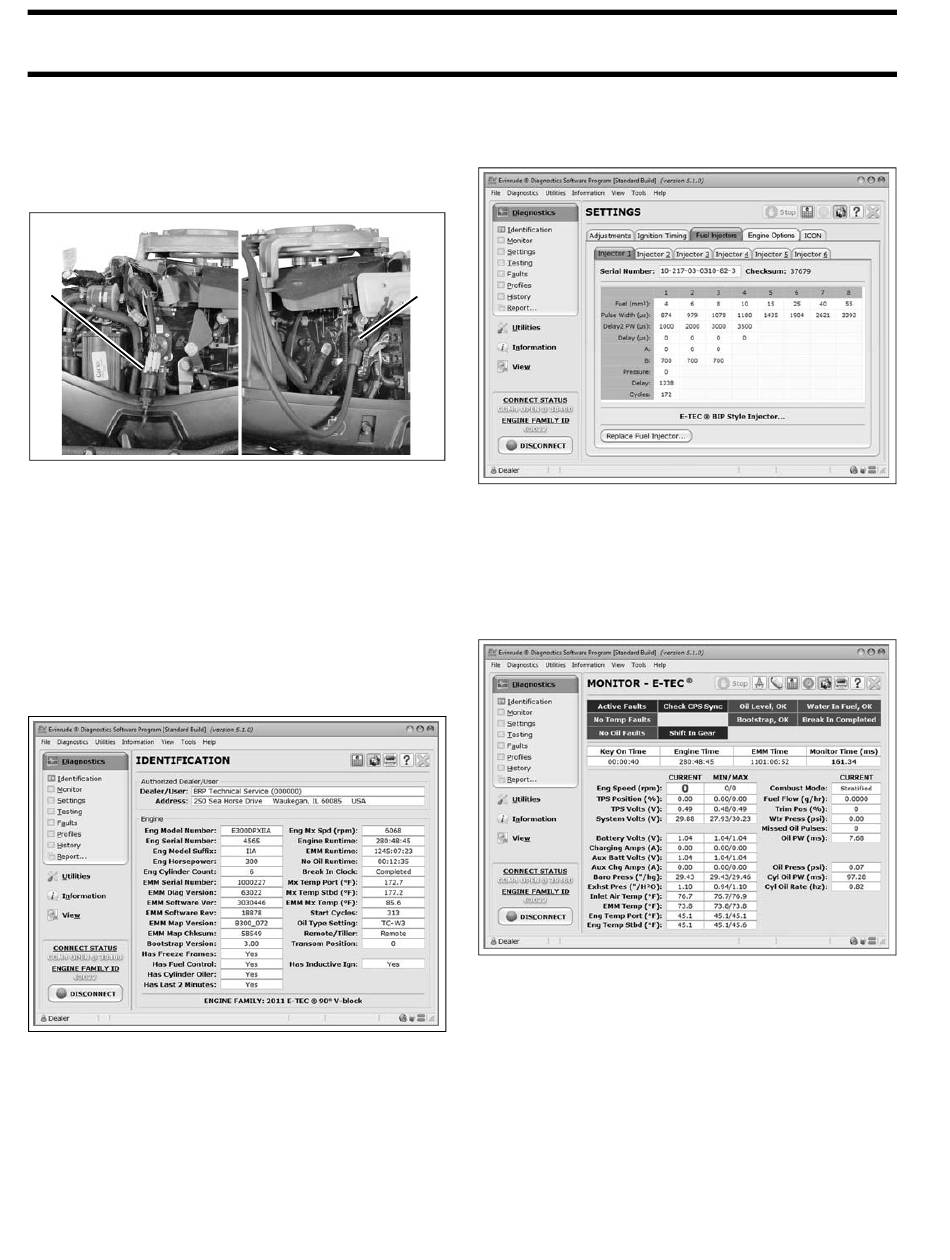

If Diagnostic Power Supply Tool, P/N 587005, is
not ava ilable, a Bat tery Cab le, P/N 584348, can
be con nected to th e engine mounte d so lenoid.
Use acc essory Key Switc
P/N 176408, to control power to the EMM.
1
1. Accessory key switch
2. Battery cable

Static Information

Static information is viewed when the out board is
NOT run ning. Th is includes manufacturing infor-
mation.
The outboard model and serial numbers displayed
on the Identity screen must ma tch th e iden tifica-
tion label on the outboard swivel bracket.
Identity Screen
64
The serial number and cylinder location displayed
on the Injector Coefficients screen must match the
actual cylinder placement for each injector.
h As sembly,
2
007281
007282
Injector Coefficients Screen

Dynamic Information

Dynamic information is viewed while the outboard
is running. Ch anges in dat a, such as voltages or
temperatures, are shown as they happen.
Monitor Screen
008567
008568
008566
