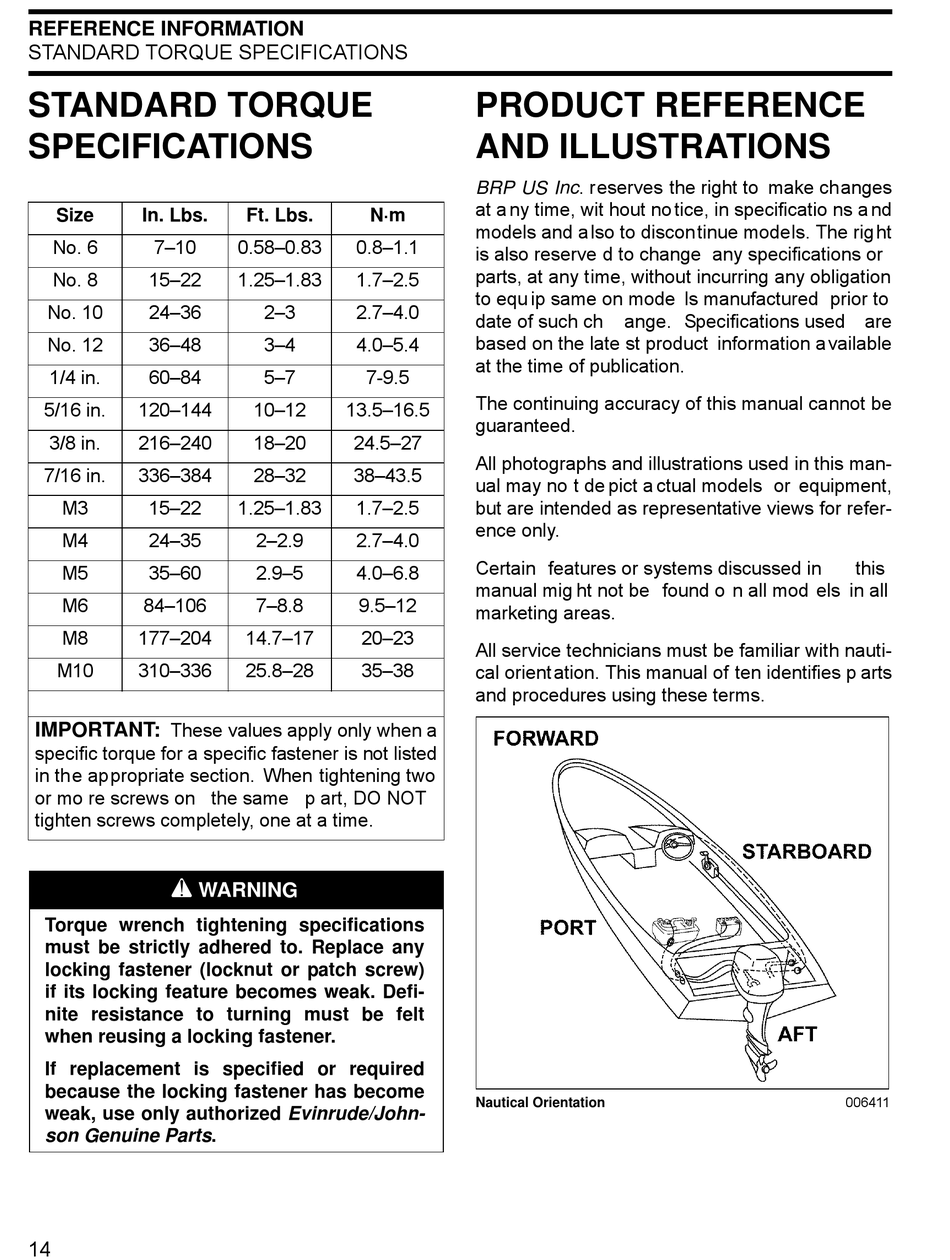

Standard Torque Specifications; Product Reference And Illustrations - Evinrude E-Tec 40 HP Service Manual

REFERENCE INFORMATION

STANDARD TORQUE SPECIFICATIONS

STANDARD TORQUE
SPECIFICATIONS
Size In. Lbs.
No. 6 7–10
No. 8 15–22
No. 10 24–36
No. 12 36–48
1/4 in. 60–84
5/16 in. 120–144
3/8 in. 216–240
7/16 in. 336–384
M3 15–22
M4 24–35
M5 35–60
M6 84–106
M8 177–204
M10 310–336
These values apply only when a
IMPORTANT:
specific torque for a specific fastener is not listed
in the appropriate section. When tightening two
or mo re screws on the same p art, DO NOT
tighten screws completely, one at a time.
A
WARNING
Torque wrench tightening specifications
must be strictly adhered to. Replace any
locking fastener (locknut or patch screw)
if its locking feature becomes weak. Defi-
nite resistance to turning must be felt
when reusing a locking fastener.
If replacement is specified or required
because the locking fastener has become
weak, use only authorized Evinrude/John-
son Genuine Parts.
14
Ft. Lbs. N·m
0.58–0.83 0.8–1.1
1.25–1.83 1.7–2.5
2–3 2.7–4.0
3–4 4.0–5.4
5–7 7-9.5
10–12 13.5–16.5
18–20 24.5–27
28–32 38–43.5
1.25–1.83 1.7–2.5
2–2.9 2.7–4.0
2.9–5 4.0–6.8
7–8.8 9.5–12
14.7–17 20–23
25.8–28 35–38
PRODUCT REFERENCE
AND ILLUSTRATIONS
BRP US Inc. reserves the right to make changes
at a ny time, wit hout no tice, in specificatio ns a nd
models and a lso to discon tinue models. The rig ht
is also reserve d to change any specifications or
parts, at any time, without incurring any obligation
to equ ip same on mode ls manufactured prior to
date of such ch ange. Specifications used are
based on the late st product information a vailable
at the time of publication.
The continuing accuracy of this manual cannot be
guaranteed.
All photographs and illustrations used in this man-
ual may no t de pict a ctual models or equipment,
but are intended as representative views for refer-
ence only.
Certain features or systems discussed in
manual mig ht not be found o n all mod els in all
marketing areas.
All service technicians must be familiar with nauti-
cal orient ation. This manual of ten identifies p arts
and procedures using these terms.
Nautical Orientation
this
006411
