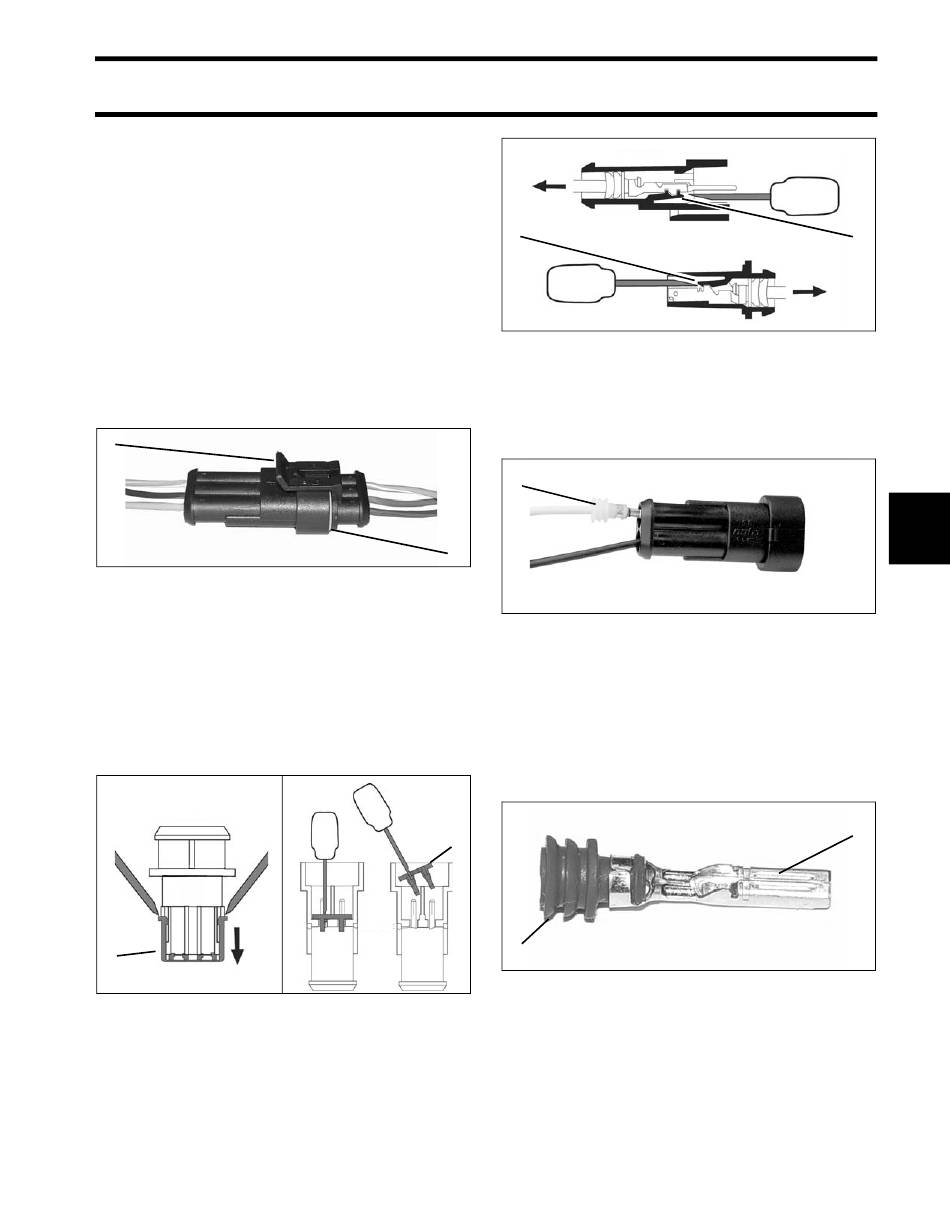

AMP Connectors

Always use the appropriate meter
IMPORTANT:
test probe s and ada pters when testing compo-
nents fitted with these terminals. Electrical grease
is NOT used on AMP connectors.
S 1.5
UPERSEAL
Disconnect
Lift latch. Pull connectors apart.
Connect
Confirm the seal is in place. Push conn
together until latched.
1
1. Latch
2. Seal
Terminal Removal
Use Secondary Lock Tool, P/N 777078, to release
anti-backout device of conn ector hou sing. Next,
use Primary Lo ck Tool, P/N 77 7077, to release
locking tab of connector housing. Release locking
tab a nd pull on wire to remove fro m connector
housing.
1
1. Anti backout device, plug
2. Anti backout device, receptacle
1
1. Locking tab, plug
2. Locking tab, receptacle
ectors
Terminal Installation
Align terminal with co nnector housing. Push con-
nector and seal into housing until seated.
1
2
002448
1. Terminal and seal
Align anti-backout d evice with conne ctor housing
and terminals. Use Seco
P/N 777079, to seat device in connector.
Crimping Terminals
Crimping Superseal 1.5 terminals requires AMP
Crimp Tool with dies, P/N 777281.
2
2
1. Terminal
2. Seal
002449
002450
ELECTRICAL AND IGNITION
CONNECTOR SERVICING
ndary Lock In staller,
2
002447
6
002451
1
002452
