Page 1: User Manual

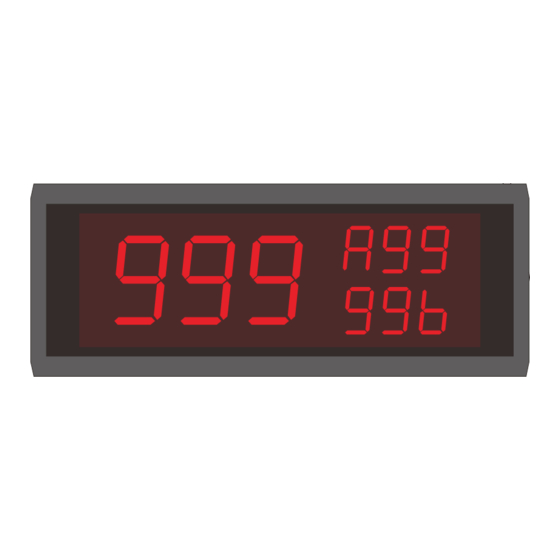

Wireless Calling Receiver User Manual (ZJ-82) Wireless calling system... -
Page 2: Technical Data
Summany Thanks for choosing this wireless calling system. The receiver host adopts RF wireless and learning code technology. It can easily pair up to 999 channels of wireless calling transmitters and 1 manager remote controller. The receiver host uses advanced industrial micro processor and high-sensitivity superheterodyne receiving technology which make the products very stable. - Page 3 Diagram Antenna 2nd/3rd call number 1st call number Settings button Note: 1) The display has 3 numbers in one screen. It shows the latest 3 calling information. 2) It has 3 working modes: 999 mode / Area mode / 99 model+A/b/C functions. 3) When it works with keypad call button, it works as queue calling service.
- Page 4 Fast Settings Diagram First class Second class Value Instruction Settings menu Settings menu 999 mode (1~999 number) Call button pairing Area mode (A-F area+1~99 number) 99 mode (1~99 number+A/b/C) Management Pair management controller controller pairing Management Delete manager remote controller controller delete Call button delete Delete call buttons...
- Page 5 Screen display function Working mode 1: 999 mode The 3 digits all shows numbers from 001 to 999. When it works with special keypad call button, it provides queue service. Only pair one time, then all the 999 numbers are ready, and there is page up function to call the number one by one.
- Page 6 Operation 1. Self test when power on When the receiver display is power on, it starts initialization program. The screen shows the digits from 000 to 999 along with the prompt sound “Initialization... please wait”. 2. Function settings At first time use, please do the settings as below. After all the settings are finished, please power off the host and reboot it.
- Page 7 (4) --4: Delete call buttons 1) Delete one call button Press [SET] button to enter "--4" submenu. The display will show "001", then press [UP/DOWN] to select the number which will be deleted, then press [DEL] button to delete the call button, the receiver will prompt "Dingdong"...
-
Page 8: Packing List
button to restore all the settings and pairing information: A) All the paired call buttons are deleted. B) All the paired manager controller are deleted. C) Prompt voice is “001" mode. D) Key switch mode is “004” mode. E) Cycle display time is “000”. F) Auto clear time is “000”.
