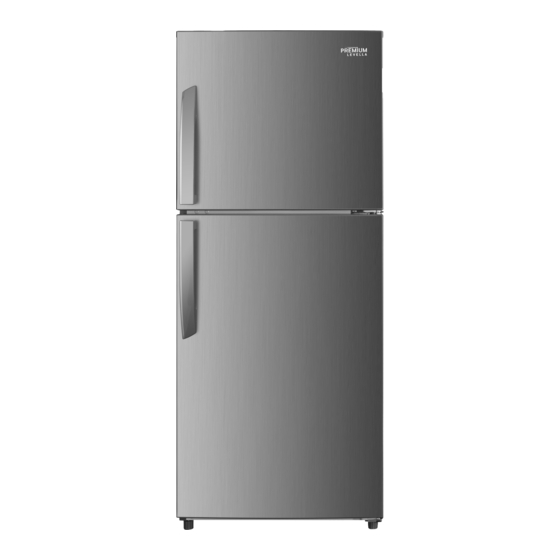

Summary of Contents for Premium PRN7005HW

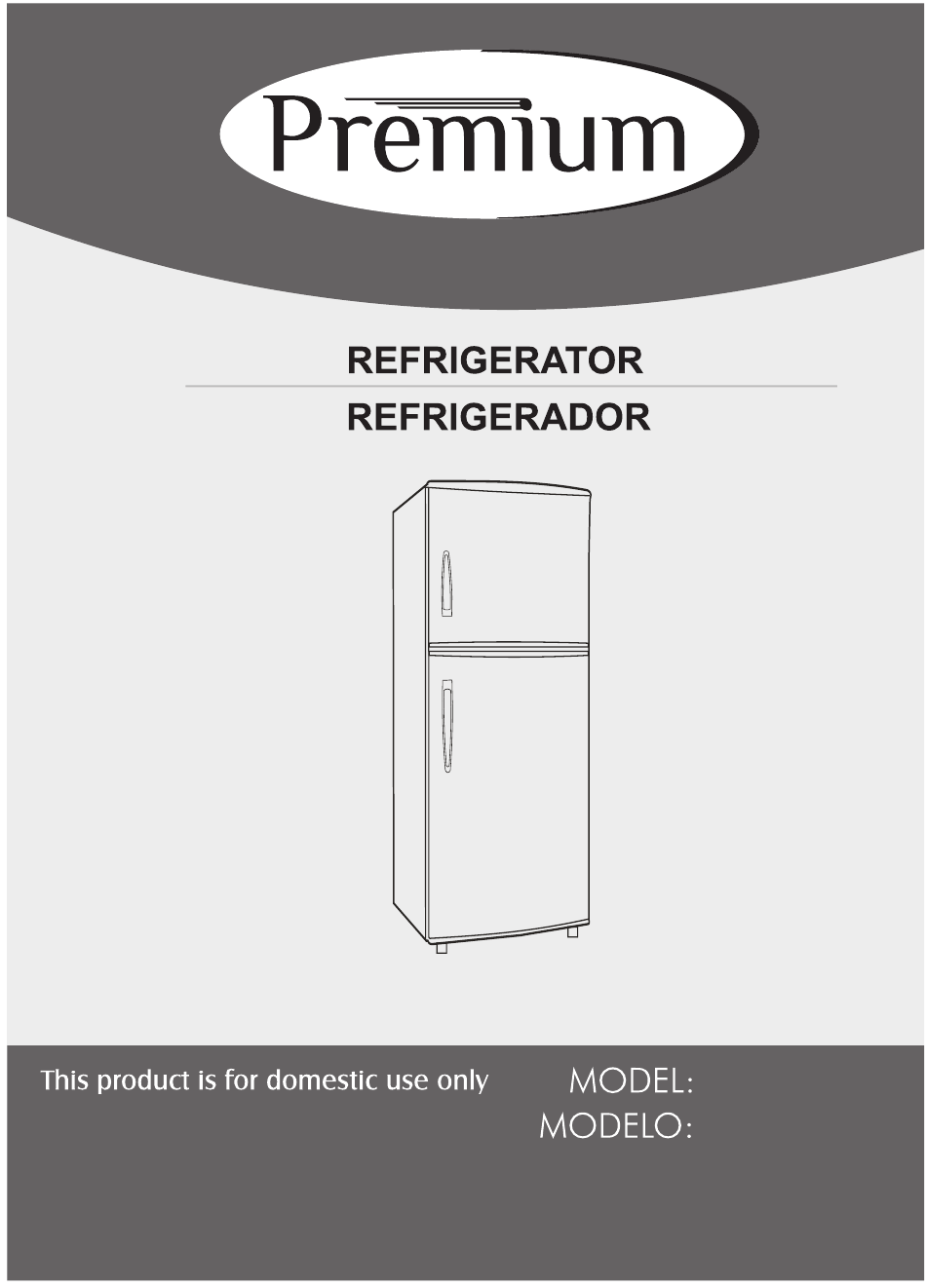

- Page 1 PRN7005HW PRN7006HS Service Manual Important Safeguards...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specification Safety Precautions The Cooling System Wire Diagram Changing the Reversing Door Changing the Bulb Trouble Shooting... -
Page 3: Specification
SPECIFICATION Models PRN7005HW PRN7006HS Capacity 7.0 CU.FT Power Supply 11 V/60Hz Rated Input Power 1 0 W Rated Current 1. A Rated Power of Lamp 10 W Refrigerant/Amount R600a / 1.8 Oz Net Weight 101 Lbs Unit Dimension (HxWxD) 54.5 59.3 141.7... -
Page 4: The Cooling System
Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Wire Diagram
WIRE DIAGRAM CHANGING THE REVERSING DOOR Before reversing the door swing, ensure the appliance is unplugged and empty. Provide additional support for the doors while hinges are being removed. Do not depend on the door magnets to hold the door in place. It is recommended that two people perform this task. - Page 6 2. Remove two screw cover on the front plate. 3. Unscrew the hinge and then remove upper door and place it on a soft pad to unscrew avoid scratch. 4. Remove the pin with a screwdriver and flip the hinge bracket. Then refit the pin to hinge bracket.
- Page 7 7. Unscrew bottom hinge. Then remove the adjustable feet from both side. 8. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Screw Unscrew 9. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.
-
Page 8: Changing The Bulb
REPLACING THE BULB Unplug the AC power cord from the wall. Remove the screw that holds the light bulb cover. Remove the light bulb cover. Unscrew the bulb. Replace with a 10 watt bulb that is the same shape and size. ... - Page 9 Manual de mantenimiento Precauciones importantes...
