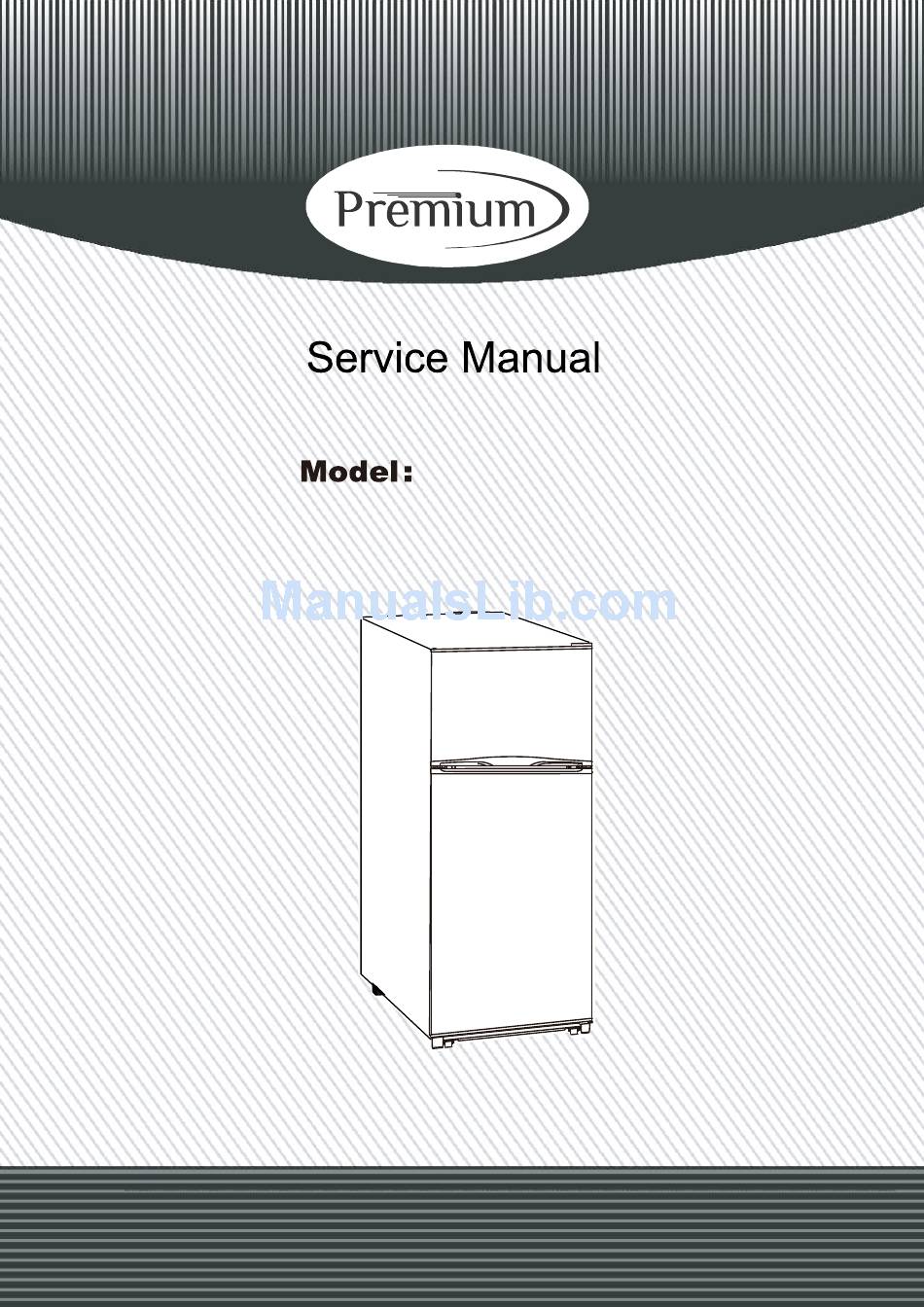

- Page 1 PRN10050MW PRN10060MS...
- Page 2 I . Product Specifications 1, Introduction - Structure: upper refrigeration compartment; lower freezing compartment - Total - frost free - Reversible door - DOE platform 1、 Specifications Model PRN10050MW, PRN10060MS Voltage / frequency 115V~/60Hz Input power (W) 120W current (A) Energy consumption(kwh/24h)
- Page 3 Gross weight (lb) 132.3 II. Safety precautions 115V-60 HZ AC...
- Page 6 III. Disassembly 1. The internal structure: 1、Thermostat 2、Temperature control panel 3、Refrigerator shelf 4、Crisper(The crisper contains ice tray and manual) 5、Adjustable foot 6、Freezer shelf 7、Freezer tray 8、lamp switch 9、Refrigerator tray...
-
Page 7: Operation
OPERATION HMI and keys operation The keys in HMI and display layout are referred in the following figure： ① ② ③ ④ ⑤ 1.1 Key A.SET position set key 1.2 Display screen ① Shift 1 ② Shift 2 ③ Shift 3 ④... -
Page 8: Requesting Assistance Or Service
Temperature Control When using the refrigerator-freezer for the first time or after defrosting, turn the temperature control to set “MAX” for at least two hours before introducing the food to be Repalcing Your Light Bulb Note： All parts removed must be saved to do the replacement of the light bulb. Before removing the light bulb, either turn off the appliance or disconnect the electricity leading into the appliance at the main power supply. - Page 9 Product disassembly display...
- Page 11 user manual 1. product Installation RECOMMENDATIONS： 1) WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 2) WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 3) WARNING –...
- Page 12 9) Please abandon the refrigerator-freezer according to local regulators for it use flammable blowing gas and refrigerant. 10）Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.
-
Page 13: Electric Diagram
VIII. drawing diagram ELECTRIC DIAGRAM Defrost Heater TH Sensor Defrost Fuse Control Board Defrost Sensor Fan Motor R Sensor Lamp Switch R Lamp Protector Compressor 115V~ 60Hz Power Plug VIIII. System diagram Condenser Anti dew tube 冷凝器 干 防露管 燥 Dry and 过... - Page 14 This product is for do me stic use only Use &Ca re ma nua l Importa nt sa fe gua rds...
