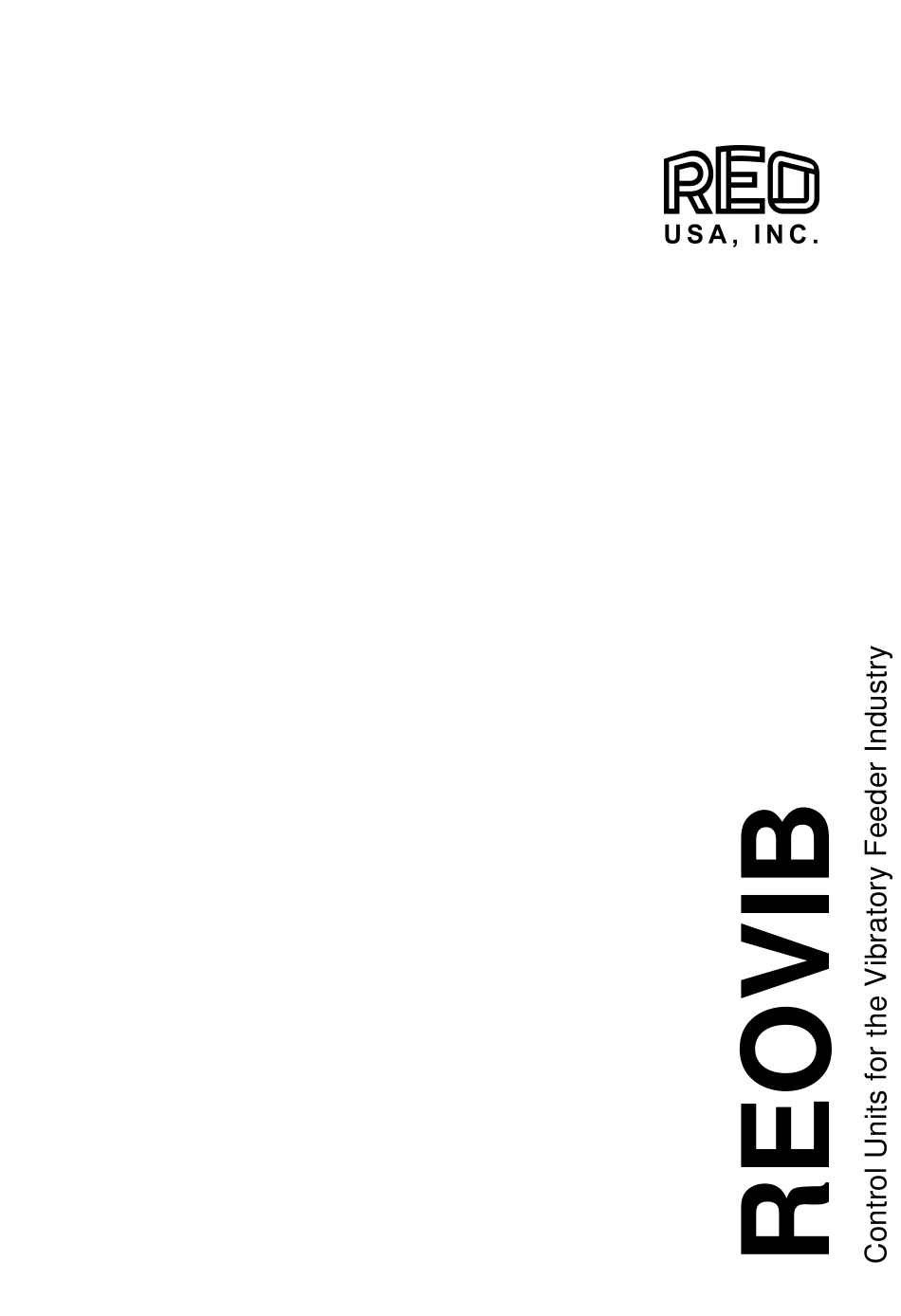

- Page 1 Operating Instructions REOVIB MFS 268-RS232 Appendix – Interface Programming REO-USA, Inc 8450 E 47th Street Indianapolis, IN 46226 Phone +1 (317) 899-1395 +1 (317) 899-1396 http://www.reo-usa.com eMail: info@reo-usa.com 268_RS232_ANL_EN.doc 46/2014...
-
Page 2: Table Of Contents
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK Contents 1.0 General .............................. 3 2.0 Serial Interface Data .......................... 3 3.0 Serial Interface Modes........................4 3.1 Normal operation ........................... 5 3.1.1 Transmission to the controller ....................5 3.1.2 Response from controller ......................5 3.2 Parameter operation ........................ -
Page 3: General
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 1.0 General The REOVIB MFS 268 range of controllers for vibratory feeders can be operated from an RS 232 interface. To do this the frequency controller must be set up to receive serial data, using Menu “C 017” (S.I.F. -
Page 4: Serial Interface Modes
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK The serial interface information is sent as a character string that is closed with a RETURN (CR) for synchronization. Within the string there are three used data words each having four characters (Bytes). -
Page 5: Normal Operation
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 3.1 Normal operation In normal operation the serial interface is used to adjust the set point for the feeder throughput and the digital control signals e.g. the enable. The unit status (ready or fault) is reported. All data words are in the range 0000..FFFF H. -
Page 6: Parameter Operation
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 3.2 Parameter operation The unit specific parameters can be read and changed in Parameter Operation. Before writing parameters a write enable must be sent. Then it is possible to change a single or several parameters. -
Page 7: Send Write Enable
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 3.2.2 Send Write enable H-Byte L-Byte Wort Address Write Key =C0DE H H-Byte L-Byte Word 2 Write Key =B5E7 H H-Byte L-Byte Word 3 Control Word + 8000 H 15 14 13 12 11 10 9 Mode bit must be set to 1 !! All bits not used must be “0”. -
Page 8: Remove Write Enable
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK Receive Confirmation H-Byte L-Byte Word 1 15 14 13 12 11 10 9 Confirmation of the sent address Parameter address + R / W - Bit H-Byte L-Byte Word 2 Confirmation parameter value H-Byte L-Byte... -
Page 9: Bit Configured Parameter
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 3.2.7 Bit Configured Parameter Bit information. Change individual Bits in a control word. Each bit sets a switch which enables or inhibits a function. In the user program this bit “manipulation“ must be isolated in a table. -
Page 10: Parameter Table
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 4.0 Parameter Table Non listed addresses should not be changed. Settings Setting Display- Factory Entry Parameter Value range range Code settings code address HEX (.bit) Förderer 0..100 % 000, 100C 0...FFFF H Ampltude (throughput) -
Page 11: Example Of Serial Interface Communication With Frequency Controller Reovib Mfs 268
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 5.0 Example of serial interface communication with frequency controller REOVIB MFS 268 Variable values are written in italics. 5.1 Normal Operation (set point set at 70 %) Word Contents Send Contents Receive... -
Page 12: Parameter Operation
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 5.2 Parameter Operation (e.g. Set frequency to 50Hz and soft start to 2 seconds) Word Contents Send Contents Receive C0DE H Address write key C0DE H Confirmation B5E7 H Value write key B5E7 H Confirmation... - Page 13 Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK Example for changing bit parameter Word Contents Send Contents Receive 1801 H Parameter address 1801 H Confirmation 0000 H Parameter read 0000 H Parameter value 8000 H + Set Mode bit = 1 C0DE H Confirmation parameter mode Control bits...
-
Page 14: Reset Of Controller
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 5.3 RESET of Controller Word Contents Send Contents Receive C0DE H Adress write key C0DE H Confirmation B5C9 H Value write key B5C9 H Confirmation 8000 H + Set Mode bit = 1 C0DE H Confirmation Control bits... -
Page 15: Dimension
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 6 Dimension 6.1 Dimension 6 A unit Ø5,0 Ø5,0... -
Page 16: Dimension 16 A Unit
Operating Instructions REOVIB MFS 268 - RS 232 Interface Programming ELEKTRONIK 6.2 Dimension 16 A unit Ø5,0 +24V +24V SPEED +10V +24V Ø5,0...
