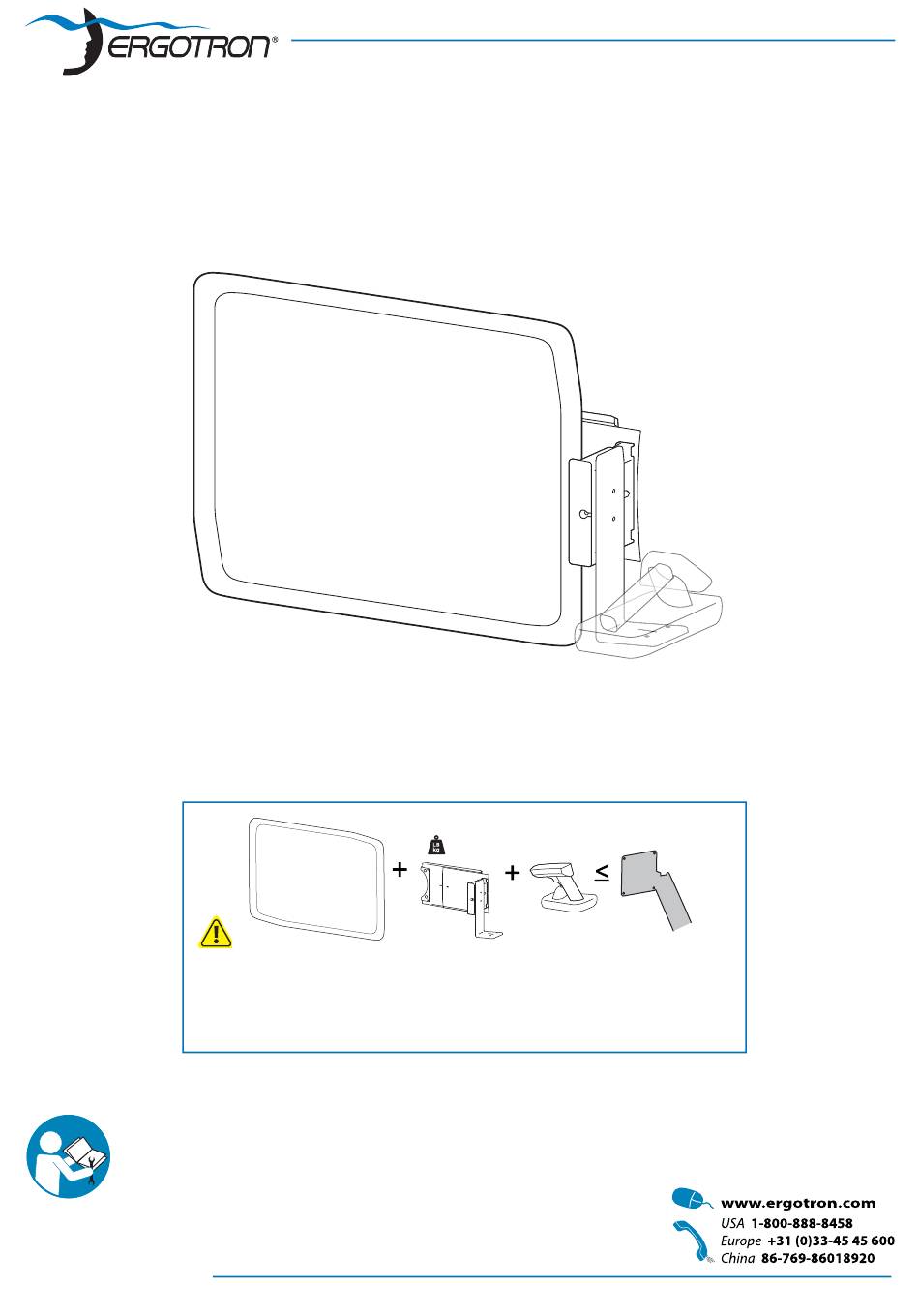

CAUITON: Make sure you know the max. weight capacity of your mounting solution before attaching the scanner shelf. Include the
weight of your monitor, scanner shelf, scanner base and scanner: when fi guring mounted weight on your mounting solution. Failure
to follow this Caution may lead to equipment damage and/or personal injury.
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイド : 日本語
用户指南 : 汉语
888-97-332-G-00 rev. D • 12/14
VESA Scanner Bracket
= 2.2 lbs (1 kg)
1 of 10
Advertisement
Related Manuals for Ergotron 97 815
Summary of Contents for Ergotron 97 815
- Page 1 Failure to follow this Caution may lead to equipment damage and/or personal injury. For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español...
-
Page 2: Tools Needed
Components M3 x 10mm M3.5 x 8mm M4 x 10mm M4 x 14mm 8-32 x 5/16" M4 SEM M4 x 35mm Tools Needed 888-97-332-G-00 rev. D • 12/14 2 of 10... - Page 3 A "stop rotate" screw will keep your display from rotating, which could cause the mounted scanner to fall off . There may already be a "stop rotate screw" installed between your display and the VESA plate. a) Test to see if a "stop rotate screw" is installed by trying to rotate your display. If it will not turn, the "stop rotate screw" is already installed, skip steps 1b - 1d below, and go straight to step 2 on the next page.
- Page 4 NOTE: Do not use thumb screws M4 x 10mm for this installation! NOTE: insert the screws into the VESA plate oposite the side of the display that the scanner will be mounted! Attach part "1A" to VESA plate at the back of your display. Insert two of the provided M4x14mm phillips screws through the bracket, the VESA plate and display.
- Page 5 Loosen the thumb screw on part "1A" (at the back of the display) and adjust so that part "1B" can be attached to part "1A", then attach "1B" to "1A". M4 x 10mm Loosen the thumb screw on part "1A" (at the back of the display) and adjust so that part "1B" comes into contact with the side of the display.
- Page 6 Pull the front section of part "1B" forward so that it grips the front of the display. Tighten with phillips screwdriver until snug. Tighten the front screw until the spacer holds the display snug. 888-97-332-G-00 rev. D • 12/14 6 of 10...
- Page 7 Slide part "2A", L-bracket, into part "1B" NOTE: If the scanner is mounted too low it may interfere with the keyboard tray when moved into the full-up position. In that case, raise the scanner L-bracket (part "2A") higher in relation to the display. Adjust the L-bracket to desired height and tighten screws with a fl at-head screwdriver.
- Page 8 Choose the scanner mount confi guration that matches your scanner. 4-corner mount: attach interface plate to L-bracket using 1 washer and 1 nut, then attach scanner base with 4 phillips screws, 4 washers and 4 nuts. M4 x 14mm Keyhole mount: attach interface plate to L-bracket using 1 washer and 1 nut, then attach scanner base using 2 shoulder screws, 2 washers and 2 nuts.
- Page 9 Single hole, center mount: scanner base attaches directly to the L-bracket using: 1 screw, washer and nut. M4 x 35mm Single hole, center mount plus side screw: scanner base attaches directly to the L-bracket using: 1 screw from bottom, 1 screw from top with washer and nut.
- Page 10 Depending on your product and the adjustment, it may take several turns to notice a diff erence. For local customer care phone numbers visit: http://contact.ergotron.com 888-97-332-G-00 rev. D • 12/14 10 of 10...
