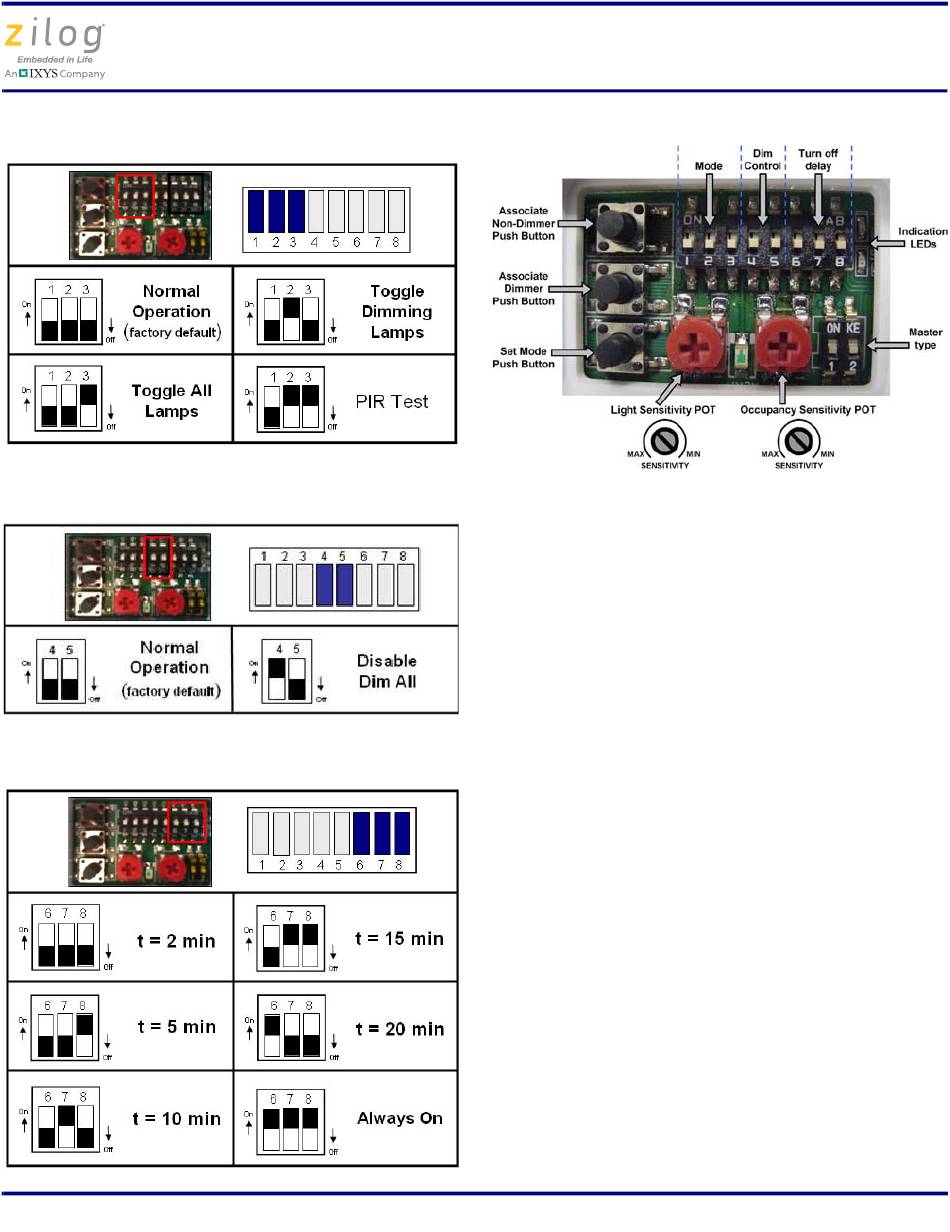

Step 8. Make sure the mode is set to Normal Operation (i.e., DIP
switches 1, 2 and 3 are in the OFF position).
Step 9. Make sure the Dim Control is set to Normal Operation (i.e.,
DIP switches 4 and 5 are in the OFF position).
Step 10. Set the turn‐off delay to the required value (the
recommended setting is 5 minutes).
QS008001‐0311
ZAURA
Step 11. Adjust light and occupancy sensitivity POT, if required.
Step 12. Install a Lithium 3V Type CR123 battery in either battery
slot of the Master. If the Master will be associated with any Range
Extenders, Zilog recommends installing two batteries. The Master
will initialize for a period of up to one minute.
Step 13. If a Range Extender is required, set the Master type switch
to Range Extender (OFF, ON) position, as shown in the figure in Step
7. If no Range Extenders are required in your installation, skip to
Step 17.
Step 14. Set DIP switches 1 through 8 to match the Master; refer to
the figure in Step 11.
Step 15. Adjust the Occupancy Sensitivity POT (if required) and
install a Lithium 3V Type CR123 battery in either battery slot of the
base plate of the Range Extender.
Step 16. Associate the Range Extender to the Master by pressing
the Dimming or Non‐Dimming Associate button on the Master. The
Master will attempt association for a period of 30 seconds.
Please proceed to the next page.
 RF Wireless Lighting Control
Quick Start Guide
Page 2 of 3
