※ Instructions and screens on this guide may differ, depending on the settings.

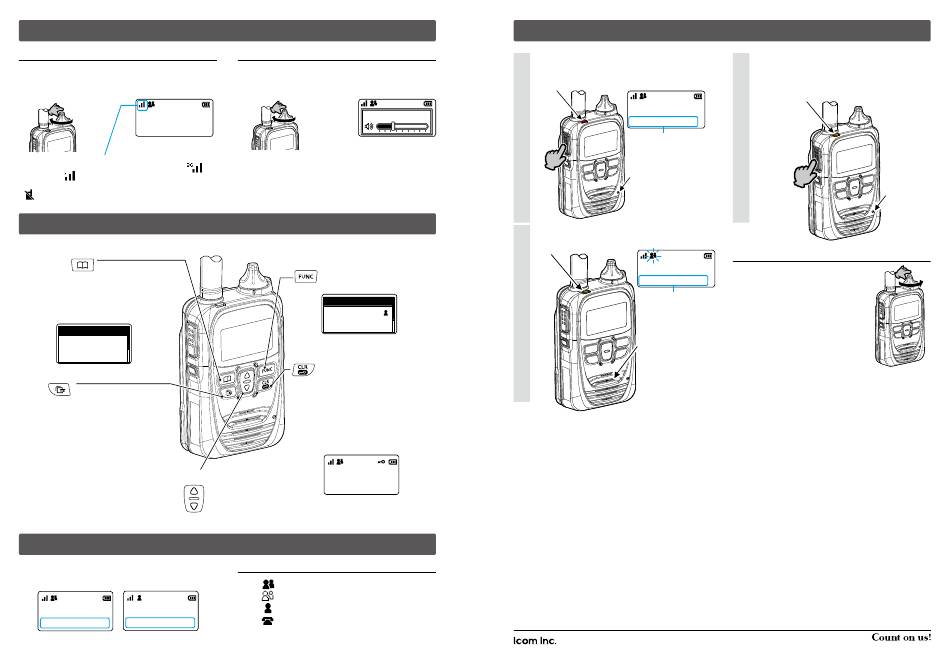

8. TURNING ON THE POWER/ADJUSTING THE AUDIO LEVEL
Turning ON the power
Turn [PWR/VOL] clockwise to set the 12 O'clock position.
 A beep sounds.
※ The dial is made physically tight for the dust and water resistance.
Turn
10/4 12：57
全体
Standby screen
The signal strength is represented by 3 bars indication.
In the 3G mode, the resceived signal strength is indicated by the
In the LTE mode, icon is displayed.
※ W hen the terminal is out of the service area, or cannot receive the signal,
（out-of-service） icon blinks.
9. ABOUT THE KEY OPERATIONS
★ Can be used, depending on the presetting.
[Call List address book] key
★
When making a group or
individual call, select calling
party from this list.
Push this button again to switch the radio screen for
"All Call","Group Call" or "Individual Call" address
book.
個別
00001
個 別 00001
Address book: Individual
[Call history] key ★
Repeatedly push to select call history from the TX log,
RX log, TX MSG log, RX MSG log, TX TEL log or RX
TEL log.
• Selectable log may differ, depending on the IP1000C
settings.
• Push [Up]/[Dwn] to select a desired log.
• Hold down until "Emergency" is displayed to send an
emergency call, depending on the settings.
[▲]/[▼] key
10. About the Call types （Calling party）
When Address Book is activated, the radio will display calling party.
Otherwise the radio pre‐programmed calling party will be displayed.
10/4 12：57 10/4 12：57
全体 営 業 ８
Individual Call Screen
All Call screen
Adjusting the audio output level
Turn [PWR/VOL] to adjust the audio output level.
Set the output to a suitable level.
•A volume level between 0 and 32 is displayed.。
Turn
音量：
Standbyscreen
NOTE: If the output level is set to the minimum level, the beep does not
icon. sound.
[Function] key
★
Selects the message to send,
Presence or Talk group.
メッセージ
個別 00005
集合して ください
(Example: A message is selected.)
[CLR/LOCK] key
P u s h t o b r i n g b a c k n o r m a l
operating screen from a function
s c r e e n s u c h a s C a l l H i s t o r y
screen.
Hold down to turn the key lock
ON or OFF.
※ [PTT] key and [PWR/VOL] dial
can be operated even while in
the Key Lock function is acti-
vated.
10/4 12：57
全 体
Push to scroll the address book or
call history table.
(Example: Key Lock falling munction is ON.)
Calling Mode Icons*
： All Group Call
： Group Call
： Individual Call
： Phone Call
*
Blink when a call or message is received.
11. Making a Call
1
Hold down [PTT], and speak into the microphone.
 [TX/RX] indicator lights red while [PTT] is pushed.
Lights red
10
Hold down
2
When receiving a call, [TX/RX] indicator lights green.
Lights green
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
3
While receiving a call, push [PTT] to talk in the full duplex
mode*.
 In the Full Duplex mode, ［TX/RX］ indicator lights orange.
* Depending on the presetting, ask your dealer for detail.
Lights orange
10/4 12：57
全 体
All Call transmitting screen
Microphone
Hold down
Blinks when receive a Call
Turning OFF the power
10/4 12：58
Turn [PWR/VOL] maximum counter
全体
clockwise.
All Call receiving screen
Speaker
Microphone
Turn
