Associated Electrics Reflex 14B Manual

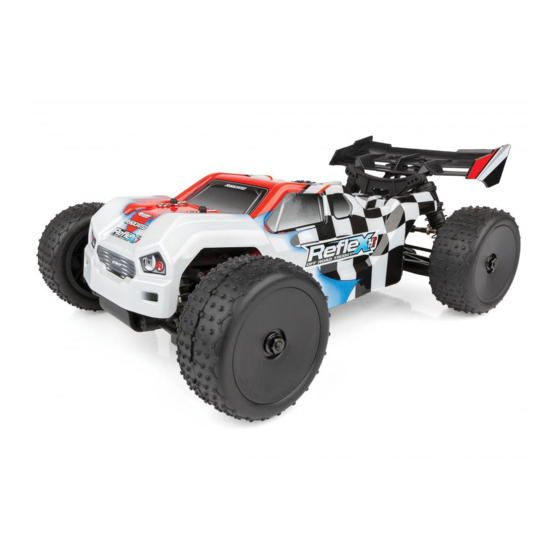

1:14 scale 4wd electric off road buggy/truggy rtr. brushless power ready-to-run
Hide thumbs Also See for Reflex 14B:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reflex 14B and is the answer not in the manual?

Questions and answers

Related Manuals for Associated Electrics Reflex 14B

Summary of Contents for Associated Electrics Reflex 14B

  • Page 2 This symbol indicates a special note or instruction in the manual. :: Additional Your new Reflex 14B/14T RTR comes assembled. The following items are needed for completion • 6-cell NiMh or 2 LiPo battery • Suitable battery charger • (4) AA batteries Tools included: •...
  • Page 3 :: Hardware - 1:1 Scale View Flat Head (fhcs) Cap Head (shcs) Ball Bearings 2.5x10mm (31350) 2.5x12mm (8691) 4x7x2.5mm (21512) Flat Head (fhst) Set Screws 4x8x3mm (21512) 3x2.5mm (31500) 2x8mm (21546) 8x12x3.5mm (21512) 3x3mm (25225) 2.6x8mm (21546) 3x8mm (4670) 2.6x10mm (21546) Button Head (bhcs) Nuts (lock/plain) Shims and Washers...

  • Page 4: Battery Installation

    :: Quick Start Guide Battery Charging Steps and Safety: Remove the battery from the vehicle before charging. Place battery on a fire resistant surface. Avoid any contact with water or other liquids. Be sure to select the correct charging mode for the type of battery you are charging.
  • Page 5 7/18 :: Quick Start Guide - (cont.) Radio System Tuning and Controls: RULE: Transmitter on First/Vehicle on Second, Vehicle off First/ Transmitter off Last! Slide the battery cover to remove cover. Install alkaline or rechargeable AA size batteries into the battery holder. Slide the battery cover back into place making sure it is completely closed and secure.
  • Page 6 :: Step 1 21516 21516 Washer Washer 4x8x0.5mm 4x8x0.5mm 21530 21530 O-Ring O-Ring 3.8 x 1mm 3.8 x 1mm 21529 21529 Diff sun Diff 21529 gear case Diff 21524 21516 Diff 21524 outdrive 1.5 x 6mm Diff outdrive :: Step 2 21529 21529 Diff sun...
  • Page 7 :: Step 4 21516 21516 Washer Washer 4x8x0.5mm 4x8x0.5mm 21529 21530 21530 Diff sun O-Ring O-Ring 21516 gear 3.8 x 1mm 3.8 x 1mm 1.5 x 6mm 21529 21529 Diff Diff case 21524 21524 Center Diff diff outdrive shaft :: Step 5 21529 21516 Diff sun...
  • Page 8 :: Step 7 Top of set screw head 4670 should be flush with 3x8mm the top of the chassis set screw 21500 Chassis :: Step 8 21524 Center diff outdrive 21516 21526 21512 Pinion 1.5 x 6mm 4x8x3mm gear bearing (15T) :: Step 9 21504...
  • Page 9 :: Step 10 89215 21546 M2.5 21512 M2.6x8mm locknut 4x7x2.5mm 21509 21509 BHST bearing Steering rack bushing 21510 Steering post 21522 Ball stud 21505 12.5mm 21505 Steering bellcrank Steering 31350 bellcrank (left) M2.5x10mm (right) FHCS :: Step 11 31520 M2.5x6mm 31520 21504 21546...
  • Page 10 :: Step 13 21546 M2.6x10mm BHST 21503 Shock 21505 tower, Shock front tower support, rear 21522 Ball stud 21546 12.5mm M2.6x8mm BHST :: Step 14 21503 21503 Wing mounts Shock tower, (right, left) rear 21503 Wing mount brace 21522 Ball stud 21546 21546 12.5mm...
  • Page 11 :: Step 16 21501 Skid plate, 21546 front 21546 M2.6x6mm M2.5x10mm BHST FHST :: Step 17 21522 Ball stud 21517 21546 12.5mm Universal M2.6x8mm drive shaft BHST 21507 Steering block, left 21521 21507 Crush Caster tube block, left 21523 21512 Caster block 4x8x3mm Build left and right sides!
  • Page 12 :: Step 19 21502 21501 Rear arms mount, C 21511 Inner 21501 hinge pin, Arm mount 3x47mm bushing 21502 21546 21501 Rear arm M2.6x6mm spacers BHST mount, D :: Step 20 21518 21522 Ball stud 12.5mm bone axle 21508 Washer, thin 21521 21501...
  • Page 13 :: Step 22 21514 21513 Ball Cup M3x35mm turnbuckle Front Camber Turnbuckle Orient the flange to the left throughout the 20.00mm car. It indicates which end has the left hand threads! Build x2 (right and left side) :: Step 23 21513 21514 M3x35mm...
  • Page 14 :: Step 25 21538 21536 E-clip Shock 21537 Shock 21530 piston Shock 21534 cap o-ring Shock body, Front Shock Fluid: front (short) 30wt #5422 21534 21535 21537 Rear Shock Fluid: Shock body, Shock shaft, 21530 Shock 30wt #5422 rear (long) front (3x37mm) Shock o-ring...
  • Page 15 :: Step 28 21522 21522 Ball stud Ball stud 12.5mm 12.5mm 8691 8691 M2.5x12mm M2.5x12mm SHCS SHCS Build x2 (right and left side) :: Step 29 21504 21546 Body mount, M2.6x10mm rear BHST, silver 21504 31520 21546 Center diff M2.5x6mm M2.6x8mm BHCS BHST...
  • Page 16 :: Step 31 21546 M2.6x8mm BHST 21514 21513 Steering link Steering ball Cup link rod 21505 Servo saver Steering Link 21522 17.40mm Pivot ball 21546 M2x8mm FHST :: Step 32 21546 21546 M2.6x8mm M2x8mm BHST FHST 21522 Pivot ball 21546 Washer 2.7x0.5mm 6727...
  • Page 17 :: Step 34 21550 21547 1:14 mini 1:14 mini pin tire, pin tire, wide narrow 21551 1:14 wheel, wide (black) 21549 91738 1:14 wheel, M4 serrated narrow nuts, black (black) 14B: x2 narrow front wheel/tires Install x2 narrow front wheel/tires 14B: x2 wide rear wheel/tires Install x2 wide rear wheel/tires :: Step 35...
  • Page 18 :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your vehicle.
  • Page 19 :: Shocks :: Gear Differentials 21530 1:14 Diff & Shock O-rings Set 21512 1:14 Bearing Set 21533 Shock Springs, 2.25 lb in, L40.5mm 21516 1:14 Drive Pins Set 21534 1:14 Shock Body Set 2 ea. 21524 1:14 Outdrive Kit 21535 1:14 Fr &...
  • Page 20 :: Transmission 21504 1:14 Upper Plastics Set 21505 1:14 Steering, Battery, Esc Parts Set 21509 1:14 Steering Plate 21510 1:14 Steering Posts 21512 1:14 Bearing Set 21546 21546 21522 21522 1:14 Ball Studs Set 21546 1:14 Hardware Set 21512 31350 M2.5x10mm FHCS 31520 M2.5x6mm BHCS...
  • Page 21 :: Turnbuckles and Servo Mounts 21505 1:14 Steering, Battery, Esc Parts Set 21506 1:14 Servo Saver Spring 21546 21546 21513 1:14 Turnbuckle Set 21546 21514 1:14 Turnbuckle Rod End Set 21505 21522 1:14 Ball Studs Set 21546 21546 1:14 Hardware Set 21546 21505 21522...
  • Page 22 :: Front Shock Tower 21503 1:14 F/R Shock Towers & Wing Mounts 21522 1:14 Ball Studs Set 21546 1:14 Hardware Set 21503 21522 21522 21522 21546 21522 21546 21546 21546 :: Rear Shock Tower 21173 Body Clips 21173 21503 1:14 F/R Shock Towers & Wing Mounts 21505 1:14 Steering, Battery, Esc Parts Set 21522...
  • Page 23 :: Front Arm 8691 M2.5x12mm SHCS 21502 1:14 F/R Arms & Spacers 21507 1:14 Rear Hubs, Caster Blocks & Inserts 21523 21508 1:14 Steering Blocks & Wheel Hex Set 21511 1:14 Hinge Pin Set 21512 1:14 Bearing Set 21522 21516 1:14 Drive Pins Set 21546 21517...
  • Page 24 :: Front Bulkhead / Steering 21501 1:14 Skid Plates & Arm Mounts 21546 1:14 Hardware Set 21501 21501 21501 21501 21546 21501 21501 21501 21546 21546 21501 21501 21546 21546 21501 21501 21546 21546 21546 :: Chassis 4670 M3x8mm Set Screw 21500 1:14 Chassis 21546...
  • Page 25 :: Reedy Electronics :: Lubes & Adhesives / Decals / Misc. AA Alkaline 1.5V (4) 1105 FT Green Slime Shock Lube 280-SL4 4500kV Sensorless Brushless Motor 1596 FT Locking Adhesive 27131 D115F Servo 1597 FT Tire Adhesive, medium 27202 123-S AC LiPo Compact Balance Charger 6588 Black Grease - 4cc 27330...

This manual is also suitable for:

Reflex 14t
