Assembly Instructions
WALTHER-Dosing Pen
Article Number:
NOTE
Please read the Assembly Instructions carefully before first using the incomplete device and
strictly adhere to the instructions!
The incomplete device may only be worked with and worked on by persons who are familiar
with the assembly instructions and the current regulations for industrial safety and accident
prevention.
Always keep a translated version of the 'original Assembly Instructions' at the incomplete device!
The assembly instructions have to be close at hand any time!
Assembly Instructions – Dosing Pen VMS-13-EH
VMS-13-EH-0.3
VMS-13-EH-0.5
VMS-13-EH-1.0
VMS-13-EH-1.5

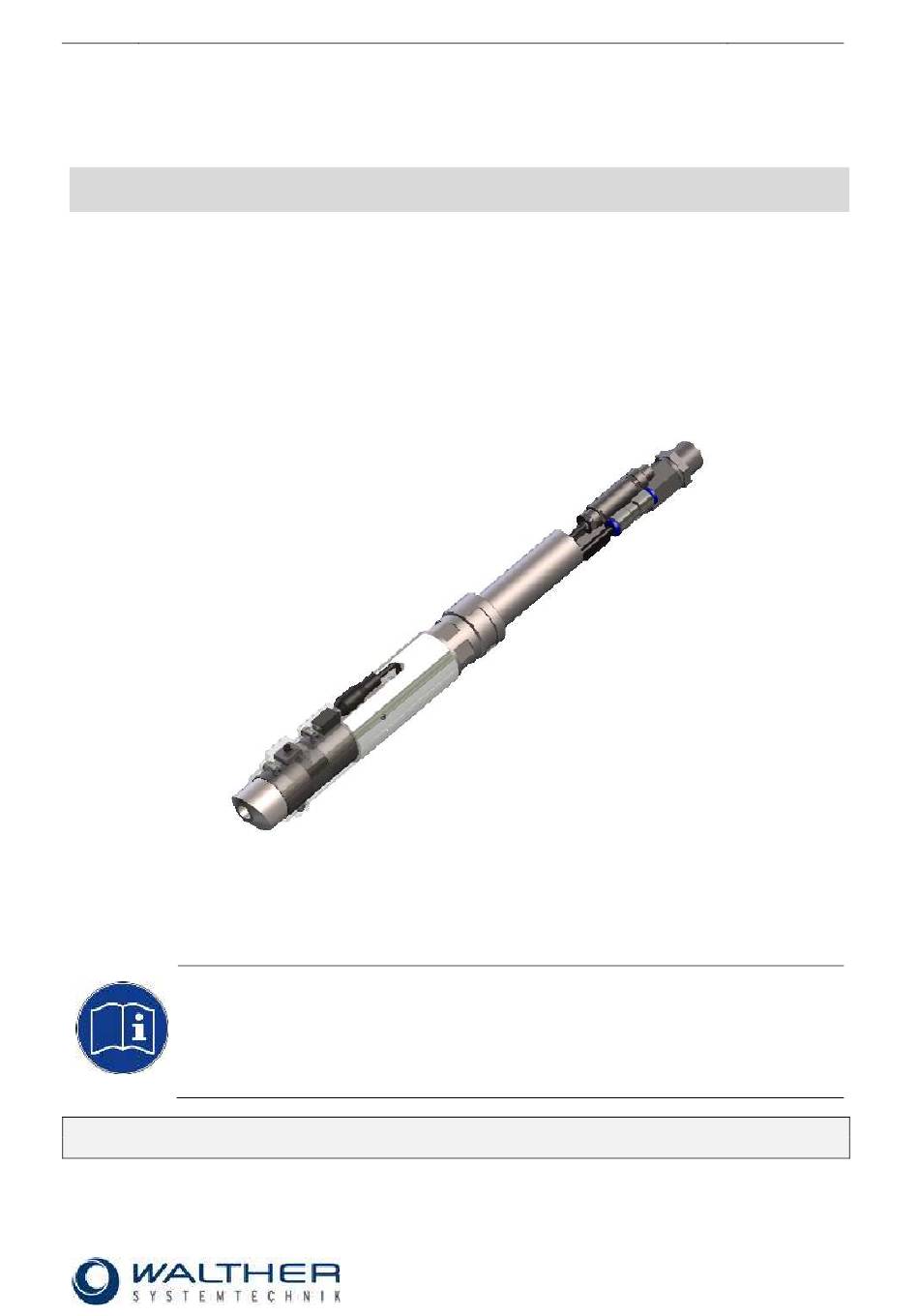

Fig.: WALTHER-Dosing Pen
©
VMS-13-EH
©
VMS-13-EH
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de
Page 1 of 20
