Spring Cart Launcher

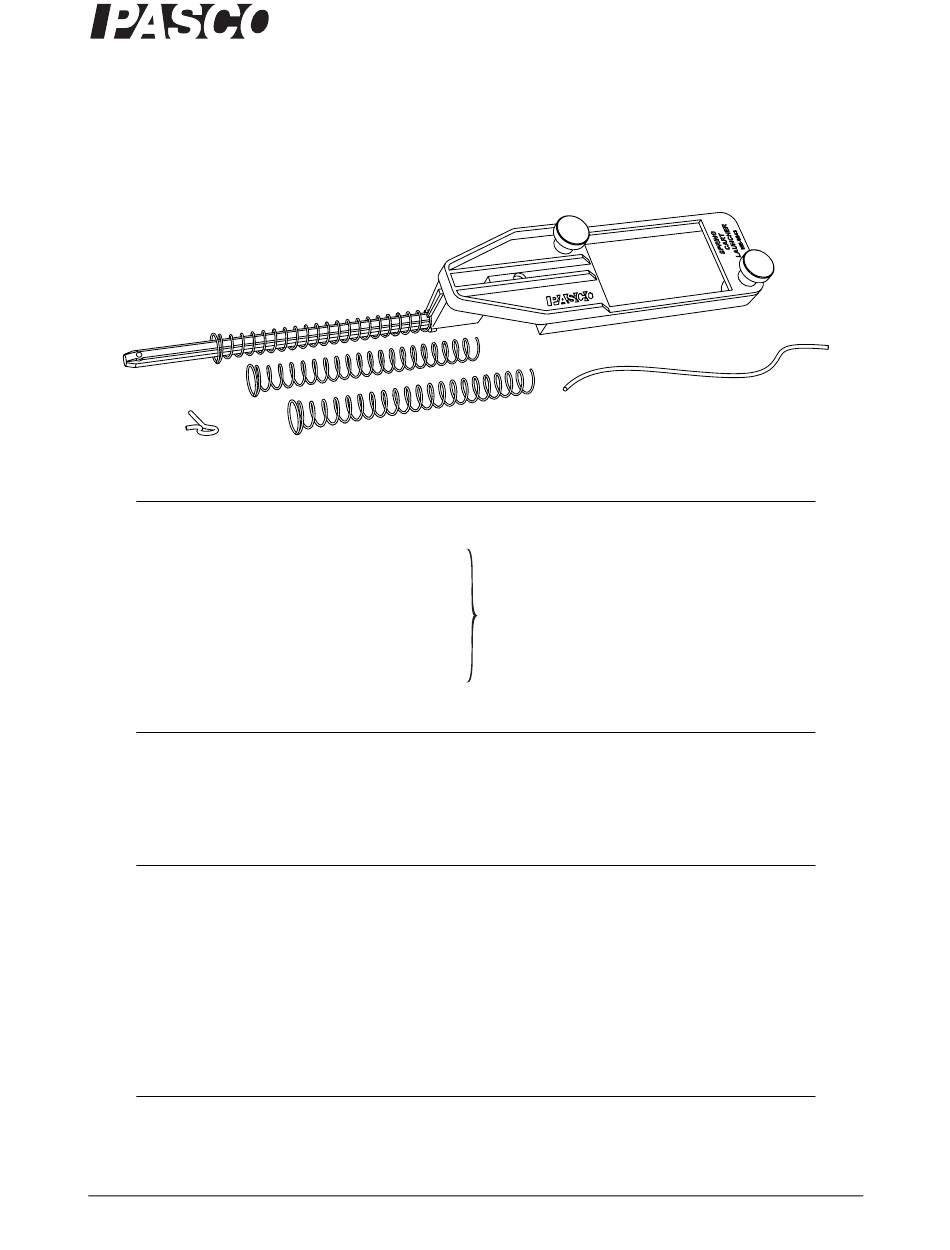

Included Equipment
Spring Cart Launcher
Firm Spring (black)
Medium Spring (blue)
Soft Spring (red)
Release Pin
String
Required Equipment
2
Cart
2
Track
3
End Stops
Recommended Equipment
250 g Compact Cart Mass
For sensor-based method:
Motion Sensor
4
Force Sensor
For traditional method:
Super Pulley with Clamp
Hooked Mass Set
1
ME-6847 replacement kit includes (2) of each spring and (4) release pins
2
This part is included in many of the PASCO dynamics systems. See PASCO catalog or www.pasco.com for details.
3
New-style plastic end stops required. These are included with PASCO dynamics systems starting in 2007.
4
PASPORT sensors require a PASPORT interface. See PASCO catalog or www.pasco.com for details.
800-772-8700
®
ME-6843
Quantity
1
1
1
1
2
1 m
1
1
2
2
4
1
1
1
1
In s t r u c ti on M an u a l
Replacement Part Number
ME-6843
1
ME-6847
Part Number
ME-6951, ME-6950, ME-9430, or ME-9454
ME-6953 or similar
ME-9469 (2-pack)
ME-6755
PS-2103
PS-2104
ME-9448A
SE-8759 or similar
0 1 2 - 0 9 9 2 4 A
