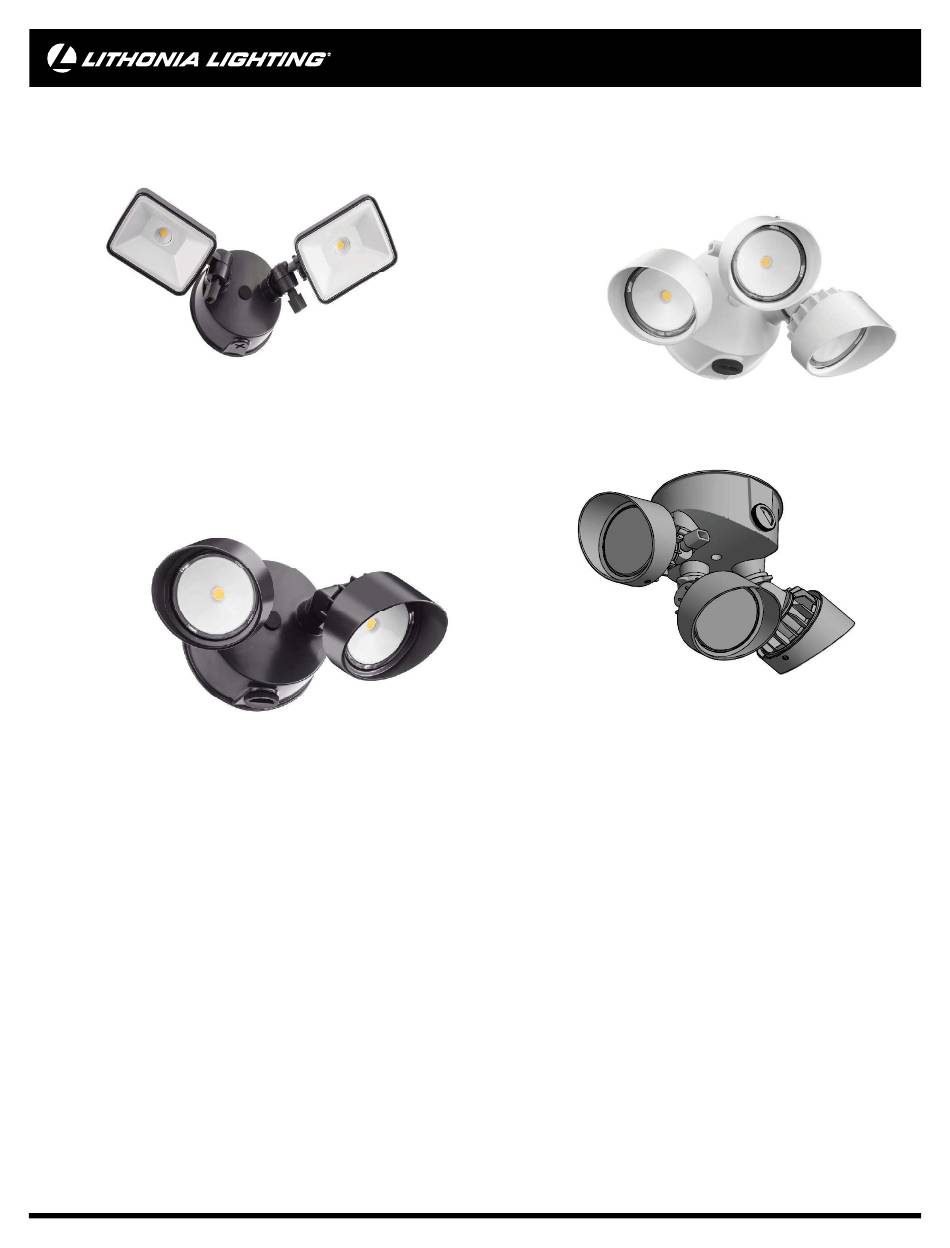

INSTALLATION INSTRUCTIONS LED Security Floodlight Model Number(s): OLF 2SH 40K 120 OLF 2SH 40K 120 PE* Model Number(s): OLF 3RH 40K 120 OLF 3RH 40K 120 PE* Model Number(s): OLF 2RH 40K 120 OLF 2RH 40K 120 PE* Suitable for wall mount or eave mount.
Page 2
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW THESE SAFETY INSTRUCTIONS! CAUTION electric shock, falling parts, cuts/abrasions, and other hazards please RISK OF FIRE Keep combustible and other materials that can burn, away from lamp/ • Before installing, servicing, or performing routine maintenance upon this lens.
Page 3
INSTALLATION INSTRUCTIONS FIXTURE PACKING LIST Description Quantity 9) Adjustment Knob 1) LED Light Fixture..............1 2) Photocontrol with adjustable cover (PE model only) ... 1 1) LED Light Fixture 3) 1-1/4”(2H) & 2”(3H) Mounting Screw ......... 1 4) Cross Bar ................1 5) 3/4”...
Page 4
TROUBLE SHOOTING GUIDE Trouble Shooting Guide to diagnose and correct the problem. • Verify that power is turned on at switch and breaker • • Verify that line voltage is correct (120V) The photocontrol in the “PE” models is designed to turn on rotatable cover to allow adjustment of light entry.
