PRODUCT DESСRIPTION
HDMI modulators MHD001, MHD001P are intended to encode HDMI video and audio signal to DVB-T signal and modulate
it in VHF and UHF ranges. MHD001P is packed with external mains power supply.
The modulators are intended for indoor use only. Suitable for moderate and tropical climates.

SAFETY INSTRUCTIONS

Installation of the modulator must be done according IEC60728-11 and national safety standards.
The modulator is powered from external power supply +12 V. This voltage is not dangerous to life.
Any repairs must be done by a qualified personnel.
To avoid the electric shock follow these instructions:
Do not plug mains power supply of the modulator into the mains until all cables have been connected correctly;
To disconnect the modulator from mains completely, disconnect plug of modulator power supply from mains socket;
Modulator shall not be exposed to dripping or splashing water and no objects filled with liquids, such as vases, shall be
placed on it;
Avoid placing modulator next to central heating components, near highly compustible materials and in areas of high humidity;
Before connecting the modulator to multimedia system, be sure that system is installed in accordance to national safety standards;
Devices of multimedia system should have easy access to disconnect them from the mains supply;
No naked flame sources, such as lighted candles, should be placed on modulator;
If the modulator has been kept in cold conditions for a long time, keep it in a warm room no less than 2 hours before
plugging into the mains;
Do not insert any objects into ventilation openings;
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains;
Mount the modulator on not flammable wall or in not flammable installation box in vertical position with power supply
located on the left. The modulator must be fixed with steel screws Ø 3.5-4 mm. The screws are not included in a package;
From top, front and bottom of installed modulator must be at least 10 cm free space.

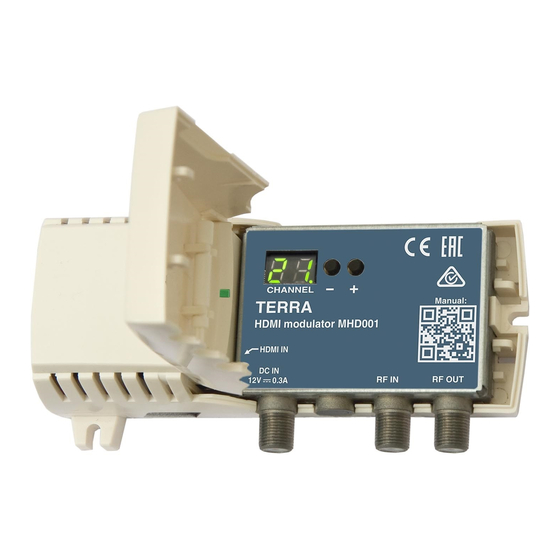

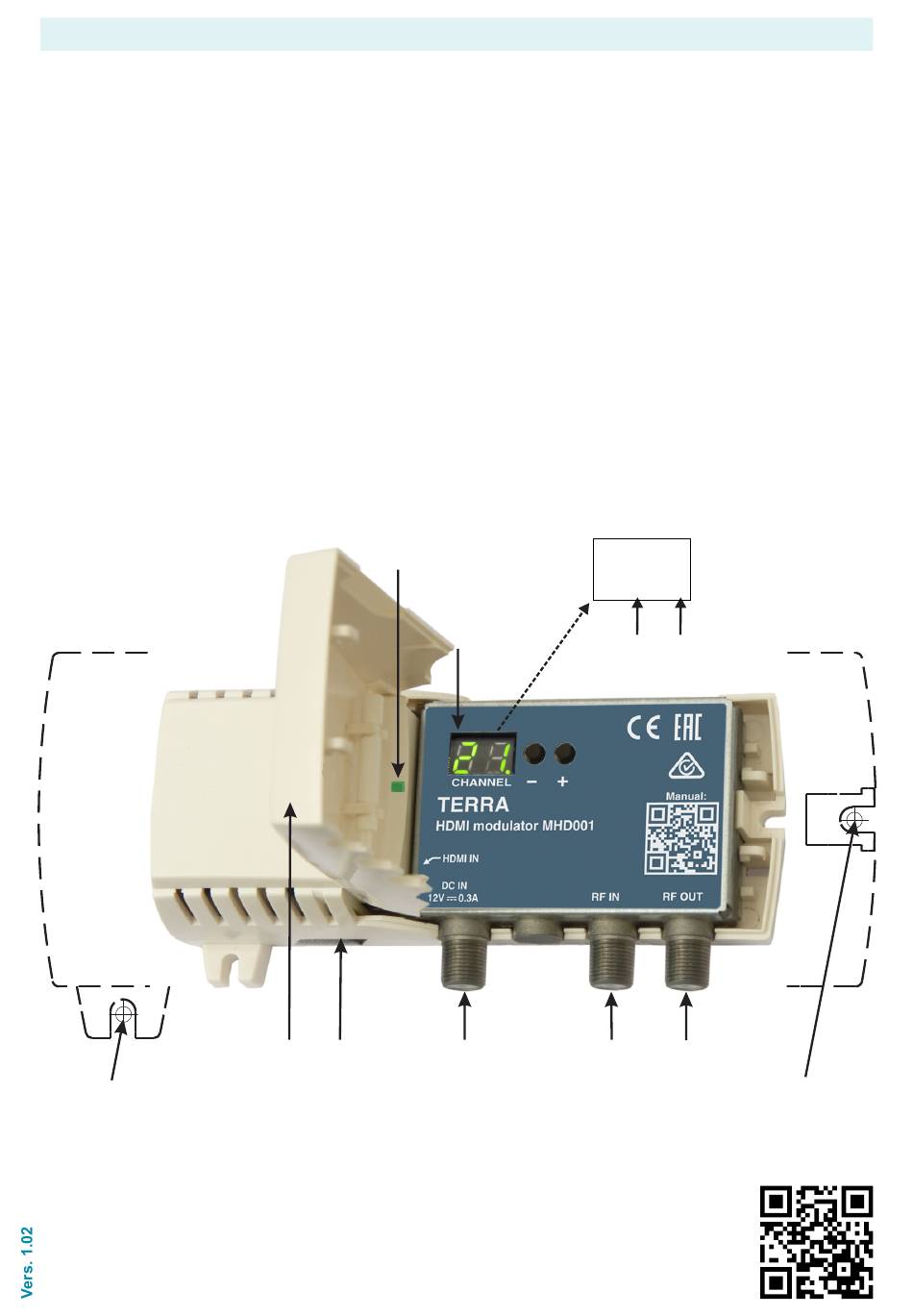

EXTERNAL VIEW

mounting hole
HDMI MODULATORS MHD001, MHD001P
7
1
1 - HDMI input connector
2 - DC IN - DC entry 3.5/1.3 mm (DC jack)
3 - RF IN - RF signal input connector (F type)
4 - RF OUT - RF signal output connector (F type)
5 - two-digit LED display
6 - DC voltage indicator
7 - exterior lid (open by hand)
8 - setting mode indicator
9 - HDMI signal presence indicator
6
5
2
1
2. 1.
8
9
3
4
mounting hole
Figure 1.
Manual:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MHD001P and is the answer not in the manual?

Questions and answers

Summary of Contents for Terra MHD001P

  • Page 1 HDMI MODULATORS MHD001, MHD001P PRODUCT DESСRIPTION HDMI modulators MHD001, MHD001P are intended to encode HDMI video and audio signal to DVB-T signal and modulate it in VHF and UHF ranges. MHD001P is packed with external mains power supply. The modulators are intended for indoor use only. Suitable for moderate and tropical climates.
  • Page 2 INSTALLATION INSTRUCTIONS Read the safety instruction first. Installation of system according standard IEC60728-11 ensures safety of personnel and prevents apparatus against damaging due to lightning or other sources of overvoltage surges. To change the modulator settings, open the plastic cover. If RF IN connector on the modulator is not used, connect the 75 Ω...
  • Page 3 2. DC power supply adapter from 5.5/2.1 mm to 3.5/1.3 mm ..... 1 pcs. 3. Load 75 Ω, type F .................. 1 pcs. 4. External mains power supply +12 V 1 A max. (only for MHD001P) ..1 pcs. 5. User manual ..................1 pcs.
  • Page 4 UHF BAND CHANNELS UHF BAND CHANNELS VHF BAND CHANNELS (REGIONS: EUROPE, NEW ZEALAND, (REGION: AUSTRALIA) (REGIONS: EUROPE, NEW ZEALAND, UNITED KINGDOM, RUSSIA) UNITED KINGDOM) Table 2 Table 3 Table 4 Bandwidth Channel Center freq. Bandwidth Channel Center freq. Bandwidth Channel Displayed Center freq.
