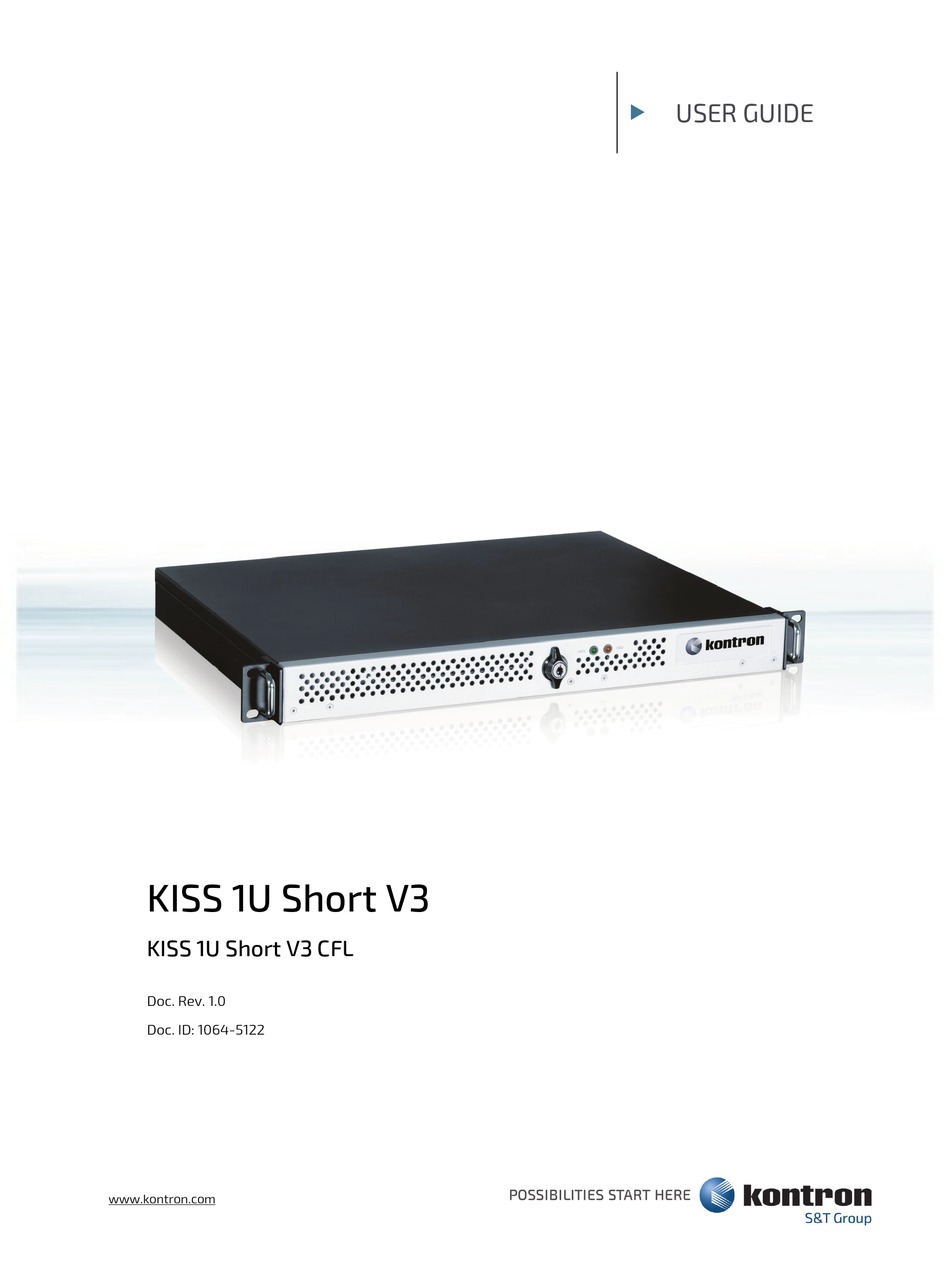

- Page 1 USER GUIDE KISS 1U Short V3 KISS 1U Short V3 CFL Doc. Rev. 1.0 Doc. ID: 1064-5122 www.kontron.com // 1...
- Page 2 KISS 1U Short V3 - Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE (COLLECTIVELY "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron products as a component in High Risk Applications is entirely at your own risk. To minimize the risks associated with your systems and applications, you must provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
KISS 1U Short V3 - Rev. 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
KISS 1U Short V3 - Rev. 1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. - Page 10 10.3. Replacing the Lithium Battery ................................45 Technical Data ....................................46 11.1. Block Diagrams ......................................46 11.1.1. Block Diagram KISS 1U Short V3 CFL .............................. 46 11.2. Technical Specification ..................................47 11.3. Electrical Specification ..................................48 11.4. Mechanical Specification ..................................48 11.5.
-
Page 11: List Of Tables
Figure 16: Side view ......................................26 Figure 17: Cover underside .................................... 27 Figure 18: Example of KISS 1U Short V3 configuration with mainboard and low-profile expansion card ......28 Figure 19: Loosening the knurled fastening screws on the rear side ..................... 31 Figure 20: Pull and release the cover ................................ -
Page 12: 1/ General Safety Instructions For It Equipment
Instructions for IT Equipment are not observed, it could lead to injuries to the operator and/or damage to the product. Kontron is exempt from accident liability, also during the warranty period if the instruction within this user guide are not observed. -
Page 13: Operation Of Laser Source Devices
KISS 1U Short V3 - Rev. 1.0 Additional safety instructions for DC power supply circuits To guarantee safe operation of products with DC power supply voltages larger than 60 volts DC or a power consumption larger than 120 VA, observe that: ... -
Page 14: Electrostatic Discharge (Esd)
KISS 1U Short V3 - Rev. 1.0 1.2. Electrostatic Discharge (ESD) A sudden discharge of electrostatic electricity can destroy static-sensitive devices. Proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the following precautions: Transport boards in ESD-safe containers such as boxes or bags. -
Page 15: 2/ Introduction
KISS 1U Short V3 - Rev. 1.0 2/ Introduction This user guide focuses on describing the special features of the KISS 1U Short V3 made by Kontron. New users are recommended to study the instructions within this user guide before switching on the power. -
Page 16: 3/ Scope Of Delivery
1065-0865 Fan assembly 3.2. Shipment, Packaging and Unpacking The KISS 1U Short V3 is packed together with all standard parts in a product specific cardboard packaging with suitable shock absorbers inside. Each item is packaged separately. 3.3. Type Label Figure 2: Type label example www.kontron.com... -
Page 17: 4/ Product Description
LED and a hard disk activity LED. The KISS 1U Short V3 is delivered with a 400 W Power Supply Unit (PSU) with an input voltage range of 100 V to 240 V. -
Page 18: Front Side
KISS 1U Short V3 - Rev. 1.0 4.1. Front Side The front side consists of two handle brackets for installation in a 19” industrial rack and a front access panel with two front access panel side-plates attached via the handle brackets. -
Page 19: Figure 9: Front Side With Front Access Panel Open
KISS 1U Short V3 - Rev. 1.0 The power button, LED Indicators, two USB 2.0 ports, a filter pad holder and the integrated drives are located on the front side behind the front access panel. Figure 9: Front side with front access panel open Bump stop for the front access panel D1: drive Bay for one 5.25"... -
Page 20: Usb Ports
AC Power cable and power connectors must always remain easily accessible. The KISS 1U ShortV3 is only completely disconnected from the mains power supply when the AC power cable is disconnected from the mains power socket or the KISS 1U Short V3’s input power socket (Figure 12, pos. 7). -
Page 21: Front Access Panel
When locked the front access panel cannot be opened, and the drives, filter pad holder and power button are not accessible. The KISS 1U Short V3 can be operated without the front access panel, see Chapter 8.3: Removing the Front Access Panel and Front Access Panel Side-Plates. -
Page 22: Drive Bays
KISS 1U Short V3 - Rev. 1.0 4.1.5. Drive Bays The system can be equipped with up to two drive bays. Drive bays D1 and D2 are front accessible (Figure 9, pos.7, 8) and supported by RAID. Table 4: Drive Bays... -
Page 23: Rear Side
KISS 1U Short V3 - Rev. 1.0 4.2. Rear Side The rear panel includes the external interfaces of the integrated mainboard, any additional interfaces of the expansion card, the power supply unit (PSU), and the air exhaust openings. The positioning and number of the interfaces varies depending on the system configuration. -
Page 24: Interfaces On The Rear Side
KISS 1U Short V3 - Rev. 1.0 4.2.1. Interfaces on the Rear Side Depending on the installed mainboard, the following external interfaces are available for peripherals. 4.2.1.1. External Interfaces KISS 1U Short V3 CFL Figure 13: External interfaces KISS 1U Short V3 CFL Mouse LAN2 Keyboard 2x USB 3.1 (Gen 2) -
Page 25: Power Supply Unit
Power cable and power connectors must always remain easily accessible. The KISS 1U Short V3 is only completely disconnected from the mains power supply when the power cable is disconnected, either from the mains power socket, or the system’s input power socket (Figure 12, pos. -
Page 26: Sides (Left And Right)
4.4. Sides (Left and Right) On the left and right sides of the KISS 1U Short V3, there are four M4 tapped screw holes (Figure 16, pos. 2). used for installation in a 19" industrial rack with slide rails (Figure 16, pos. 2). -
Page 27: Cover
3x knurled screws 3x front fixing brackets Insulation foil (Makrolon) The KISS 1U Short V3’s chassis is only properly closed if the cover is attached and all knurled screws (Figure 12, pos. 1) on the rear side fastened. www.kontron.com // 27... -
Page 28: System Configuration
KISS 1U Short V3 - Rev. 1.0 4.6. System Configuration 4.6.1. System Configuration with Mainboard and Expansion Cards Figure 18: Example of KISS 1U Short V3 configuration with mainboard and low-profile expansion card Handle bracket PCIe-slot for low-profile expansion card... -
Page 29: 5/ System Extension
RAID support is not available for the on-board M.2 memory module. 5.2. Expansion Card The KISS 1U Short V3 system can be expanded with a PCIe x16, low-profile expansion card using the expansion slot available on the rear side. When adding expansion cards consider the maximum power consumption supported by the KISS 1U Short V3’s PSU, see Chapter 11.7: Power Specification. -
Page 30: 6/ Thermal Considerations
6.1. Active Cooling The KISS 1U Short V3 is forced air-cooled using two internal system fans that force air to flow from the front to the back of the chassis. The processor and extension cards have integrated cooling solutions or are equipped with the corresponding cooling devices. -
Page 31: 7/ Assembly
To access internal components, open the cover. Energy hazards-240 VA present inside the chassis! Before removing the KISS 1U Short V3’s cover, ensure that: the system is switched off and disconnected from the mains power supply. Activities such as work inside the system, system expansion with expansion cards, or... - Page 32 To close and secure the cover, proceed in the reverse order (step 4 to step 2). The KISS 1U Short V3’s chassis is only properly closed if the cover is attached and all knurled screws (Figure 12, pos. 1) on the rear side fastened.
-
Page 33: Accessing Internal Components
Energy hazards-240 VA present inside the chassis! Before removing the KISS 1U Short V3’s cover, ensure that: the system is switched off and disconnected from the mains power supply. Activities such as work inside the system, system expansion with expansion cards, or... -
Page 34: Figure 23: Rear Side With Slide Bracket (Opened)
KISS 1U Short V3 - Rev. 1.0 Move the slide bracket to the right. The slot bracket is disengaged now and can be removed from the system. Figure 23: Rear side with slide bracket (opened) Insert/remove the expansion card into/out of the PCIe slot. -
Page 35: 8/ Installation
KISS 1U Short V3 - Rev. 1.0 8/ Installation Before installing or removing the KISS 1U Short V3 in a 19” industrial rack cabinet or desktop environment, read the general installation instructions in this chapter. Read and observe the information in Chapter 1/:General Safety Instruction for IT Equipment. -
Page 36: Removing The Handle Brackets
Bracket handle Front access panel side-plate The KISS 1U Short V3 is delivered with the handle brackets already assembled. 8.3. Removing the Front Access Panel and Front Access Panel Side-Plates The front access panel and the two front access panel side-plates are removable. -
Page 37: Installation As A Desktop
Store the front access panel for possible further use. 8.4. Installation as a Desktop Before installing the KISS 1U Short V3 in a desktop environment, install the rubber feet as described in Chapter 8.1: Attaching the Rubber Feet, to avoid scratching the installation surface. -
Page 38: Installation In A 19" Industrial Rack
8.5. Installation in a 19" Industrial Rack Before installing or removing the KISS 1U Short V3 into or from a 19" industrial rack, observe the instructions described in this chapter. To assemble for 19” rackmount installation, see Chapter 8.6: Installing Slide Rails (Option). -
Page 39: Installing Slide Rails (Option)
KISS 1U Short V3 - Rev. 1.0 8.6. Installing Slide Rails (Option) Kontron offers compatible Slide Rails and Rack Slide Rails Kit for the KISS 1U Short V3. For more information, see Table 2: Accessories and Spares parts. To support the KISS 1U Short V3’s weight two separate fixation methods must be used: ... -
Page 40: Figure 29: Kiss 1U Short V3 With Slide Rail In Pushed-In Position
KISS 1U Short V3 - Rev. 1.0 Figure 29: KISS 1U Short V3 with slide rail in pushed-in position Legend for Figure 27, Figure 28 and Figure 29. Side view of the KISS 1U Short V3 Locking/unlocking lever 4x M4 rounded head screws (per each side) -
Page 41: 9/ Starting Up
Power cable and power connectors must always remain easily accessible. The KISS 1U Short V3 is only completely disconnected from the mains power supply when the power cable is disconnected, either from the mains power socket, or the system’s input power socket (Figure 12, pos. -
Page 42: Operating System And Hardware Component Drivers
9.2. Operating System and Hardware Component Drivers The standard KISS 1U Short V3 is fully operational when switched on for the first time with pre-installed OS (Windows 10 IOT 64-bit or Linux Ubuntu 64-bit) and drivers. Drivers are available from Kontron’s EMD customer section. -
Page 43: 10/ Maintenance And Prevention
If heavily soiled the filter pad can cause excessive heating of the device. Kontron recommends cleaning the filter pad as often as necessary (when soiled). The filter pad can be changed during operation. -
Page 44: Replacing The System Fans
The operation of the KISS 1U Short V3 system is permitted only with a functional system fan! Only replace a defective fan assembly with Kontron’s original fan assembly, see Table 2: Accessories and Spares parts. -
Page 45: Replacing The Lithium Battery
Place a new lithium battery in the battery holder. Pay attention to the polarity of the battery. Replaced the lithium battery only with the same type pf battery, or a type of battery recommended by Kontron. Reinstall the removed expansion cards and reattach the connecting cables. -
Page 46: 11/ Technical Data
KISS 1U Short V3 - Rev. 1.0 11/ Technical Data 11.1. Block Diagrams 11.1.1. Block Diagram KISS 1U Short V3 CFL Figure 37: Block diagram KISS 1U Short V3 CFL www.kontron.com // 46... -
Page 47: Technical Specification
KISS 1U Short V3 - Rev. 1.0 11.2. Technical Specification The main technical specifications of the KISS 1U Short V3 chassis variants and processor variants are listed within this chapter. KISS 1U Short V3 CFL Board Mainboard D3641-S1 (micro-ATX) Processor Type Intel®... -
Page 48: Electrical Specification
KISS 1U Short V3 - Rev. 1.0 11.3. Electrical Specification The electrical specification for your KISS 1U Short V3 can be found on the type label. For more information, see Chapter 3.3: Type Label. 11.4. Mechanical Specification Dimension KISS 1U Short V3 KISS 1U Short V3 (with front panel &... -
Page 49: Ce Directives Standards And Approvals
EN6100-6-3: Emission standard for residential, commercial and light- industrial environments 11.7. Power Specification The KISS 1U Short V3 is equipped with a 400 W power supply. Internally, the 12V, 5V and 3.3V voltages are distributed using standard certified cabling. 11.7.1. PSU Specification... -
Page 50: 12/ Standard Interfaces- Pin Assignments
KISS 1U Short V3 - Rev. 1.0 Standard Interfaces- Pin Assignments 12.1. Keyboard Connector Pin Assignment Signal Name Keyboard Connector Data Clock Keyboard_On fuse protected low asserted pulse 12.2. PS/2 Mouse Connector Pin Assignment Signal Name PS/2 Connector Data Clock... -
Page 51: Display Port Pin Assignment
KISS 1U Short V3 - Rev. 1.0 12.4. Display Port Pin Assignment Signal Name Signal Name DP (V1.2) Connector TX0+ TX3- TX0- DVI dongle detect/ GND TX1+ GND / CEC for HDMI AUX+ TX1- TX2+ AUX- Hot plug detect TX2- TX3+ +3.3 V... -
Page 52: Lan Connector Pin Assignment
KISS 1U Short V3 - Rev. 1.0 12.7. LAN Connector Pin Assignment Signal Name (10/100/1000) Signal Name (10/100) RJ45 (female) Connector MX1+ MX1- MX2+ MX3+ MX3- MX2- MX4+ MX4- Left LED: Activity / Link Right LED: Activity 10/100/1000 NO LAN connectivity... -
Page 53: 13/ Technical Support
RMA number. The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the equipment is repaired or replaced within the stipulated warranty period. - Page 54 86156 Augsburg Germany Phone: +49 (0) 821 4086-0Fax: +49 (0) 821 4086 111Email: service@kontron.com After Kontron Europe GmbH receives the product, a confirmation of the order is sent via email to the address named on the RMA sheet. www.kontron.com // 54...
-
Page 55: 14/ Storage And Transportation
The storage facility must meet the products environmental storage requirements as stated within this user guide. Kontron recommends keeping the original packaging material for future storage or warranty shipments. -
Page 56: 15/ Warranty
15.1. Limitation/Exemption from Warranty Obligation In general, Kontron shall not be required to honor the warranty, even during the warranty period, and shall be exempted from the statutory accident liability obligations in the event of damage caused to the product due to failure to observe the following: ... -
Page 57: 16/ Disposal
Many of the components used are capable of being recycled. Kontron follows the Waste Electrical and Electronic Equipment (WEEE) Directive that aims to reduce waste arising from Electrical and Electronic waste and therefore encourages customers to return Kontron products for proper disposal. -
Page 58: Appendix A: List Of Acronyms
KISS 1U Short V3 - Rev. 1.0 Appendix A: List of Acronyms Table 7: List of Acronyms Advanced Technology eXtended Operating System BIOS Basic Input Output System Plastic Circuit Board Command-Line Interface Peripheral Component Interconnect Communication port PCIe PCI-Express Central Processing Unit... -
Page 59: About Kontron
KISS 1U Short V3 – Rev. 1.0 About Kontron Kontron is a global leader in embedded computing technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
