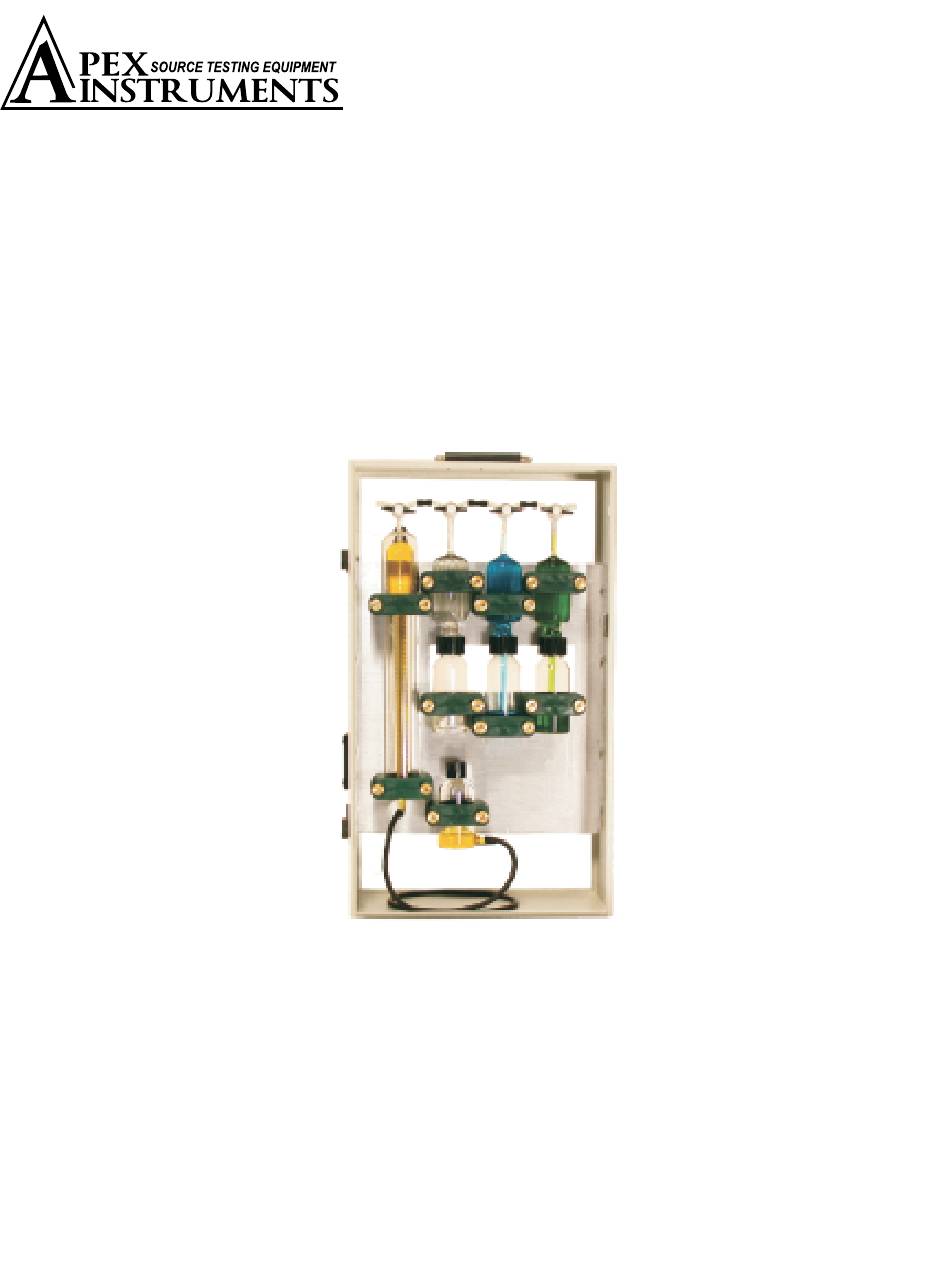

- Page 1 APEX INSTRUMENTS, INC. Method 3 Gas Analysis ORSAT Analyzer Manual VSC-33 Operator’s Manual...
- Page 2 VSC-33 204 Technology Park Lane Fuquay-Varina, NC 27526 www.apexinst.com (919) 557-7300 (800) 882-3214 For Support or Service Contact: Technical Services Group support@apexinst.com (877) 726-3919 VSC-33 Operator’s Manual Revision Date: 12.27.2018 APEX INSTRUMENTS, INC.
- Page 3 Prepayment Sales Apex Instruments Inc. will work to ship prepay orders a quickly as possible after receipt of payment. Due to scheduling and production demands shipment from Apex Instruments may be delayed up to but no longer than 10 business days after receipt of payment.
- Page 4 Product Limited Warranty Policy Apex Instruments, Inc. warrants products to be free from defects in materials and workmanship for a period of one year from date of delivery. During the warranty period, we will repair or replace, at our option, any component that fails due to a defect in materials or workmanship under normal use excluding installation.
- Page 5 Squeeze Bulb Pump The heavy wall rubber Squeeze Bulb Pump with stainless steel valves and connections can be used for gas sampling, pressure source for calibrations and leak tests, and for conditioning probes and sample lines. A-350 APEX INSTRUMENTS, INC.
-
Page 6: Table Of Contents
TABLE 1 LIST OF PARTS, VSC-33.................6 TABLE 2 VSC-33 VALVE POSITIONS................12 TABLE 3 F FACTORS FOR FOSSIL FUELS..............18 FIGURES FIGURE 1 VSC-33 ORSAT ANALYZER WITH TEDLAR BAG CONTAINER....4 FIGURE 2 VSC-33 PARTS DIAGRAM................5 FIGURE 3 VSC-33 GLASSWARE SET-UP..............8 FIGURE 4 MARKING PIPETTE CAPILLARIES............10 FIGURE 5 TOP VIEW OF ORSAT WITH TEDLAR BAG ATTACHED TO PIPETTE BOTTLES............10... -
Page 7: Introduction

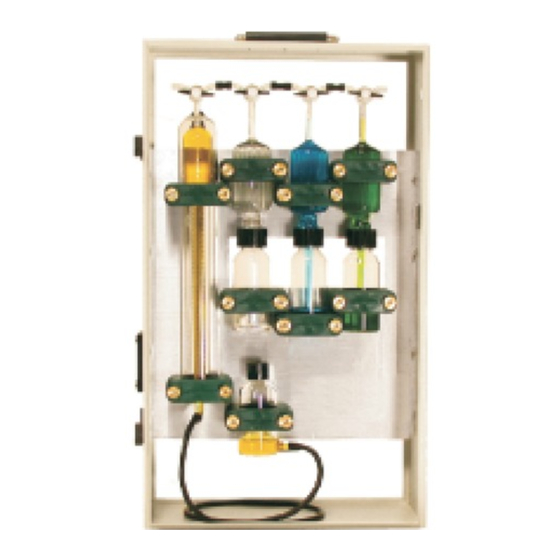

) consists of a graduated glass burette and Figure 1 The Apex Instruments VSC-33 Orsat Analyzer (see three absorption pipettes. The burette and the pipettes are each fitted with three-way gas stopcocks, which enable the operator to load the analyzer with a gas sample, and then to direct the sample to the appropriate pipettes for analysis. -
Page 8: Figure 2 Vsc-33 Parts Diagram
VSC-33 GA-GL-18C GA-15C Figure 2 VSC-33 Parts Diagram APEX INSTRUMENTS, INC. -
Page 9: Unpacking And Reagent Preparation
Orsat has been completely assembled. Check each item against the packing list below. If any item is damaged or missing, notify your supplier or Apex Instruments immediately. Table 1 List of Parts, VSC-33... - Page 10 VSC-33 Reagents Absorbing reagents for the VSC-33 are not shipped with the glassware assemblies. These chemicals are either shipped directly from the vendor, or reagents may be mixed according to the recipes presented below. It is recommended persons preparing the reagents possess basic laboratory skills.
-
Page 11: Assembly & Leak Check Procedures
A schematic diagram of a completely assembled VSC-33 analyzer is presented in Figure 3. Specific pipette filling instructions, given below, are designed to facilitate the absorption of carbon dioxide, oxygen, and carbon monoxide in sequence.. - Page 12 8. Connect the burette and the absorption pipettes together using the 1 1/2 inch pieces of the supplied rubber tubing. Check to ensure that the absorption pipettes are securely attached to the support clamps and that the stopcock bodies are free of debris to form leak-free seals. APEX INSTRUMENTS, INC.
-
Page 13: Figure 4 Marking Pipette Capillaries
Using 2 inch pieces of rubber tubing, attach the hose barbs on the reagent bottles to the three-section Tedlar bag hose barbs. (Figure 5) Figure 5 Top View of Orsat with Tedlar Bag attached to Pipette Bottles APEX INSTRUMENTS, INC. - Page 14 5. After the leak check, return the confining solution to its proper level by opening the burette valve to ambient, and raise the aspirator bottle until the level of the confining solution reaches the capillary tubing. Close the burette valve. APEX INSTRUMENTS, INC.
-
Page 15: Table 2 Vsc-33 Valve Positions
VSC-33 Figure 6 VSC-33 Valve Position Schematic Table 2 VSC-33 Valve Positions (refer to Figure 6) Analytical Step Burette Valve Pipette Pipette CO Pipette Position Valve Position Valve Position Valve Position Initial leak check Connect bag to analyzer Purge analyzer with sample... -
Page 16: Operation
Accuracy and Speed In analyzing gases, the operator should strive for accuracy and speed. To ensure accuracy the operator must determine whether or not the components being tested for are present in the gas APEX INSTRUMENTS, INC. - Page 17 2) loading the analyzer with a 100-ml gas sample and zeroing the burette, and 3) passing the gas sample through the absorption pipettes recording the reduction in sample volume. To analyze sa mples using the VSC-33 Orsat apparatus, proceed as follows: I.
-
Page 18: Results And Calculations
flow rate of an effluent gas. Stack gas molecular weight is calculated according to the following equation: 0 440 0 320 0 280 APEX INSTRUMENTS, INC. -
Page 19: Apex Instruments, Inc
) concentrations exists. This relationship can be used to validate the results of the Orsat analysis immediately after the analysis is completed based upon the type of fuel combusted. Since air is used for the combustion process, the law of conservation of mass demands: F CO 20 9 APEX INSTRUMENTS, INC. -
Page 20: Apex Instruments, Inc
This process simply involves the comparison of the F values obtained from the Orsat analysis with F values calculated from an ultimate analysis of the fuels being burned, or by comparison with published F values. APEX INSTRUMENTS, INC. -
Page 21: Table 3 F Factors For Fossil Fuels
18.34 Coal, Lignite 1.016 - 1.130 19.42 Oil, residual 1.210 - 1.370 15.74 Oil, distillate 1.260 - 1.413 15.52 Gas, natural 1.600 - 1.836 11.95 Gas, propane 1.434 - 1.586 13.85 Gas, butane 1.405 - 1.553 14.13 APEX INSTRUMENTS, INC.
