7.Battery cover installation method

2
1

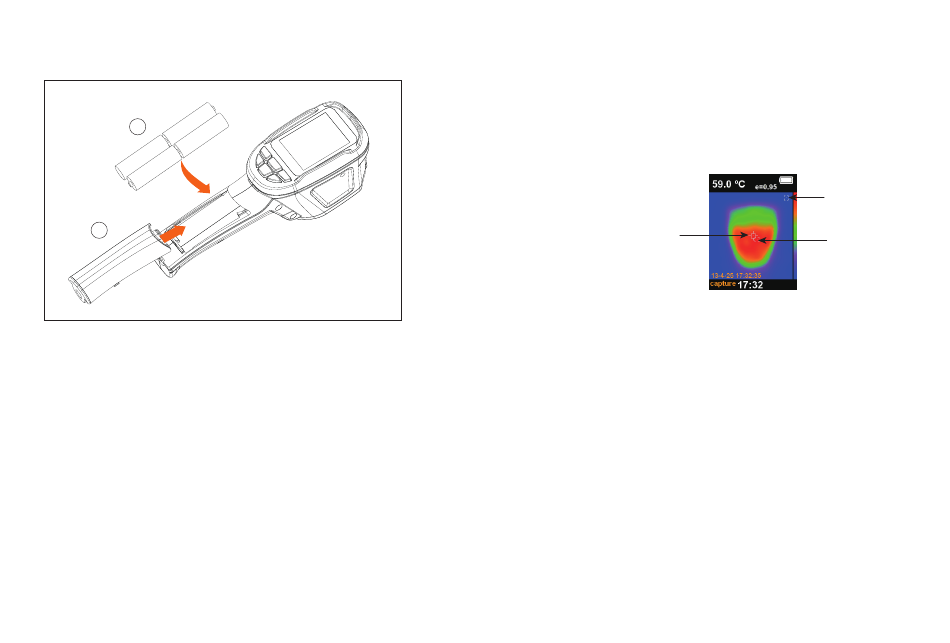

Figure 4 – Replace Battery
1. Push down and away from the device to
remove battery cover.
2. Install 4 AA batteries as shown in the battery
compartment.
3. Slide the battery cover to the accurate position.
6

8. Measurement

The measured temperature of the center of pixel is displayed in the
upper left corner of display screen. The setting of radiation
coefficient is also displayed in the upper right corner of display
screen. Move the product until hot spot or cold spot coincides with
the center of pixel. Direct the product to the object whose
temperature is higher or lower than the surrounding temperature to
get the optimum measured results.
Center spot

9. Focal distance

This product is the fixed-focal thermal Imaging Camera. The
applicable distance is 50cm (20min).
Image storage

10. Elimination of noise

Start up the instrument and then put the head of sensor close to the
worktop. Press "up" key for 5 seconds to eliminate the noise.

11.LED light

Press "image capturing" key for 5 seconds to turn on LED light to
cooperate with the working of visible camera.
Center spot
Hot spot
