Lumantek VENTUS F1 User's Operation Manual

Stand alone type modulator

Advertisement

Quick Links

VENTUS F1
[Stand Alone Type Modulator]
>>First Edition
USER OpERATION MANUAL
DAB / DAB+ DTMB
AWGN
LUMANTEK Co., Ltd http://www.lumantek.com
Head Office : # 1208, Woolim Lion's Valley II, 680 Gasan-Dong, Geuncheon-Gu, SEOUL, KOREA (150-803)
TEL : +82-2-2027-2400
/
FAX: +82-2-2027-2409
/
e-Mail : inquire@lumantek.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VENTUS F1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lumantek VENTUS F1

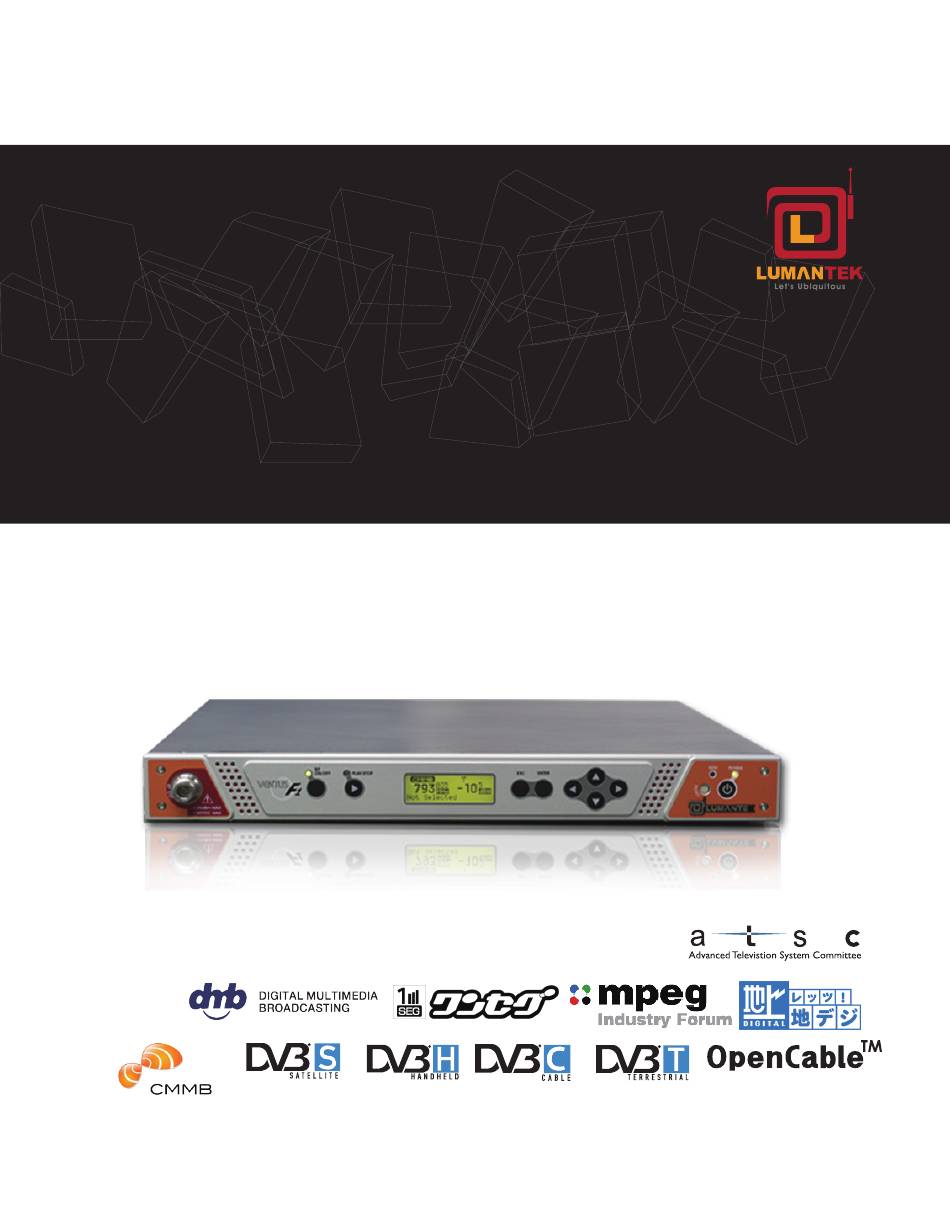

  • Page 1 [Stand Alone Type Modulator] >>First Edition USER OpERATION MANUAL DAB / DAB+ DTMB AWGN LUMANTEK Co., Ltd http://www.lumantek.com Head Office : # 1208, Woolim Lion’s Valley II, 680 Gasan-Dong, Geuncheon-Gu, SEOUL, KOREA (150-803) TEL : +82-2-2027-2400 FAX: +82-2-2027-2409 e-Mail : inquire@lumantek.com...
  • Page 2 Amico ™, Lumantek Logo, Mega Cruiser ™, ORIX ™, X-Cruiser ™, DTA-Plus ™, Media Blaster ™, and VENTUS F1 are all trademarks of LUMANTEK Co., Ltd. All other trademarks or service marks are the property of their respective holders and are hereby acknowledged.
  • Page 3 Picture 1. VENTUS Supporting Spec 1.2 VENTUS Development Concept VENTUS F1 solution can be used to test all DTV SD formats in the world. It is a All-in-One type measurement solution. As it is a portable product, it has maximized user convenience.
  • Page 4: Main Feature

    -> Basic Hard Disk Built in (SSD Type 32 GB) • External USB Disk and Memory can be used • Through the monitor port, the same UI (T-pUMp) is available • VENTUS F1 support DTV and Mobile TV Standard Support...
  • Page 5 1.4 VENTUS Basic Organization VENTUS device is possible to transmit DTV Skill Standard by RF through USB Interface between VENTUS and pC or Notebook. Picture 4. VENTUS F1 Basic Organization...
  • Page 6: Product Description

    2. Product descrIPtIon 2-1. Front View Picture 6 VENTUS F1 Front and Rear Dimension 2-2. Rear View Picture 7 VENTUS F1 2-2. FeAture descrIPtIon 2-2-1. FORNT VIEW • RF OUTpUT port: RF Output port • RF On/OFF button • play/Stop button •...
  • Page 7  VGA port : Used to connect an external monitor  USB port : Used to connect an external monitor  Ethernet port : When using Network connection (FTp) • ASI-OUT, ASI-IN Built in 2-3. Ventus F1 PAckAge contents VENTUS F1 Accessories AC power Cord USB Cable: A-B type...
  • Page 8: System Operating

    3. systeM oPerAtIng 3-1. VENTUS Hardware Install Embedded pC is built in VENTUS F1. It is not necessory to install software. Picture 8 VENTUS F1 3-2. VENTUS F1 Operation Procedure VENTUS F1 products with the following order: Detail setting are available on LCD window.
  • Page 9 Ventus FeAture Picture 9 VENTUS F1 power Button : VENTUS F1 power on -> system Booting Reset Button : Forced the power off Enter Button : VENTUS F1 Configuration Setting ESC Button pLAY / STOp Button : When completing setting, use pLAY/ STOp Button...
  • Page 10 selectIng cW Mode 1. To use CW mode, press #5 Modulator on Menu. 2. When you select a menu, CW Modulator please Wait for the notification to display text set- tings complete text disappears 3. On the Settings menu, select the parameter button, you will select the following menu. 4.
  • Page 11 selectIng rF outPut : dVB-t 1. To use DVB-T mode, the LCD Main Menu, select #5 Modulator. 2. DVB-T option is separated in (2,8 K) menu, and (4K) menu. 3. After setting DVB- T/H in Modulator selection, Select the Settings menu #6 to click param- eter.
  • Page 12 4. When parameter settings has been completed, Click # 4 from Menu to select transmitting stream. - It is available to open Specifies the stream from the built-in SSD hard disk or external USB disk. Select your stream by using the ENTER button. 5.
  • Page 13 -> Set desired transmission power level by using the cursor keys - Use Up/Down Cursor Key to Change the Level, and use Left/ Right Cursor Key to Change the unit. 7. When completing setting, the DVB-T is ready for transmission. press the ESC button to exit to initial menu.
  • Page 14 selectIng rF outPut : dVB-c 1. To use DVB-C mode, the LCD Main Menu, select #5 Modulator. - DVB-C Modulator of the following options are selected by the ENTER button. When is not Multi option, it will only show the available option.
  • Page 15 4. Once you select a stream by using ESC button to go to the previous menu, the frequency and level setting. First, the frequency settings are as follows. After clicking the #1 from menu, the Frequency menu will display. Set the desired frequency using the cursor keys.
  • Page 16 6. When completing setting, the DVB-C is ready for transmission. press the ESC button to exit to initial menu. Use pLAY button to play. If you need to save the settings, go to the Settings menu. to click the project menu. Then select # 9 from the Store menu.
  • Page 17 selectIng rF outPut : Atsc 1. To use ATSC mode, the LCD Main Menu, select #5 Modulator - Sselect ATSC by clicking ENTER button. When is not Multi option, it will only show the available option. 2. After setting DVB- C in Modulator selection, Select the Settings menu #6 to click parameter. - INpUT Type : SSD ( Embedded pC Harddisk build-in) - Once set up, the ESC button will take out to the previous menu.
  • Page 18 4. Once you select a stream by using ESC button to go to the previous menu, the frequency and level setting. First, the frequency settings are as follows. After clicking the #1 from menu, the Frequency menu will display. Set the desired frequency using the cursor keys.
  • Page 19 If you need to save the settings, go to the Settings menu. to click the project menu. Then select # 9 from the Store menu. Choose from slot -1 to slot 10 to save. When ones need to open saved file, click [Recall] menu and select slot 1 ~ slot 10.
  • Page 20 selectIng rF outPut : oPen-cABle 1. To use OpenCable mode, the LCD Main Menu, select #5 Modulator - Sselect Open-Cable by clicking ENTER button. When is not Multi option, it will only show the available option. 2. After setting OpenCable in Modulator selection, Select the Settings menu #6 to click param- eter.
  • Page 21 3. When parameter settings has been completed, Click # 4 from Menu to select transmitting stream. It is available to open Specifies the stream from the built-in SSD hard disk or external USB disk. Select your stream by using the ENTER button. 4.
  • Page 22 6. When completing setting, the ATSC is ready for transmission. press the ESC button to exit to initial menu. Use pLAY button to play. If you need to save the settings, go to the Settings menu. to click the project menu. Then select # 9 from the Store menu.
  • Page 23 selectIng rF outPut : IsdB-t/tb 1. To use ISDB-T/Tb mode, the LCD Main Menu, select #5 Modulator - Sselect ISDB-T/Tb by clicking ENTER button. When is not Multi option, it will only show the available option. 2. After setting ISDB-T/Tb in Modulator selection, Select the Settings menu #6 to click param- eter.
  • Page 24 It is available to open Specifies the stream from the built-in SSD hard disk or external USB disk. Select your stream by using the ENTER button. 4. Once you select a stream by using ESC button to go to the previous menu, the frequency and level setting.
  • Page 25 6. When completing setting, the ISDB-T/Tb is ready for transmission. press the ESC button to exit to initial menu. Use pLAY button to play. If you need to save the settings, go to the Settings menu. to click the project menu. Then select # 9 from the Store menu.
  • Page 26 selectIng rF outPut : t-dMB / dAB + 1. To use T-DMB / DAB+ mode, the LCD Main Menu, select #5 Modulator - Sselect T-DMB / DAB+ by clicking ENTER button. When is not Multi option, it will only show the available option.
  • Page 27 4. Once you select a stream by using ESC button to go to the previous menu, the frequency and level setting. First, the frequency settings are as follows. After clicking the #1 from menu, the Frequency menu will display. Set the desired frequency using the cursor keys.
  • Page 28 If you need to save the settings, go to the Settings menu. to click the project menu. Then select # 9 from the Store menu. Choose from slot -1 to slot 10 to save. When ones need to open saved file, click [Recall] menu and select slot 1 ~ slot 10.
  • Page 29 selectIng rF outPut : cMMB 1. To use CMMB mode, the LCD Main Menu, select #5 Modulator - Sselect CMMB by clicking ENTER button. When is not Multi option, it will only show the available option. 2. After setting CMMB in Modulator selection, Select the Settings menu #6 to click parameter. - To set parameter value, please use cursor key to change details parameters value.
  • Page 30 3. When parameter settings has been completed, Click # 4 from Menu to select transmitting stream. It is available to open Specifies the stream from the built-in SSD hard disk or external USB disk. Select your stream by using the ENTER button. 4.
  • Page 31 6. When completing setting, the CMMB is ready for transmission. press the ESC button to exit to initial menu. Use pLAY button to play. If you need to save the settings, go to the Settings menu. to click the project menu. Then select # 9 from the Store menu.
  • Page 32 selectIng rF outPut : dtMB 1. To use DTMB mode, the LCD Main Menu, select #5 Modulator - Sselect DTMB by clicking ENTER button. When is not Multi option, it will only show the available option. 2. After setting DTMB in Modulator selection, Select the Settings menu #6 to click parameter. - To set parameter value, please use cursor key to change details parameters value.
  • Page 33 4. Once you select a stream by using ESC button to go to the previous menu, the frequency and level setting. First, the frequency settings are as follows. After clicking the #1 from menu, the Frequency menu will display. Set the desired frequency using the cursor keys.
  • Page 34 If you need to save the settings, go to the Settings menu. to click the project menu. Then select # 9 from the Store menu. Choose from slot -1 to slot 10 to save. When ones need to open saved file, click [Recall] menu and select slot 1 ~ slot 10.
  • Page 35 4. APPendIx Ventus F1 User Menu Summary • 1. Ventus F1 operating procedure...
  • Page 36 • 2. Ventus F1 connecting to external Disk If want to connect an external disk to VENTUS F1, you have to set same order as below. Because it will only operate to this form. Directory Form USB Disk Driver Name :\\ Stream...
  • Page 37 # 1208, Woolim Lion’s Valley II, 680 Gasan-Dong Geuncheon-Gu Seoul, KOREA (150-803) Tel. +82-2-2027-2404 Fax. +82-2-2027-2409 e-Mail. inquire@lumantek.com...
