- Page 1 8-VSB Modulator AM IGO ™ User Operation Manual >> Fourth Edition LUMANTEK Co., Ltd http://www.lumantek.com Head Office : # 1208, Woolim Lion’s Valley II, Gasan-Dong Geuncheon-Gu SEOUL, KOREA (150-803) TEL: 02-2027-2400 FAX:02-2027-2409 Email : inquire@lumantek.com...
- Page 2 Portions of this software are © 1996-2006 LUMANTEK Ltd. All intellectual property rights in such portions of the Software and documentation are owned by LUMANTEK and are protected by United States copyright laws, other applicable copyright laws and international treaty provisions.
-
Page 3: Table Of Contents
1. AMIGO™ System Overview• • • • • • • • • • • • • • • • • • • •... -
Page 4: Amigo™ System Overview

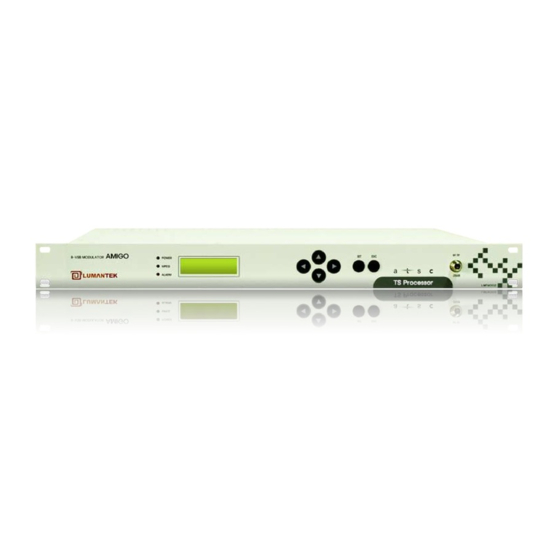

User Manual 1. AMIGO™ System Overview AMIGO™ is 8-VSB Modulator which has been applied to ATSC standard. Its Input Interface supports SMPTE-310M (Society of Motion Picture and Television Engineers) and DVB-ASI Input. AMIGO™ receives MPEG2 TS (Transport Stream) through DVB ASI Input or SMPTE- 310M Input Interface. - Page 5 • Voltage : 90-260 V • Power Consumption : 60W Max Monitoring Front • 4 line - 16 character LCD display • 4 cursor keys + 2 function keys Remote Control • RS 232 - 9 pin DIN AMIGO™ 8-VSB Modulator >> 5...
-
Page 6: Product Description
: Confirm Setting s ESC BUTTON : Exit from Menu i RF TP(-20dB) : RF Output Port 1-3 Rear Panel Bellowing picture shows the rear panel of 8-VSB MODULATOR. AMIGO™ 8-VSB Modulator >> 6... -
Page 7: Side Panel
: Power Input and Switch q POWER SW : Power(on/off) 1-4 Side Panel Radiant heat ventilating opening 4. Product Contents AMIGO™ RS 232 CABLE 50Ω Cable (BNC) : IF LOOP <- 75Ω Cable (F-type): IF Loop AMIGO™ 8-VSB Modulator >> 7... -
Page 8: Precautions
Objects have fallen or liquid has spilled into the product. c) The product has been exposed to rain. d) The product is operating abnormally or performance has degraded seriously. e) The product has been dropped or the enclosure damaged. AMIGO™ 8-VSB Modulator >> 8... -
Page 9: Amigo™ Operation
User Manual 6. AMIGO™ Operation Basic Button Function LCD Display Window • Set Menu and Function • Basic Information is shown Move Curser and change value • Move Setting Value (number) Curser to left • Move Setting Value (number) Curser to right •... - Page 10 Choose ‘4.Input Formant’ from starting menu, then press [SET] Buttons. Press Setting Buttons ( ) to change input port. You can change Number by Left / Right Buttons. 4. Spec Inv. Invert. (Inv/Nor) < Spec Inv. : Inv / Nor > AMIGO™ 8-VSB Modulator >> 10...
- Page 11 3. User : Value entered by the user to perform a linear displacement compensation. The initial value is Default. 9. Non - lin 2 Non-linearity inside AMIGO. Choose ‘number 7' from starting menu, then press [SET] Buttons. Press Setting Buttons ( ) to change Linear displacement compensation.
-
Page 12: Hyper Terminal (Rs 232C Port)
Control Panel System Device Manager Ports (COM & LPT) After check ‘Ports (COM & LPT)’, run RS-232C Ports Access program (Hyper Terminal, Secure CRT...). 1. Start Program Accessories Communications Hyper Terminal Input ‘Amigo’ in Name, then click OK. AMIGO™ 8-VSB Modulator >> 12... - Page 13 Set ch 4 > CC ? [Enter] : Confirm changed value Cable ch: 4 Example : > CT 5 [enter] Set ch 5 > CT ? [Enter] : Confirm changed value Terrestrial ch: 5 AMIGO™ 8-VSB Modulator >> 13...
- Page 14 (75 Ω Internal is non -fixiable) Instruction : REF INTERNAL/EXTERNAL [enter] Example : > REF INTERNAL [enter] set reference Internal 10Mhz set > REF EXTERNAL [enter] set reference External10Mhz set > REF ? AMIGO™ 8-VSB Modulator >> 14...
- Page 15 <Group Delaye> : Before Using the measured value, enter PD.exe as follows For the Port Click Select and Send, to transfer the AMIGO If you choose Fine-Tune, it will apply the previous values. If you did not choose Fine-Tune, it will previous applies regardless.
- Page 16 User Manual AMIGO™ 8-VSB Modulator >> 16...
- Page 17 User Manual <Amplitude> : After <Group Delaye> : After AMIGO™ 8-VSB Modulator >> 17...
- Page 18 User Manual If you are Non-Linear type, select the port. Click A Block Send or B Block Send to transfer to the AMIGO. AMIGO™ 8-VSB Modulator >> 18...
- Page 19 LMT is not responsible or liable for any such statements. Mailing Address: LUMANTEK Unit 1208, Woolim Lion’s Valley II, 680 Gasan-Dong, Gumcheon Gu, Seoul Korea Copyright © 2006, LUMANTEK Incorporated...
- Page 20 8-VSB Modulator AM I GO™ User Operation Manual LUMANTEK Co., Ltd http://www.lumantek.com Head Office : # 1208, Woolim Lion’s Valley II, Gasan-Dong, Geuncheon-Gu, SEOUL, KOREA (150-803) TEL : +82-2-2027-2400 FAX: +82-2-2027-2409 e-Mail : inquire@lumantek.com...
