Software Bisque Pyramid Portable Pier User Manual page 7

Figure 2, the arm is in the middle position. When assembling the arms, make sure to "stack"
them in the same order as they are mounted. The arm mounted in the top pin must be placed
nearest the center dish, followed by the middle arm and then the bottom arm. If the arms are
placed in a different order, the center of the arms will not be properly aligned, and the legs will
not expand or collapse properly.
Tripods shipped after July 2013 are assembled as follows:

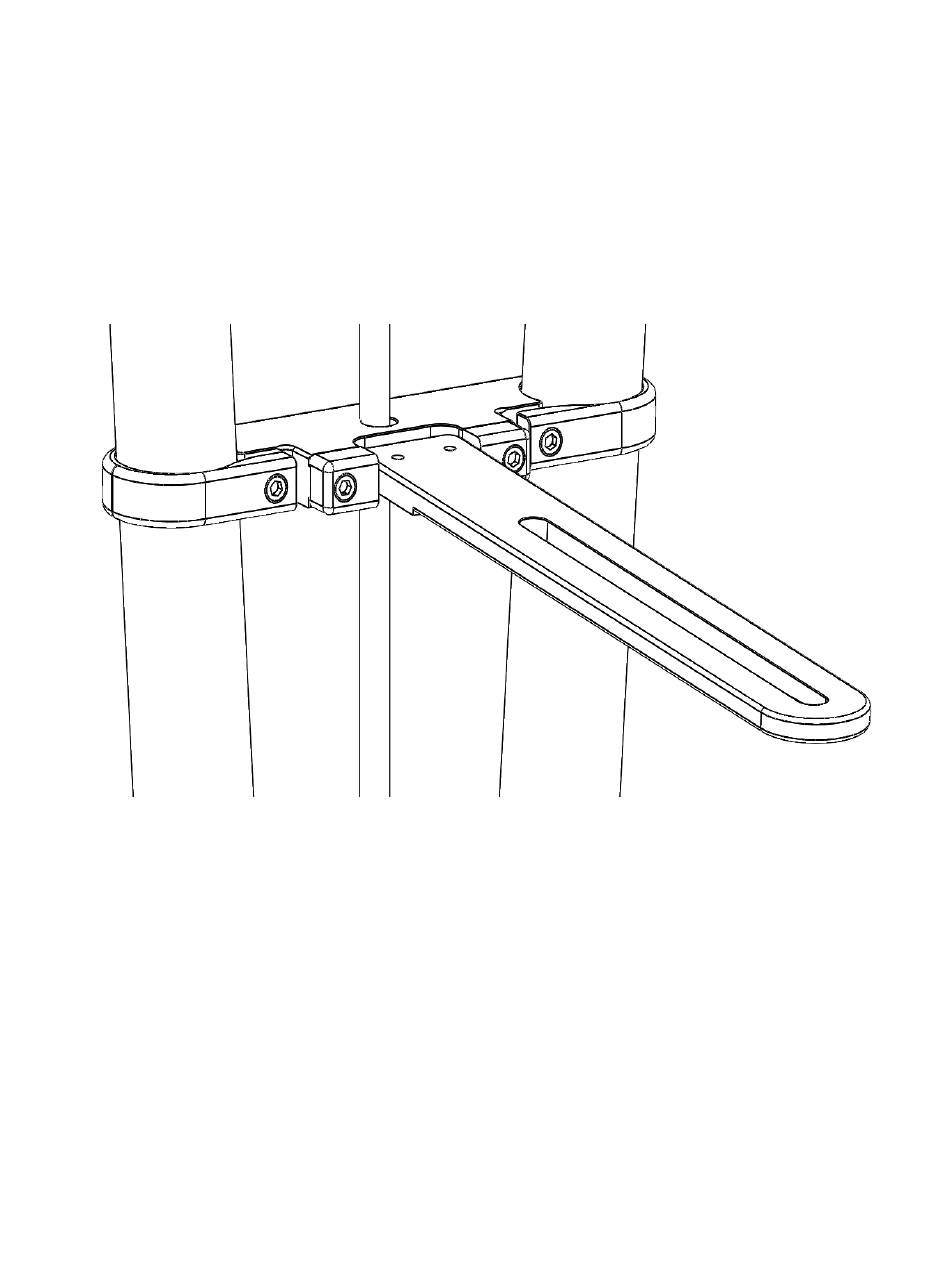

Figure 3: Tripod after July 2013 arm assembly.
Page 7 of 19
