Pyramid Pier Parts
Pier Assembly
The tripod arms that hold the center dish in place are disassembled to prevent damage during
shipping. There are currently two versions of the tripod arm assemblies: tripods shipped before
July 2013 and tripods shipped on or after July 2013. Both versions require a one-time arm
assembly, which is critical for normal tripod operation and use.
To assemble the tripod arms, you need:
• One center dish
• Five (5) Delrin washers for tripods shipped before July 2013 or four (4) Delrin washers
on tripods shipped after July 2013
• One (1) 3/8–24 x 2½-inch bolt
• One (1) 3/8–24-inch acorn nut
• One lower clamp nut

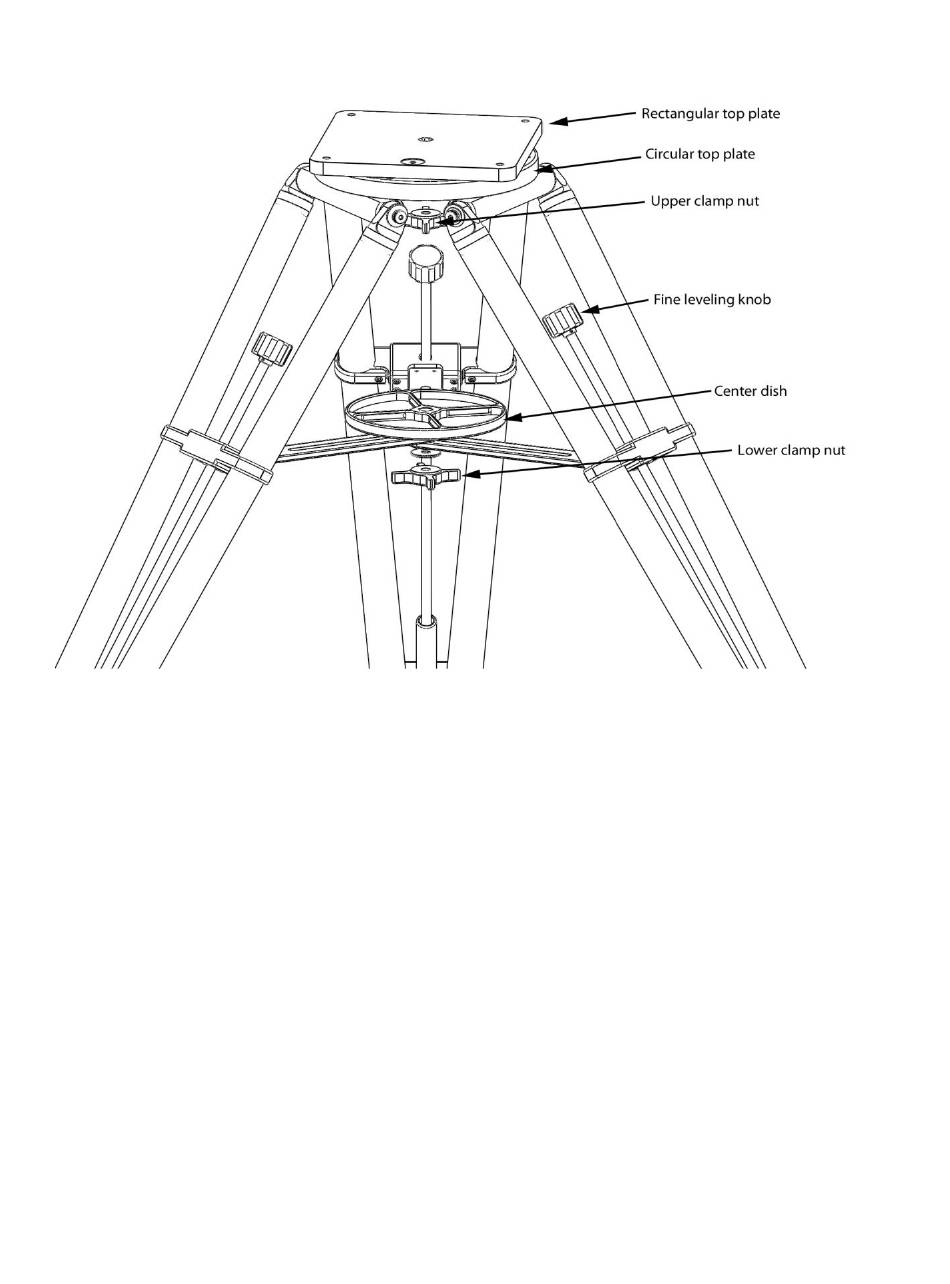

Figure 1: Pyramid Portable Pier components.
