wrench to loosen the coarse adjust clamp screw and make leveling adjustments. Once
loosened, position the coarse adjuster to get close to level, then tighten coarse adjust clamp
screw. Notice the coarse adjuster has a specially machined "rough" surface to achieve
maximum friction when clamped.
Fine Leveling
The fine leveling is accomplished using the three fine-leveling knobs (
Figure 1). The placement of these knobs allows you adjust level while simultaneously watching
the level bubble located on the top plate. Once the bubble is located inside the black ring,
pushing down on the top plate with all your weight or sit on it to get the feet firmly seated on
the ground, then check level again.
Tripod Feet

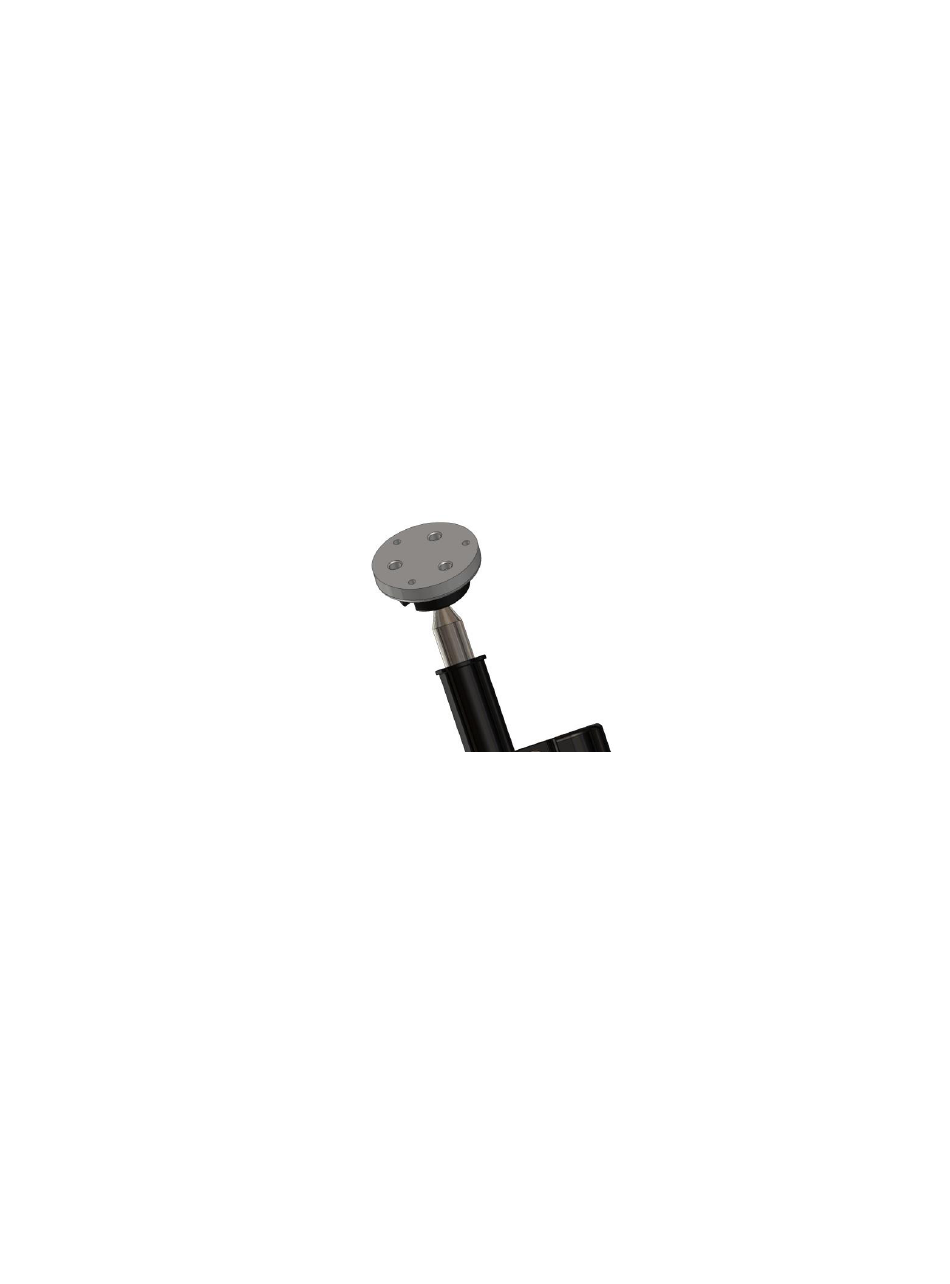

Figure 12: Tapped holes in pier foot*.
There are three tapped holes in the bottom of each tripod foot that accept an 8-32 socket head
cap screw. These can be added to provide some grip or traction on compliant surfaces, such as
grass.
* On mounts shipped after July 2017, he diameter of the circular tripod foot was increased for
added traction and stability.
