Contains FCC ID:OU9AW2540-LS
GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD
Zone A, 5/F., Investment Building, No. 12, Huizhan East Rd., Torch Development
District, Zhongshan, Guangdong, 528437, China
TEL:86-760-88282982
www.transtek.cn

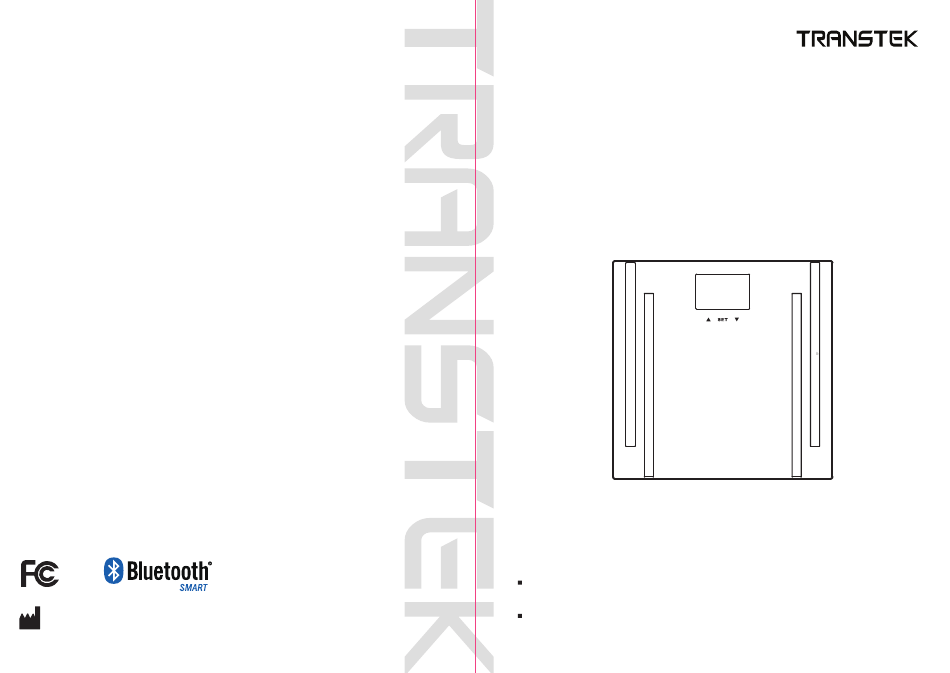

User Manual
Body Fat Analyzer
Thank you very much for selecting the Transtek Body Fat Analyzer
GBF-1319-B.
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
version:1.0
GBF-1319-B
Advertisement
Table of Contents
Related Manuals for TRANSTEK GBF-1319-B
Summary of Contents for TRANSTEK GBF-1319-B
- Page 1 User Manual Body Fat Analyzer GBF-1319-B Thank you very much for selecting the Transtek Body Fat Analyzer Contains FCC ID:OU9AW2540-LS GBF-1319-B. GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD Please do read the user manual carefully and thoroughly so as to ensure Zone A, 5/F., Investment Building, No.
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety Information Safety and Usage Information ........................................Your Scale and Its Environment ...................... Efficient Use of Your Scale Overview ......................... Device Components ..........................LCD Display Initial Start-Up General Instructions ..............................................Insert the Batteries ...................... -
Page 3: Safety Information
Where in reach of the infants or children hazards. Warning that the GBF-1319-B should not be used adjacent to or stacked with other equipment. Manufacturer will make available on request circuit diagrams, component parts list,etc. WARNING:No modifications of this equipment is allowed. -
Page 4: Efficient Use Of Your Scale
Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning. Always start measurement in the same time slot and on the same scale located on the same flat, hard surface. Battery Compartment UNIT Button List 1. Body Fat Analyzer GBF-1319-B 2. 3xAAA Batteries (1.5V each) 3. User Manual... -
Page 5: Lcd Display
LCD Display General Instructions Transtek Body Fat Analyzer GBF-1319-B applies BIA (Bio-impedance Analysis) technology. A small amount of weak current flows through the human body so as to detect the bio-impedance and estimate body fat, body water, muscle mass and CAL-MAX. The electrical current is small and may not be felt. -
Page 6: Select Measurement Unit
Initial Start-Up Initial Start-Up Pair-Up Select Measurement Unit With the advanced Bluetooth 4.0 technology applied, the mobile or portable equipments, which are equipped with Bluetooth function in line with BLE Technical Specifications With batteries correctly installed, press “UNIT” button in the back of the scale to select established by global organization Bluetooth SIG, are capable to receive your personal measurement unit. -
Page 7: Set Up Your Profile
3.Setting Goal Weight After confirming Gender, the system will divert to Goal Weight The body fat analyzer GBF-1319-B supports multiple users (Up to Eight). You may setting automatically. follow below instructions to assign User ID and set up your own profile, including Gender, As pictured below, the digits blinks. -
Page 8: Initialising Your Scale
(Range: AC 1 to AC 5 ) Your TRANSTEK Body Fat Analyzer will operate as a conventional You may press and hold the function key for fast changing weight - reading scale. No special programming steps are required. -
Page 9: Start Measuring
STEP 2: Stand still and keep full contact with the Daily Measurement electrodes until the LCD stops displaying moving “o”. With original SENSE ON patent technology, GBF-1319-B will automatically switch on as you step on the platform barefooted. Stand still and keep full contact with the electrodes until the LCD stops displaying moving “o”. -
Page 10: Data Transmission
When the system finds out two or more users with similar history records, it will notify you to choose With GBF-1319-B successfully pair-up with your between, for example, P1 and P2. You may press iPhone, the measurement data will be transmitted to key for P1 and or key for P2. -
Page 11: Troubleshooting
Troubleshooting Troubleshooting Error Prompt When Measuring ... Problem Root Cause Solution Error Description Solution Overload. The device will Stop using this scale for Please step on the platform Abnormal Incorrect posture power off in four seconds. measurement. barefooted and stand still. measuring results: - Too high;... -
Page 12: When Data Transmitting
Troubleshooting Troubleshooting When Data Transmitting ... Problem Solution Root Cause Problem Root Cause Solution Please keep barefooted during the measurement, and keep full Step onto the platform Turn ON the Bluetooth via contact with the electrodes as wearing socks or shoes. Bluetooth is OFF. -
Page 13: Specifications
Warranty Accuracy 100-150kg: ±0.5kg; 150-180kg: ±0.7kg Transtek warrants its products free of defects in materials and workmanship in normal Working Environment Temperature: 10℃ to 40℃ Humidity: 15%RH to 90% RH use for a period of TWO years from the date of retail purchase. -
Page 14: Fcc Regulations
FCC Regulations Appendix FCC Regulations FCC User Guide Information Table of Body Fat Level (Unit: %) Radio Frequency Interface Requirements - FCC Note: This equipment has been tested and found to comply with the limits for a Class B a) The body fat percentage (%): 5%-60%/0.1% digital device, pursuant to Part 15 of the FCC rules. -
Page 15: Muscle Mass Percentage
Therefore self-measuring and self-monitoring body fat level are beneficial to your health. Since we can’t judge body fat level simply by our weight, this body fat analyzer GBF-1319-B, with BIA (Bio-impedance Analysis) technology applied, is an accurate device that offers a quick and comfortable way to obtain your body fat level. - Page 16 Appendix Appendix Table 4 – Guidance and ’ declaration – electromagnetic – MANUFACTURER IMMUNITY Table 2 – Guidance and ’ declaration – electromagnetic – that are not MANUFACTURER IMMUNITY ME EQUIPMENT ME SYSTEMS LIFE SUPPORTING for all ME EQUIPMENT ME SYSTEMS Guidance and manufacturer’s declaration –...
- Page 17 Appendix Table 6 – Recommended separation distances between portable and mobile RF communications equipment and the – ME EQUIPMENT ME SYSTEM that are not ME EQUIPMENT ME SYSTEMS LIFE SUPPORTING Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
