8 direction receiving loops antenna system

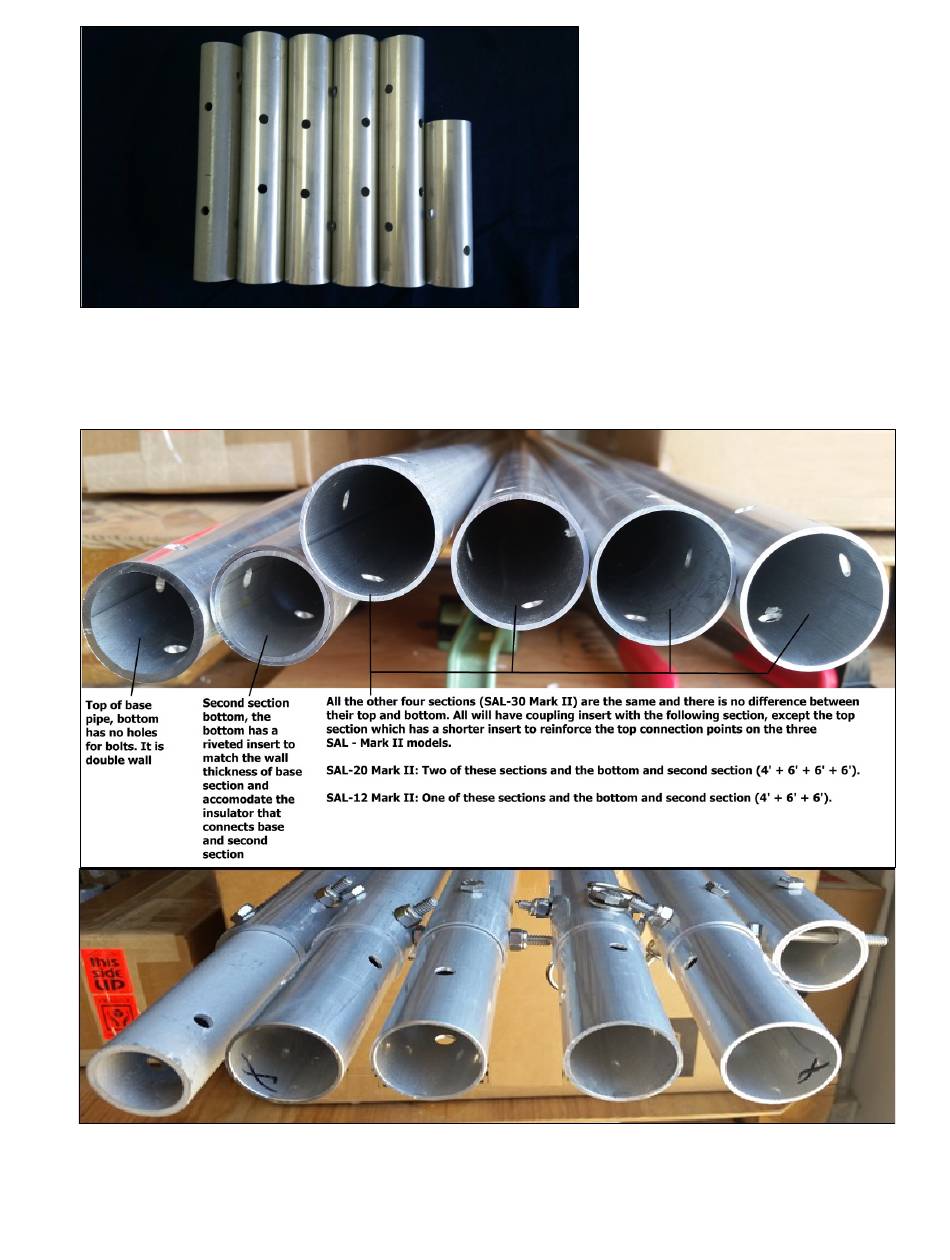

Coupling inserts. Leftmost is the fiberglass insulator for the top of the base mast section.

Short one is 4-3/4" (120 mm) for the top section. The rest are 7-1/8" (182 mm) long.

NOTE: SHORT COUPLER MAY BE PREINSTALLED IN TOP SECTION.

Mast sections with its coupling inserts attached at their tops. Note the two tie down "D"

rings for guy ropes at the top of the fourth section (SAL-30 Mark II only) and the shortest
