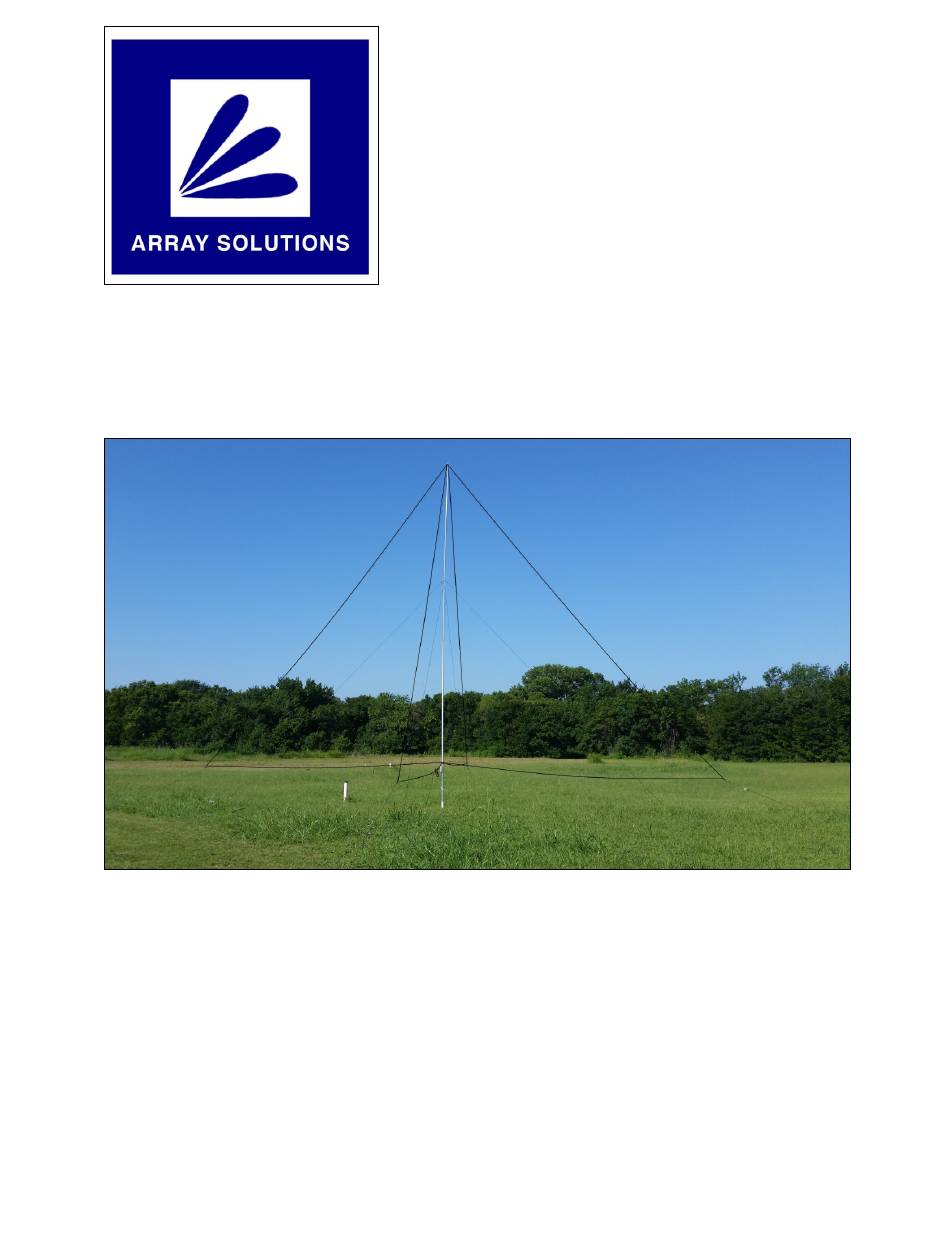

Model AS-SAL-12/20/30 - Mark II
8 Direction Receiving Loops Antenna System
Manufactured and marketed under United States Patent No. 8,350,776 and additional patent pending.
Introduction
The Array Solutions Shared Apex Loop™ Array (AS-SAL-12 Mark II, AS-SAL-20
Mark II, and AS-SAL-30 – Mark II) is an improved version of the new type of
receiving antenna that delivers exceptional directivity in a compact package and is
useable over a wide range of frequencies without need for adjustment. This array opens
the door to a new class of compact, high performance, wideband receiving antennas
developed for both amateur and professional users.
In 2009, Mark Bauman (KB7GF) developed a working model of the array to improve
his listening experience in a suburban neighborhood in southeast Washington State.
From testing, he found that the array provided exceptional bandwidth in a compact size
Array Solutions - SAL12/20/30 - Mark II Manual – Rev. 1.5.1 – September, 2018
Array Solutions
2611 North Belt Line Road
Suite # 109
Sunnyvale, TX 75182 USA
TEL 214-954-7140
FAX 214-954-7142
E-MAIL sales@arraysolutions.com
1
