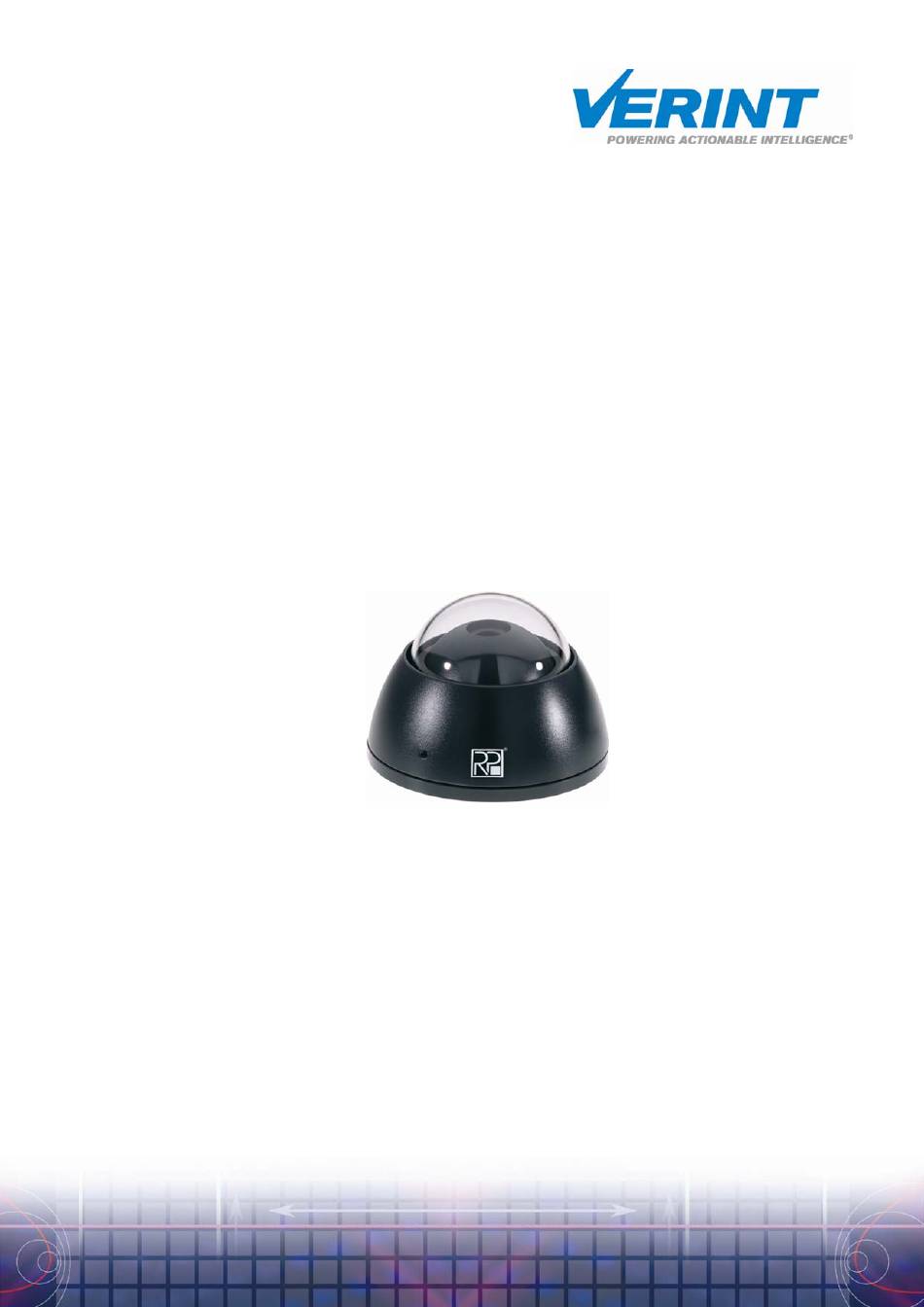

- Page 1 Mounting and Operating Instructions of RP406K and RP406K-IC for mobile video surveillance 12 / 2005...
- Page 2 Foreword Dear customer, By selecting a product from Verint Video Solutions GmbH you have purchased a professional device that ensures highest quality and reliability. Thank you for your confidence in our product. We would like to ask you to read through the following information carefully before you begin operating the device. This way you can completely enjoy all the benefits this product provides.
-
Page 3: Table Of Contents
Contents General Information ............................. 4 Product overview................................. 4 Security information ..............................4 EPlace of installation ..............................5 Scope of delivery ................................. 5 Accessories / additional devices..........................5 Warranty ..................................5 Installation ..............................6 System overview................................6 Detailed view................................6 Monunting ..................................7 Connecting diagram .............................. -
Page 4: General Information

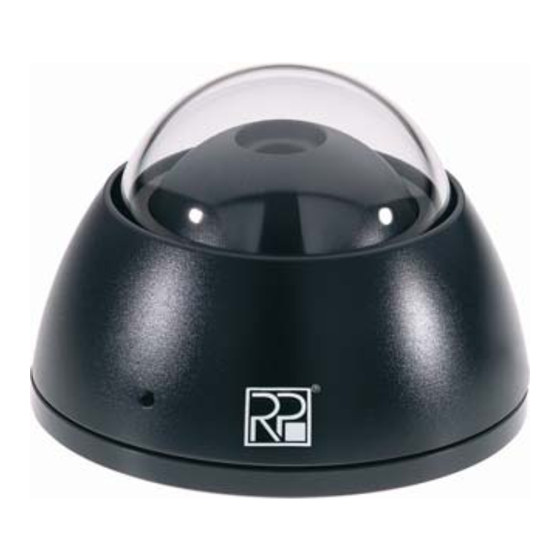

The RP 400 Series has a vandal-resistant mini dome housing that can be either wall or ceiling mounted. The RP 400 Series provides high-resolution pictures for day or night operation, and is available in a color or black and white model. -
Page 5: Eplace Of Installation
General Information Place of installation The camera is specially designed for video surveillance in busses and trains and fulfils the required European standards for public transport. Scope of delivery • High resolution vandalism-proof dome camera with fixed lens • connection cable •... -
Page 6: Installation
Installation System overview 12 V DC (recorder connection) Video signal (recorder connection) The RP 406K (-IC) dome camera needs a stabilized power supply of 12 V DC and has a power consumption of max. 2.0 W. Cable connections It is possible to lay separate cables for all connections. coaxial cable 75 Ω, (F)BAS, 1 Vss/75 Ω... -
Page 7: Monunting
Installation Mounting Information on camera mounting location • Keep an adequate distance to direct heat sources. • Do not point the camera towards artificial lighting, the sun, the sky or in the direction of a window. The best image quality will be achieved if both camera and lighting point to the area you want to record. •... - Page 8 Installation RP 406K • Fix the camera mounting plate on an adequate surface with the mounting materials that come in the shipment. The camera can be installed on a ceiling or wall. (Dimensions – see detailed view on page • Loosen the inside camera ball fixture ring and set the required viewing angle.
-
Page 9: Connecting Diagram
Installation Connecting diagram female: ar female PIN 1 GND cable length approx. 100cm PIN 2 +12 VDC PIN 3 Shield • Connect the video output signal of the camera (BNC jack) using a suitable video cable (insulated coaxial cable, 75 Ohm) to the designated video input of the recorder. Make sure that the BNC connector fits correctly and cleanly. -
Page 10: Appendix
Appendix Technical Data RP 406K (–IC) CCD Sensor 1/3“ Sony Exview Interline CCD Max. pixels (h x v) 768 x 576 Horizontal resolution 470 TV lines Sensitivity 0.015 lux on sensor / 0.3 lux with F2.0 TV standard PAL, 625 lines Enhancer Gamma correction 0,45... -
Page 11: Claening And Maintenance / Servicing Information
Appendix Cleaning and maintenance / Servicing information Before cleaning or servicing the camera, disconnect it from the power supply. Clean the camera housing with a dry or slightly moist cloth (add a few drops of dishwashing liquid). Never use organic solutions such as thinners, alcohols, petroleum products etc. for cleaning. The interior of the device should only be cleaned by customer service or by qualified professionals. -
Page 12: Technical Support
Appendix Technical support Should difficulties arise while installing or operating the device, we offer you technical support at +49 (0) 4321 269 81 36 or at mobilesupport@verint.com. -
Page 13: Notice
Notes... - Page 14 Notes...
- Page 15 Notes...
- Page 16 Configuration Verint Video Solutions GmbH Norderhofenden 12-13 D-24937 Flensburg Tel: +49 (0)461 – 14 15 90 Fax: +49 (0)461 – 14 15 9-10 Email: mobilesupport@verint.com Service hotline: +49 (0)4321 – 269 81 36...
