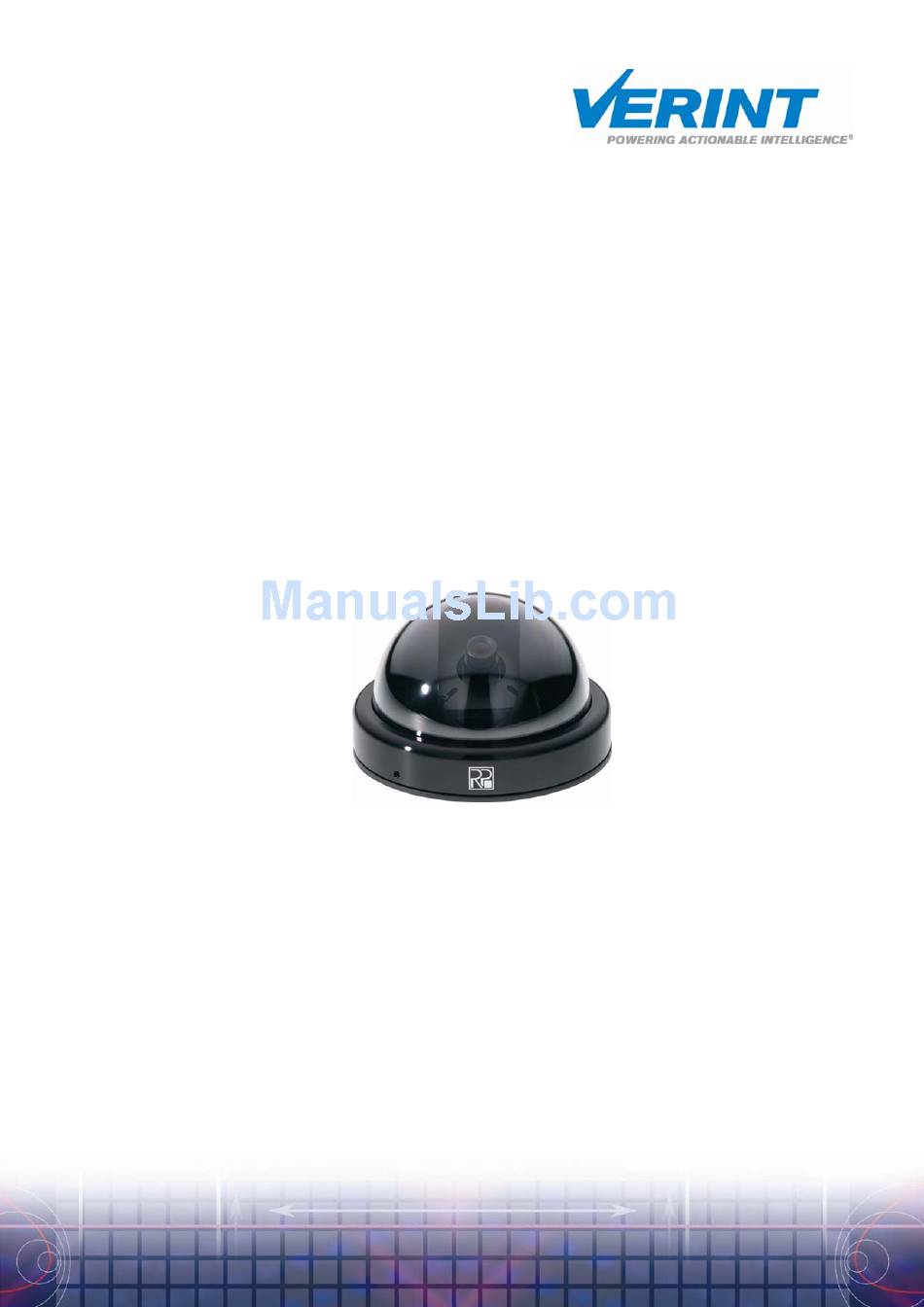

- Page 1 Mounting and Operating Instructions of the RP 500 Serie for mobile video surveillance 07 2005...
- Page 2 Dear Customer, By selecting a product of Verint Video Solutions GmbH, you have chosen a professional device that ensures the highest quality and reliability. We would like to thank you here again for putting your trust in us and ask that you read carefully the following information prior to operating the device so that you can fully enjoy all the advantages of this product.
-
Page 3: Table Of Contents
Contents General Information ............................. 4 Product overview................................. 4 Security information ..............................4 Place of installation ..............................5 Scope of delivery ................................. 5 Accessories / additional devices..........................5 Warranty ..................................5 Installation ..............................6 System overview................................6 Detailed view................................6 Monunting ..................................7 Connecting diagram .............................. -
Page 4: General Information
The housing has rounded edges to minimize the risk of injury to passengers. The cameras are designed to operate in very bright but also in dark places and under extreme weather conditions. The RP 500 Series meets common mobile transportation standards for Europe. -
Page 5: Place Of Installation
General information Place of installation The camera is specially designed for video surveillance in busses and trains and fulfils the required European standards for public transport. Scope of delivery • High resolution vandalism-proof dome camera with fixed lens (2.1mm; 2.9mm; 3.6mm; 4.3mm; 6.0mm;... -
Page 6: Installation
Installation System overview 12 V DC (connection on recorder) Video Signal (connection on recorder) The dome camera needs a stabilised power supply of 12 V DC and has a power consumption of max. 2.0 W. Cable connections It is possible to lay separate cables for all connections. coaxial cable 75 Ω, (F)BAS, 1 Vss/75 Ω... -
Page 7: Monunting
Installation Mounting Information on camera mounting location • Keep an adequate distance to direct heat sources. • Do not point the camera towards artificial lighting, the sun, the sky or in the direction of a window. The best image quality will be achieved if both camera and lighting point to the area you want to record. •... -
Page 8: Connecting Diagram
Installation / Initial Operation Connecting diagram Settings / configuration Set the angle Remove dome and fixing frame and detach screws from the camera module. Point camera module to the correct picture section and fix screws afterwards. Attach dome with fixing ring with screws and thighten with hexagon socket screw. -
Page 9: Appendix
Appendix Technical Data RP 505K / RP 506K CCD Sensor 1/3“ Sony Super HAD Interline CCD Max. pixels (h x v) 768 x 576 Horizontal resolution RP 505K: 570 TV lines RP 506K: 470 TV lines Sensitivity RP 505K: 0.0075 lux on sensor / 0.15 lux with F2.0 RP 506K: 0.015 lux on sensor / 0.3 lux with F2.0 TV standard PAL, 625 lines... - Page 10 Appendix Technical Data RP 506L CCD Sensor 1/3“ Sony Super HAD Interline CCD Max. pixels (h x v) 768 x 576 Horizontal resolution 470 TV lines Sensitivity 0.02 lux on sensor / 0.4 lux with F2.0 TV standard PAL, 625 lines Enhancer Gamma correction 0.45...
-
Page 11: Cleaning And Maintenance / Servicing Information
Appendix Cleaning and maintenance / servicing information Before cleaning or servicing the camera, disconnect it from the power supply. Clean the camera housing with a dry or slightly moist cloth (add a few drops of dishwashing liquid). Never use organic solutions such as thinners, alcohols, petroleum products etc. for cleaning. The interior of the device should only be cleaned by customer service or by qualified professionals. -
Page 12: Technical Support
Appendix Technical support Should difficulties arise while installing or operating the device, we offer you technical support at +49 (0) 4321 269 81 36 or at mobilesupport@verint.com . -
Page 13: Notes
Notes... - Page 14 Notes...
- Page 15 Notes...
- Page 16 Configuration Verint Video Solutions GmbH Norderhofenden 12-13 D-24937 Flensburg Tel: +49 (0)461 – 14 15 90 Fax: +49 (0)461 – 14 15 9-10 Email: mobilesupport@verint.com Service hotline: +49 (0)4321 – 269 81 36...
