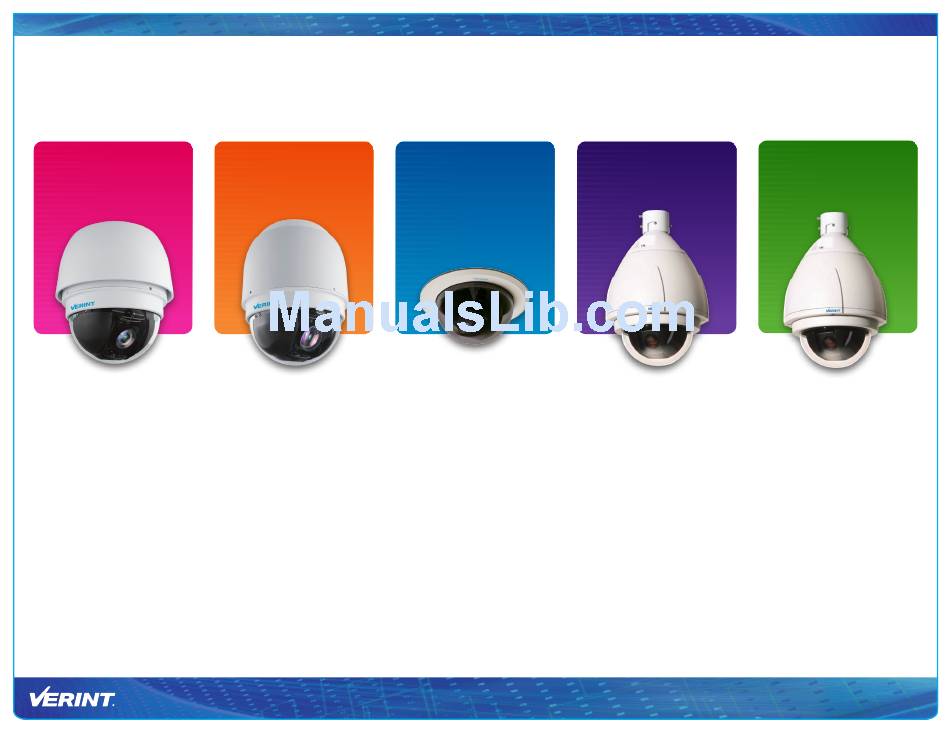

Verint Nextiva PTZ Camera Mounting Guide
This guide is a quick reference guide for users seeking
information on how to properly order a Verint Nextiva IP PTZ
system. This guide includes ordering matrices, pictures of all
Verint Nextiva IP PTZ cameras in their various mounting
configurations, and drawings of all Verint Nextiva IP PTZ
cameras and related mounting accessories.
The Following IP PTZ cameras are featured in this guide:

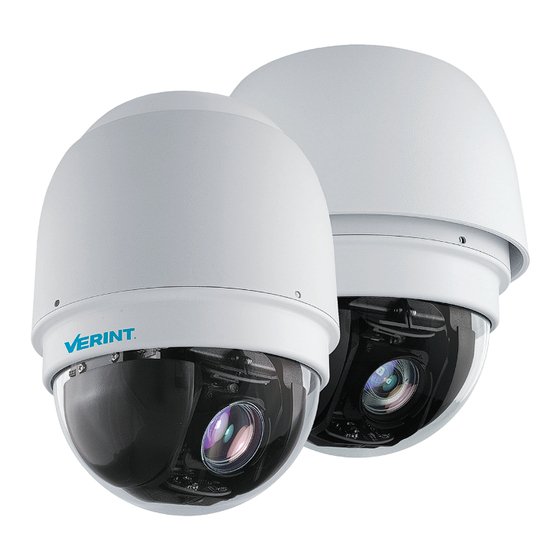

NEXTIVA
V5620PTZ-18ID-C
INDOOR
NEXTIVA
S5503PTZ-18X
RECESS MOUNT
PENDANT MOUNT
Verint has two separate IP PTZ systems today, the S5503PTZ
system which was introduced in 2010 and is a hybrid PTZ
system, and the V5620PTZ which was introduced in 2013 and is
a true IP-only 1080p High Definition PTZ system. Page 3 of this
document includes a chart to help you decide which of the
S5503PTZ or V5620PTZ is right for you.
Video and Situation Intelligence Solutions™
NEXTIVA
S5503PTZ-28X
PENDANT MOUNT
VERINT NEXTIVA IP CAMERA MOUNTING GUIDE
NEXTIVA
S5503PTZ-36X
PAGE 1
Advertisement
Related Manuals for Verint Nextiva
Summary of Contents for Verint Nextiva
- Page 1 This guide is a quick reference guide for users seeking Verint has two separate IP PTZ systems today, the S5503PTZ information on how to properly order a Verint Nextiva IP PTZ system which was introduced in 2010 and is a hybrid PTZ system.
- Page 2 The Verint Nextiva Solution ........
-
Page 3: Camera Comparison
• When you want to use PoE FEATURE V5620PTZ S5503PTZ RESOLUTION 1080p (2 MP) VGA (0.3 MP) OPTICAL ZOOM Up to 36X ANALOG OUT SERIAL CONTROL AUDIO STORAGE FULL RANGE OF MOUNTS VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 3... - Page 4 Example Part Number: V56 20 PTZ-18 DW -C V56 = V56 Series PTZ 20 = 1080p 2 MegaPixel Resolution PTZ = PAN/Tilt/Zoom 18 = 18x Optical Zoom DW = Outdoor Vandal Dome, ID = Indoor PTZ = Clear Dome VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 4...
- Page 5 V5620PTZ-18ID-C Indoor PTZ The Verint V5620PTZ-18ID-C surface mount indoor PTZ features 1080p 2 megapixel high definition performance, 18X optical zoom and the ability to be powered off of 802.3at Power- Over-Ethernet (PoE+). The V5620PTZ-18ID-C can be surface mounted on a hard ceiling, or with available adapters pendant mounted, recess mounted, wall mounted and corner mounted.
- Page 6 V5620PTZ-18DW-C Outdoor PTZ The Verint V5620PTZ-18DW-C pendant mount outdoor PTZ features 1080p 2 megapixel high definition performance, 18X optical zoom and a blower and heater for inclimate weather conditions. The included sunshield deflects the hot sun from the camera and also serves to keep water from dripping down the bubble surface. The V5620PTZ-18DW-C can be mounted pendant style, or with available adapters can be mounted to poles, wall mount or corner mount styles.
-
Page 7: Power Supply Options
Power Supply; 120VAC, 24 VAC Output; 3.13A-75VA; Output Screw Terminals; Include Mounting Blade For Electric Gang Box Transfo 230VAC-24VAC 105VA PS-24VAC-105-EU Power Adapter; 230VAC 50Hz Input, 24VAC 4.37A Output; Built-in Power Cord w/ Euro Plug; Stripped Tinned output wires; CE; RoHS VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 7... - Page 8 S5503PTZ 18X Indoor IP PTZ Camera The Verint S5503PTZ-18X Recess Mount IP PTZ is a standard definition (VGA) Commercial/Industrial pan-tilt-zoom camera system utilizing H.264 encoding. The 18X is the perfect drop-ceiling PTZ, suitable for retail, enterprise and casino operations. The 18X is indoor recess mount only, there are no other available mounting options for this model. For other mounting options, please refer to the 28X and 36X versions of the S5503PTZ.
- Page 9 Parapet Mount S5500PTZ-PR S5503PTZ-28DW-N-S + S5500PTZ-PR S5503PTZ-28DW-P-S Parapet Mount S5500PTZ-PR S5503PTZ-28DW-P-S + S5500PTZ-PR S5503PTZ-28DW-N-S Corner Mount S5500PTZ-CM / S5500PTZ-WM / S5500PTZ-PM S5503PTZ-28DW-N-S + S5500PTZ-CM + S500PTZ-WM + S5500PTZ-PM Images on page 11... VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 9...
- Page 10 Parapet Mount S5500PTZ-PR S5503PTZ-36DW-N-S + S5500PTZ-PR S5503PTZ-36DW-P-S Parapet Mount S5500PTZ-PR S5503PTZ-36DW-P-S + S5500PTZ-PR S5503PTZ-36DW-N-S Corner Mount S5500PTZ-CM / S5500PTZ-WM / S5500PTZ-PM S5503PTZ-36DW-N-S + S5500PTZ-CM + S500PTZ-WM + S5500PTZ-PM Images on page 11... VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 10...
- Page 11 CORNER MOUNT S5000PTZ-DWRM RECESS S5500PTZ-PR PARAPET S5500PTZ-WJ PARAPET GOOSENECK ADAPTER FOR 28DW & 36DW MOUNT FOR 28DW & 36DW ADAPTER FOR 28DW & 36DW NOTE: Not recommended for drop ceilings. Requires SUBSTANTIVE bracing. VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 11...
- Page 12 28X or 36X PS-24VAC-60-EU EU Power Supply, Linear, 230VAC In, 60Hz; 24VAC Out, 2.5A, 60VA; CE, ROHS 28X or 36X PS-24VAC-60-UK UK Power Supply, Linear, 230VAC In, 60Hz; 24VAC Out, 2.5A, 60VA; CE, ROHS VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 12...
-
Page 13: Tools Needed
The drawings that follow are also available upon request in both PDF and DWG form. information on tools. As a general rule, the following tools are required for installing Please contact your local Verint sales manager or Verint Customer Service if you Verint or other IP cameras: would like these drawings. - Page 14 Video and Situation Intelligence Solutions™ V5620PTZ Indoor 1080p PTZ Camera 85.9 mm [3.38 in] R125.0 mm [4.92 in] 90° R74.9 mm [2.95 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 14...
- Page 15 Video and Situation Intelligence Solutions™ V5620PTZ Outdoor 1080p PTZ Camera 192.0 mm [7.56 in] 192.0 mm [7.56 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 15...
- Page 16 Video and Situation Intelligence Solutions™ PM-V5620PTZ Pendant Mount 110.7 mm [4.36 in] QUARTER-TURN ADAPTER PLUG VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 16...
- Page 17 WM-V5620PTZ Wall Mount 104.0 mm [4.09 in] 348.0 mm [13.70 in] 81.0 mm [3.19 in] 8.4 mm [0.33 in] QUARTER-TURN ADAPTER WITH NON THREADED RECEPTACLE 52.0 mm [2.05 in] 45.2 mm [1.78 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 17...
- Page 18 31.5 mm [1.24 in] 24.0 mm [0.94 in] INTERNAL PIPE THREAD 0.75 IN NPT 25.5 mm [1.00 in] ISOMETRIC VIEW FOR REFERENCE SECTION A-A 12.7 mm [0.50 in] 8.5 mm [0.33 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 18...
- Page 19 Video and Situation Intelligence Solutions™ IC-V5620PTZ Recess Mount 155.39 166.11 VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 19...
- Page 20 7.0 mm [0.28 in] 67.0 mm [2.64 in] 8.5 mm [0.33 in] 50.0 mm [1.97 in] 98.5 mm [3.88 in] 190.0 mm [7.48 in] 26.0 mm [1.02 in] 232.0 mm [9.13 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 20...
- Page 21 Video and Situation Intelligence Solutions™ CM-V5620PTZ Corner Mount 190.0 mm [7.48 in] 98.5 mm [3.88 in] 67.0 mm [2.64 in] 17.0 mm [0.67 in] 222.0 mm [8.74 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 21...
- Page 22 Video and Situation Intelligence Solutions™ S5503PTZ-18ID Indoor 18X IP PTZ Camera 287.0 mm [11.30 in] 181.0 mm [7.13 in] 250.0 mm [9.84 in] 177.0 mm [6.97 in] 228.0 mm [8.98 in] REAR VIEW SCALE 1:4 VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 22...
- Page 23 Video and Situation Intelligence Solutions™ S5503PTZ-28DW & 36DW Outdoor 28X/36X IP PTZ Camera 57.0 mm [2.24 in] 216.6 mm [8.53 in] 177.0 mm [6.97 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 23...
- Page 24 Video and Situation Intelligence Solutions™ S5500PTZ-WM — Wall Mount for the S5503PTZ 28DW & 36DW 140.0 mm [5.51 in] 108.0 mm [4.25 in] 246.0 mm [9.69 in] 10.0 mm [0.39 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 24...
- Page 25 20 [0.79] 174 [6.85] 80 [3.15] 20 [0.79] 108 [4.25] 10 [0.39] 44 [1.73] 50 [1.97] 260 [10.24] 12 [0.47] 40 [1.57] 165 [6.50] 5 [0.20] 6 [0.24] 58 [2.28] 100 [3.94] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 25...
- Page 26 All measurements are in mm with inches shown in [brackets]. 260 [10.24] 20 [0.79] 110 [4.33] 10 [0.39] 20 [0.79] 10 [0.39] 34 [1.34] 40 [1.57] 44 [1.73] 6 [0.24] 17 [0.67] 80 [3.15] 165 [6.50] 60 [2.36] 220 [8.66] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 26...
- Page 27 Video and Situation Intelligence Solutions™ S5500PTZ-DWRM — Recess mount for the S5503PTZ 28DW & 36DW **NOTE: Not recommended for drop ceilings. Requires substantive bracing** VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 27...
- Page 28 Video and Situation Intelligence Solutions™ S5500PTZ-PR — Parapet Mount for the S5503PTZ 28DW & 36DW 437 mm [17.20 in] 9 mm [0.35 in] 240 mm [9.45 in] 280 mm [11.02 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 28...
- Page 29 S5500PTZ-WJ — Wall Mount Bracket with Junction Box for the S5503PTZ 28DW & 36DW 236 mm [9.29 in] 350 mm [13.78 in] 174 mm [6.85 in] 12 mm [0.47 in] 111 mm [4.37 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 29...
- Page 30 PB-S50FDW - Pendant head kit. Compatible with PP-S50FDW or any 1.5” G male threaded pipe 98.3 mm [3.87 in] 78.0 mm [3.07 in] 7.0 mm [0.28 in] 139.0 mm [5.47 in] 160.0 mm [6.30 in] ISOMETRIC VIEW PIPE THREAD G 1-1/2 89.6 mm [3.53 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 30...
- Page 31 PP-S50FDW - Pipe kit. Compatible with PM-S50FDW and PB-S50FDW 50.8 mm [2.00 in] 40.8 mm [1.61 in] M6 SET-SCREW PIPE THREAD G 1-1/2 175.0 mm [6.89 in] ISOMETRIC VIEW PIPE THREAD G 1-1/2 200.0 mm [7.87 in] VERINT NEXTIVA IP CAMERA MOUNTING GUIDE PAGE 31...
- Page 32 Features listed in this document are subject to change. Please contact Verint for current product features and specifications. All marks referenced herein with the ® or TM symbol are registered trademarks or trademarks of Verint Systems Inc. or its subsidiaries. All rights reserved. All other marks are trademarks of their respective owners.
